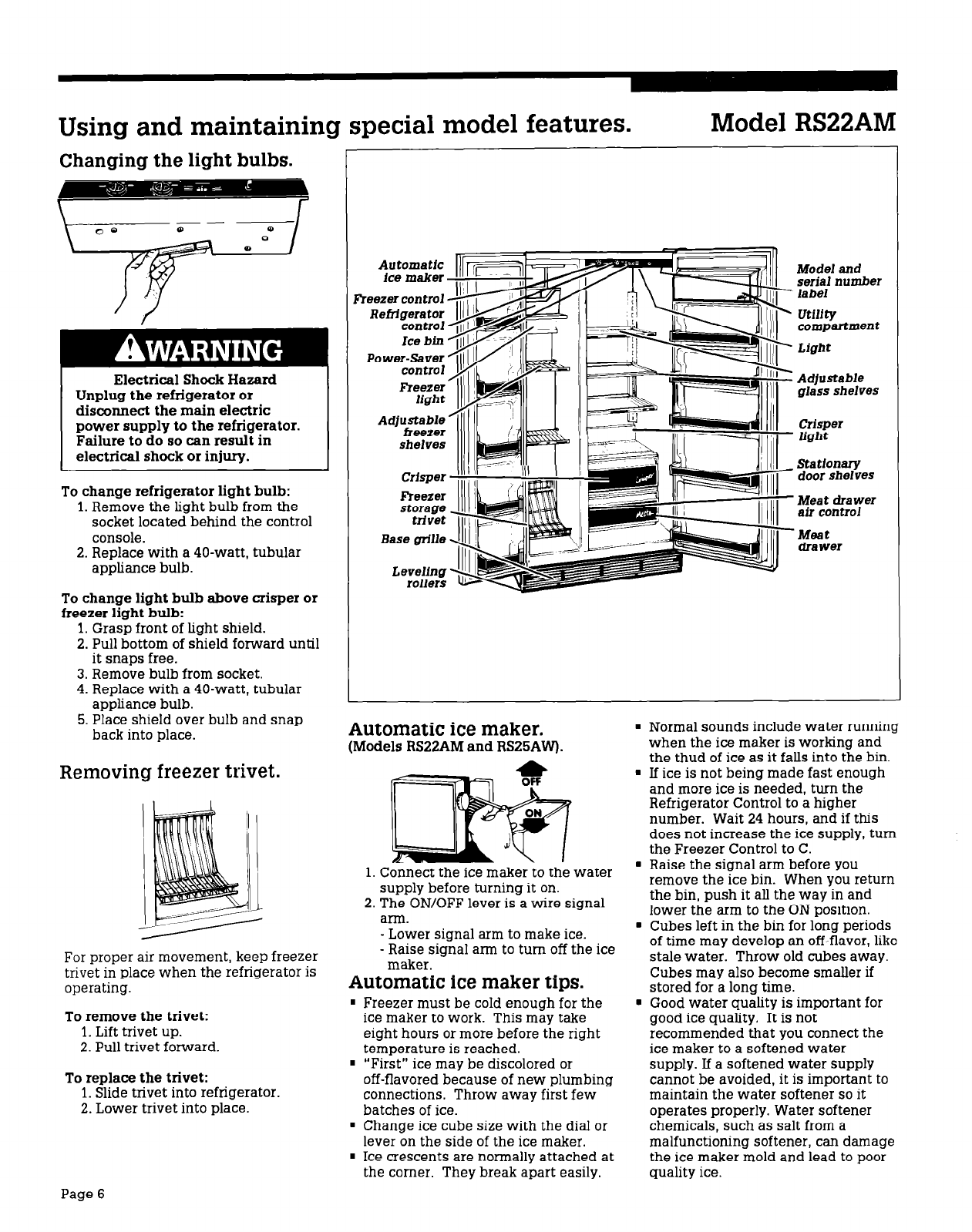

Using and maintaining special model features.
Model RS22AM
Changing the light bulbs.
Electrical Shock Hazard
Unplug the refrigerator or
disconnect the main electric
power supply to the refrigerator.
Failure to do so can result in
electrical shock or injury.
To change refrigerator light bulb:
1. Remove the light bulb from the
socket located behind the control
console.
2. Replace with a 40-watt, tubular
appliance bulb.
To change light bulb above crisper or
freezer light bulb:
1. Grasp front of light shield.
2. Pull bottom of shield forward until
it snaps free.
3. Remove bulb from socket.
4. Replace with a 40-watt, tubular
appliance bulb.
5. Place shield over bulb and snap
back into place.
Removing freezer trivet.
For proper air movement, keep freezer
trivet in place when the refrigerator is
operating.
To remove
the trivet:
1. Lift trivet up.
2. Pull trivet forward.
To replace the trivet:
1. Slide trivet into refrigerator.
2. Lower trivet into place.
R
Automatic
ice maker
‘eezer control
Remm-;go;
Ice bin
PO wer-Sa ver
control
Freezer
light
Adjustable
freezer
shelves
Crisper
Freezer
storage
trivet
Base grille
Leveling
rollers
Model and
serial number
label
utility
compartment
Light
Adjustable
glass shelves
Crisper
light
Statfonary
door she1 ves
Meat
drawer
air control
Meat
drawer
Automatic ice maker.
(Models RS22AM and RS25AW).
1. Connect the ice maker to the water
supply before turning it on.
2. The ON/OFF lever is a wire signal
arm.
- Lower signal arm to make ice.
- Raise signal arm to turn off the ice
maker.
Automatic ice maker tips.
. Freezer must be cold enough for the
ice maker to work. This may take
eight hours or more before the right
temperature is reached.
. “First” ice may be discolored or
off-flavored because of new plumbing
connections. Throw away first few
batches of ice.
. Change ice cube size with the dial or
lever on the side of the ice maker.
. Ice crescents are normally attached at
the comer. They break apart easily.
. Normal sounds include water running
when the ice maker is working and
the thud of ice as it falls into the bin.
. If ice is not being made fast enough
and more ice is needed, turn the
Refrigerator Control to a higher
number. Wait 24 hours, and if this
does not increase the ice supply, turn
the Freezer Control to C.
n
Raise the signal arm before you
remove the ice bin. When you return
the bin, push it all the way in and
lower the arm to the ON position.
n
Cubes left in the bin for long periods
of time may develop an off-flavor, like
stale water. Throw old cubes away.
Cubes may also become smaller if
stored for a long time.
. Good water quality is important for
good ice quality. It is not
recommended that you connect the
ice maker to a softened water
supply. If a softened water supply
cannot be avoided, it is important to
maintain the water softener so it
operates properly. Water softener
chemicals, such as salt from a
malfunctioning softener, can damage
the ice maker mold and lead to poor
quality ice.
Page 6
