8

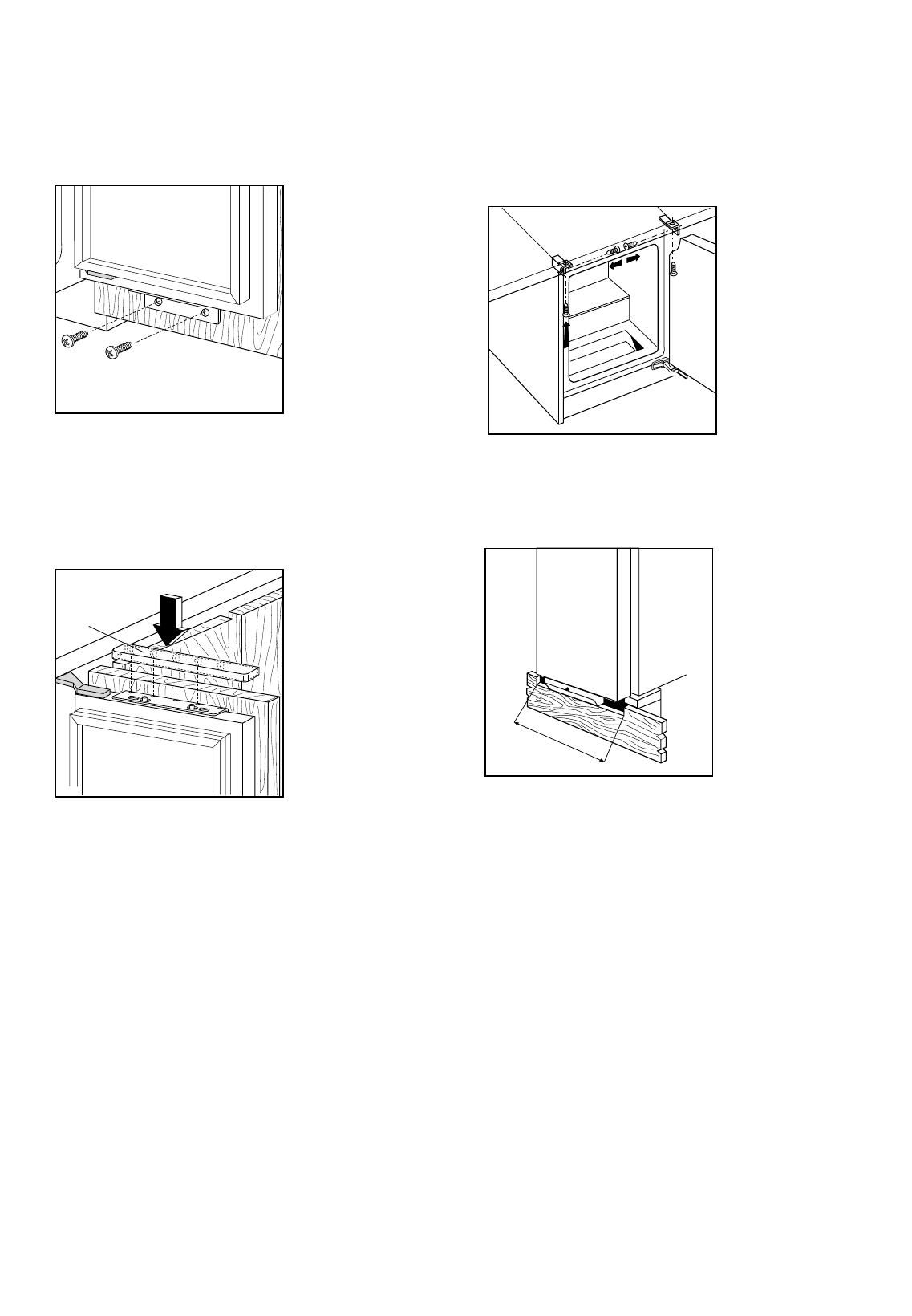

Once the top of the panel has been correctly
positioned, fix it through the holes in the bottom
bracket, without tightening the screws (Fig. 10).
Fig. 10
Check the position again by slackening the screws
and pins then, once the best position has been
obtained, fully tighten all the fixings.
Cover the visible part of the top bracket on the
panel with plastic cover (D), inserting it in the
locations provided in the bracket.
Fig. 11
D471
D472
D
Once the door has ben correctly aligned, tighten the
holding nuts on the fixing brackets and attach the
appliance to the adjacent units and the bottom of
the work surface (Fig. 12).
Fig. 12
For a correct installation operation if the base plate
is more than 100 mm (for cavity height 820 mm) or
more than 150 mm (for cavity height 870 mm) you
must cut out the plate as shown in Fig. 13.
Fig. 13
D517
450
D593
