Monitoring
4-19
Monitoring Activity and Errors Statistics
Quick Config Manager allows you to display the total
network activity and errors seen by a port or the hub
(all ports) in any one time period.
To display the Activity/Errors graph for a port:
1
Double-click on the port for which you want to
display the Activity/Errors graph.
2
In the Port dialog box, choose the
Info
category.
3
In the Repeater Port Info panel, select the
Activity
check box.
4
Click on
OK
.
To display the Activity/Errors graph for the hub:
From the
View
menu, select
Activity/Errors
.
Quick Config Manager displays the Activity/Errors
graph, as shown in
Figure 4-7
.

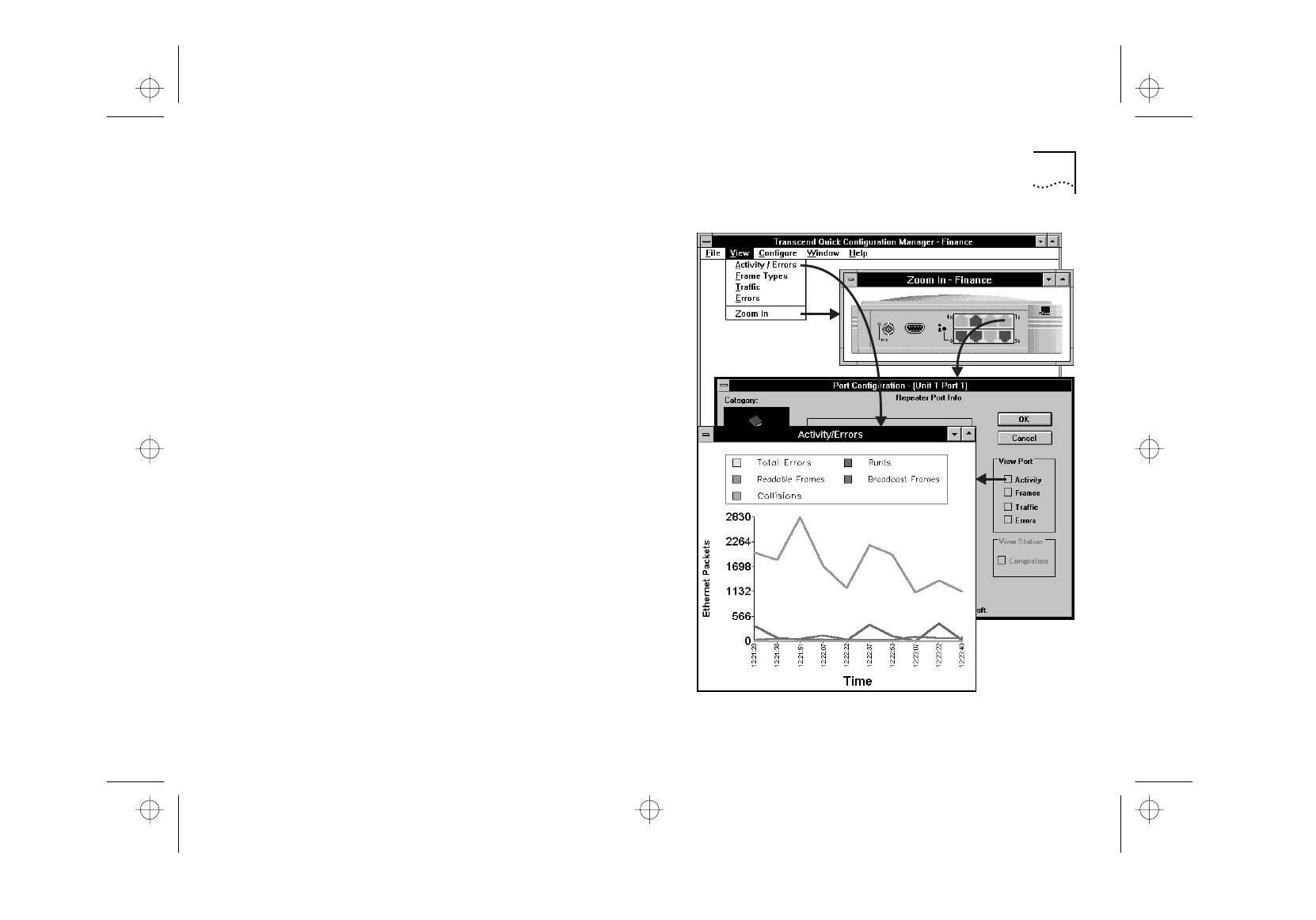

Figure 4-7
Activity/Errors Graph
