3.5 Parallel Port
The printer interface is a 25-pin D-SUB connector. To connect any
parallel device, just plug in the device connector to the 25-pin D-SUB.
3.6 VGA
The PANEL PC 1000 has an analog RGB interface connector. It is
able to connect to an expansion CRT monitor, and the system can
display on both the flat panel and the CRT simultaneously.
3.7 Ethernet
The PANEL PC 1000 provides an NE2000 compatible Ethernet
(RJ-45) interface. For network connection, just plug in one cable end
of the PANEL PC 1000 100-Base-T Hub into the standard Ethernet
phone jack. The pin assignment of the RJ-45 is listed below;
RJ-45
1
234567
8

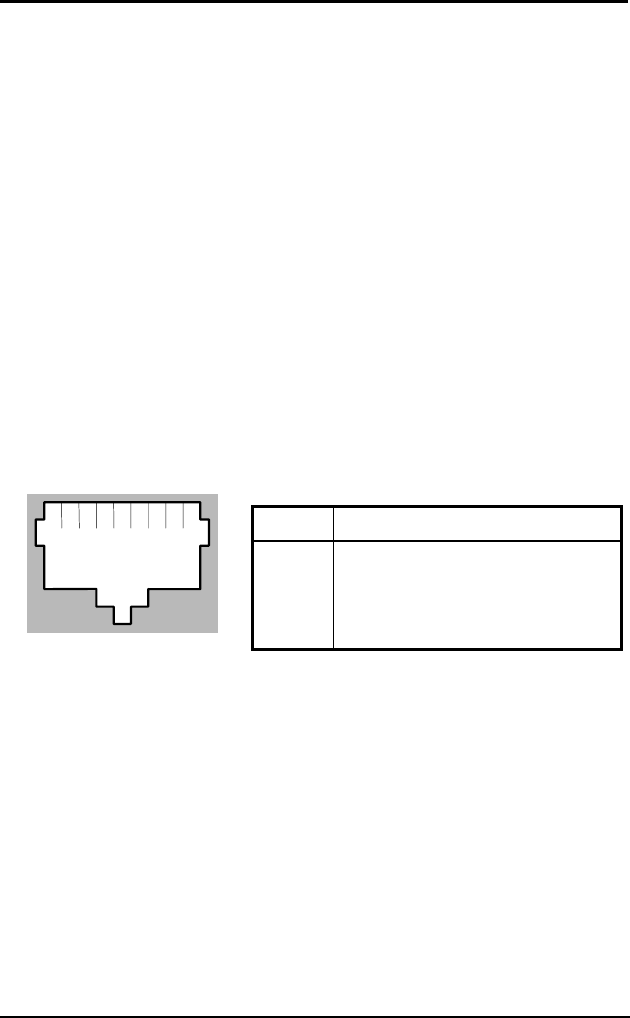

RJ-45 Connector Pin Assignment
Pin Description
1
2
3
6
others
Tx+ (Data transmission positive)
Tx- (Data transmission negative)
Rx+(Data reception positive)
Rx- (Data reception negative)
Not use
