Administration | File Management | Swap Configuration Files
This screen lets you swap the boot configuration file with the backup configuration file. Every time you
save the active configuration, the system writes it to the
CONFIG file, which is the boot configuration
file; and it saves the previous
CONFIG file as CONFIG.BAK, the backup configuration file.
To reload the boot configuration file and make it the active configuration, you must reboot the system.
When you click
OK, the system automatically goes to the Administration | System Reboot screen, where you
can reboot the system. You can also click the highlighted link to go to that screen.

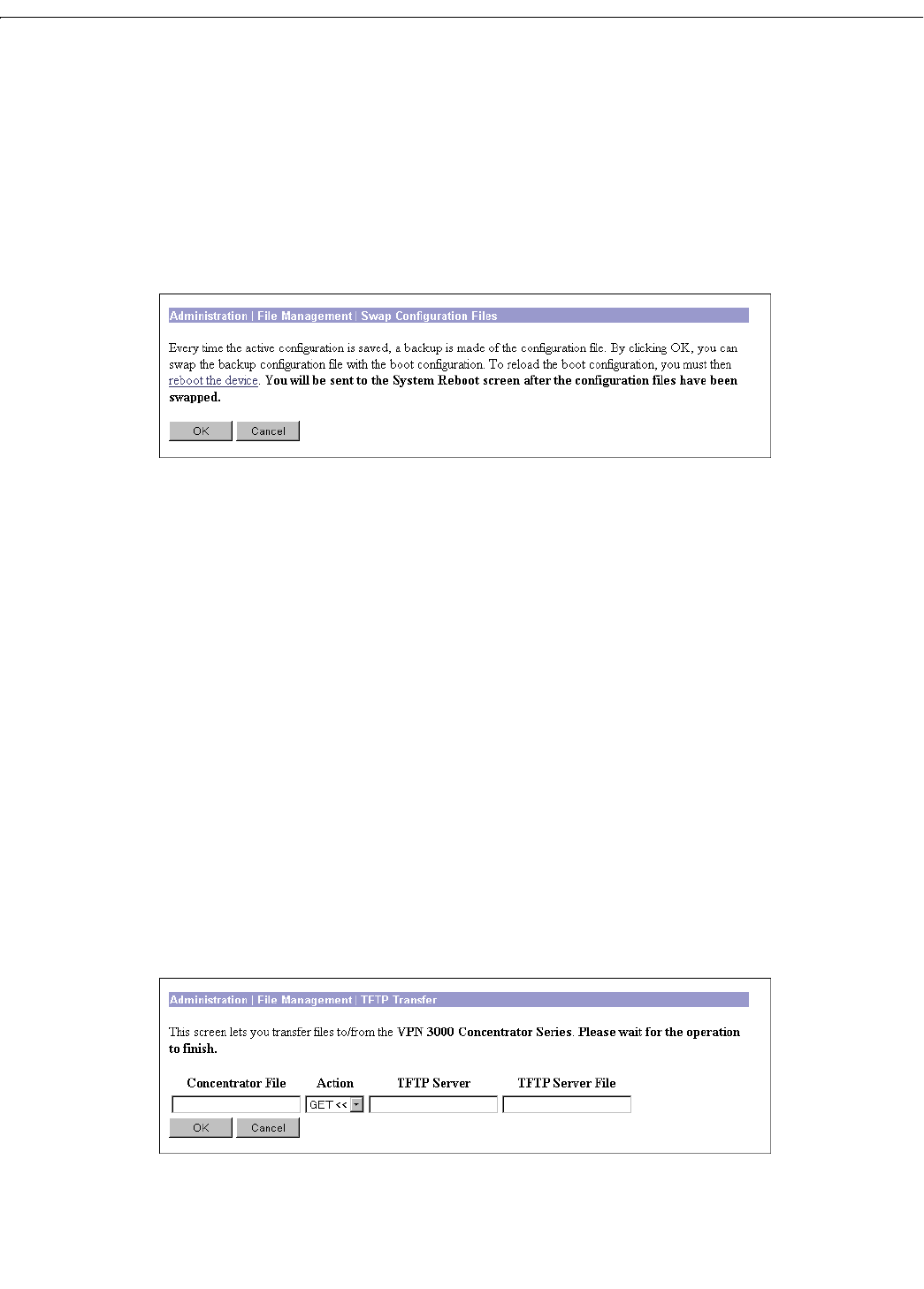

Figure 14-29: Administration | File Management | Swap Configuration Files screen
OK / Cancel
To swap CONFIG and CONFIG.BAK files, click OK. The Manager goes to the Administration | System
Reboot
screen.
To leave the files unchanged, click
Cancel. The Manager returns to the Administration | File Management
screen.
Administration | File Management | TFTP Transfer
This screen lets you use TFTP (Trivial File Transfer Protocol) to transfer files to and from VPN
Concentrator flash memory. (Flash memory acts like a disk.) The VPN Concentrator acts as a TFTP
client for these functions, accessing a TFTP server running on a remote system. All transfers are made
in binary (octet) mode, and they copy—rather than move—files.
To use these functions, you must have
Access Rights to Read/Write Files. See the Administration | Access
Rights | Administrators | Modify Properties
screen.
You can list, view, and manage VPN Concentrator files on the
Administration | File Management | Files
screen.
Figure 14-30: Administration | File Management | TFTP Transfer screen
