STK12C68-5 (SMD5962-94599)
Document Number: 001-51026 Rev. ** Page 13 of 18
Hardware STORE Cycle
Parameter Alt Description
STK12C68-5
Unit
Min Max
t
STORE
[9, 14]
t
HLHZ
STORE Cycle Duration 10 ms
t
DHSB
[14, 19]
t
RECOVER,
t
HHQX
Hardware STORE High to Inhibit Off 700 ns
t
PHSB
t
HLHX
Hardware STORE Pulse Width 15 ns
t
HLBL
Hardware STORE Low to STORE Busy 300 ns
Switching Waveform

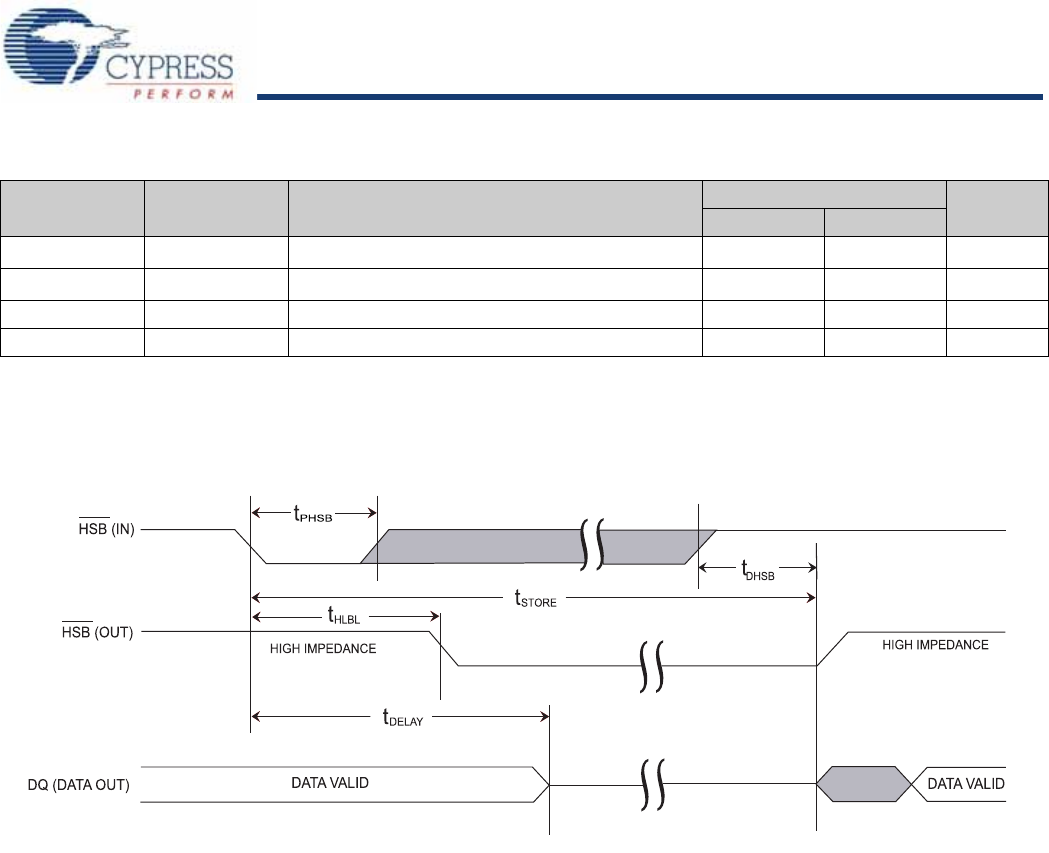

Figure 14. Hardware STORE Cycle
Note
19.t
DHSB
is only applicable after t
STORE
is complete.
