Installation Instructions
IMPORTANT: Install the grates as instructed below for
longest life. When installed properly, the openings in the
grates are centered over the burners.

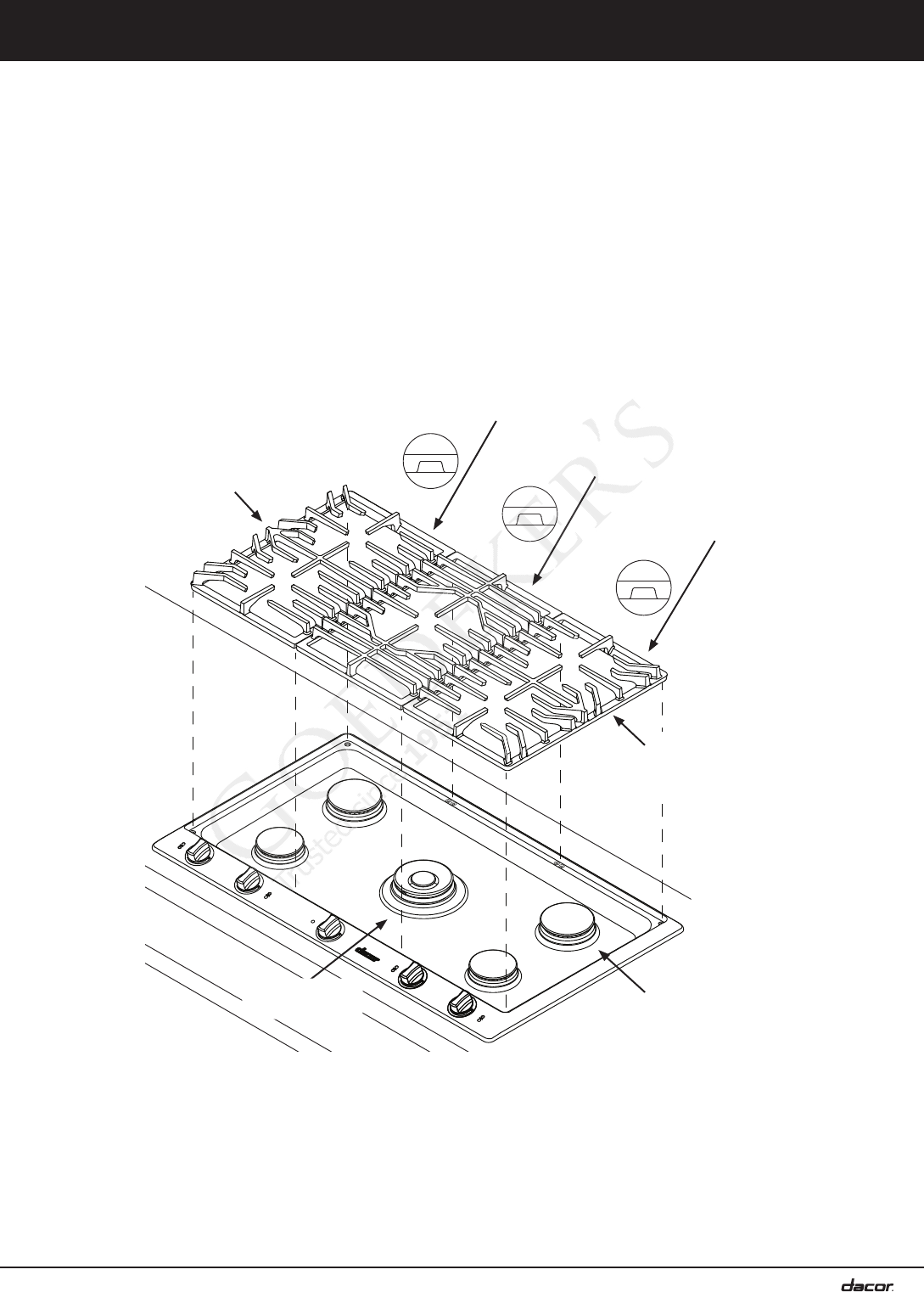

3. Locate the notch on the bottom of each grate.
4. Use the notch on the bottom of each grate to determine
location and orientation. See diagram below. The notch
on the bottom of each grate goes towards the back of
the cooktop. The notches on the left and right grates go
toward the outside.
5. Gently lower the legs of each grate into the corre-
sponding dimples on the cooktop.
NOTE: Burner and grate size vary with model
SimmerSear™
burner
Standard
burner
Left grate,
curved fingers
on left
Center grate -
Notch on bottom
toward back
Notch on bottom
toward back
Notch on
bottom toward
back
Right grate,
curved fingers on
right
