Specifications and Dimensions
Tolerances: +1/16” (1.6 mm) -0, unless otherwise stated.
Number of fan speeds Infinite
Filters
Mesh type, dishwasher safe
(Optional baffle type available,
order part number AHBF2)
Exhaust 8-inch
Total Connected Load
120 Vac, 60 Hz., 2 Amp. Max.
(10.0 Amp Max. surge)
Lights 120 Vac, 75 W halogen
Number of lights 2
Number of filters 2
Exhaust Outputs 1
Fan Rating
340 CFM @ high setting*
275 CFM @ low setting*
Weight
DH3006S: 31 lbs. (14.1 kg)
DH3606S: 34 lbs. (15.4 kg)
* At zero inches static pressure. Tested with 20 feet of
straight duct. Consult your local building department for any
make up air requirements.
Model Dimension (A)
DH3006S 29 7/8” (75.9 cm)
DH3606S 35 7/8” (91.1 cm)
Product Specifications
11 7/8 ”
(30.2 cm)
A
6”
(15.2 cm)
23 5/8”
(60.0 cm)

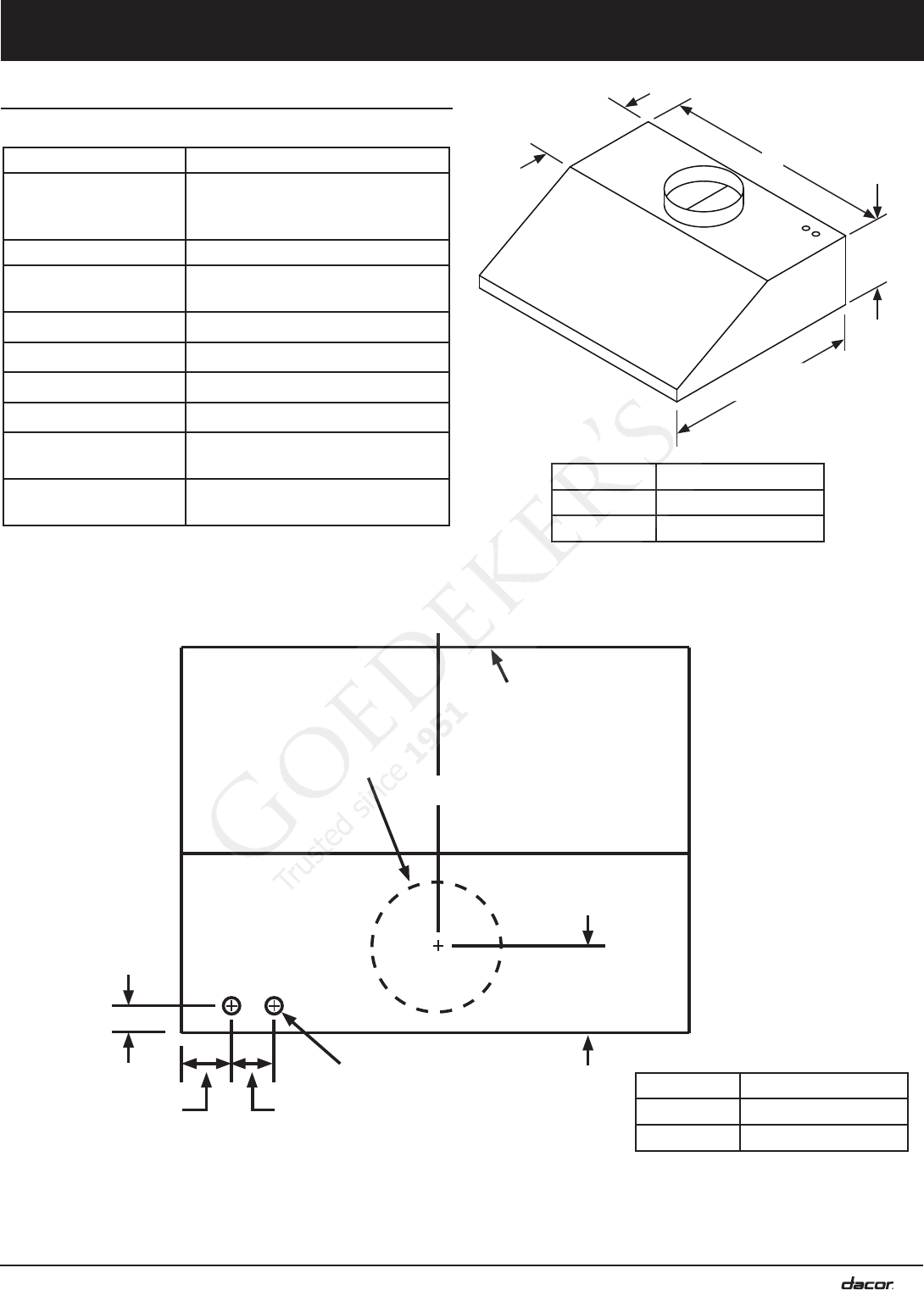

Overall Dimensions
NOTE: The exhaust duct and electrical wiring are connected from the top of the hood.
Standard 8” duct
connection
Front of
hood
1 1/2”
(3.8 cm)
3”
(7.6 cm)
B
6 1/8
”
(15.6 cm)
Electrical access holes,
7/8” dia. (5.1 cm)
C
L
Top Dimensions
Model Dimension (B)
DH3006S 4 1/8” (10.5 cm)
DH3606S 6 9/16” (16.7 cm)
