5
The electrical requirements are a 120 volt 60 Hz, AC
only, 15 amp. or more protected electrical supply. It is
recommended that a separate circuit serving only this
appliance be provided.
The drawer is equipped with a 3-prong grounding plug.
It must be plugged into a wall receptacle that is properly
installed and grounded. Should you only have a 2-prong
outlet, have a qualified electrician install a correct wall
receptacle.
NOTE:
If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or service
person.
4"
5"
electrical outletlocation
2x4 Anti-
Tip block
(6")

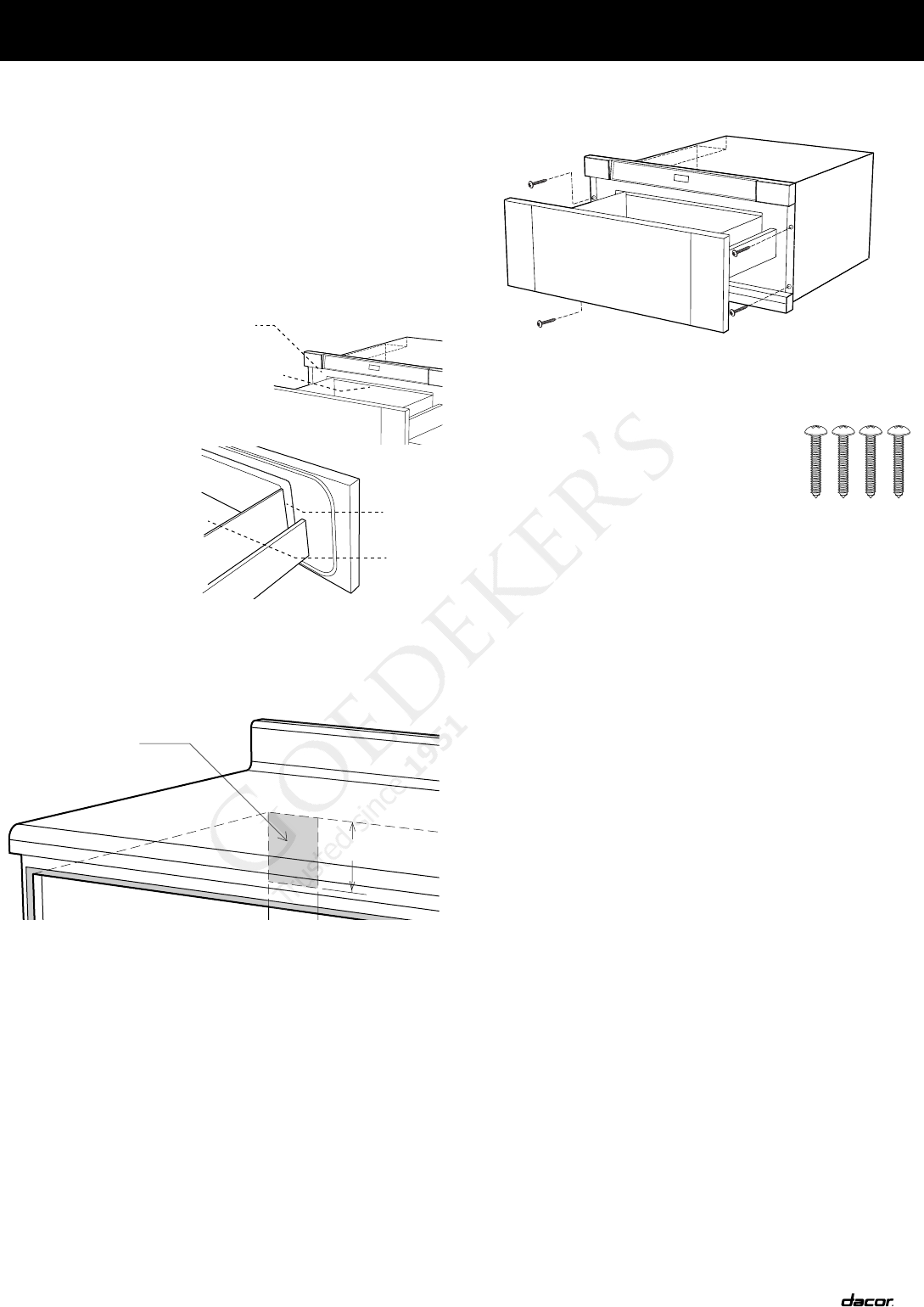

Figure 6
InstallatIon InstructIons
ELECTRICAL OUTLET
Figure 7A
1. Place the drawer adjacent to the wall
or cabinet opening. Plug the power
supply cord into the electrical outlet.
2.
Carefully guide the drawer into the
prepared opening. Avoid pinching the
cord between the oven and the wall.
3.
Slide the drawer all the way until the
mounting flange is flush with the face of the cabinet.
4. Open the drawer. Using the 4 holes on the drawer as
a template, predrill the cabinet using a 1/16" bit. See
Figure 7A.
5.
Secure the drawer with the 4 screws supplied. See
Figure 7B.
Figure 7B
BEFORE YOU CALL FOR SERVICE
Read the BEFORE YOU CALL and operating instruction
sections in your use and care manual. It may save you time
and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in
this range.
Refer to the warranty in your use and care manual for
Dacor’s toll-free service number and address. Please call
or write if you have inquiries about your microwave product
and/or need to order parts.
DRAWER INSTALLATION
• Remove all packing materials from inside the drawer.
DO NOT REMOVE THE WAVEGUIDE COVER, which
is located on the top of the Microwave In-A-Drawer™.
• Remove
the feature sticker, if there is one. Check the
drawer for any damage, such as misaligned or bent
drawer, damaged drawer seals and sealing surfaces,
broken or loose drawer guides and dents inside the
cavity or on the front side of the drawer. If there is
any damage, do
not operate the
Microwave In-
A-Drawer™ and
contact your dealer
or a DACOR
AUTHORIZED
SERVICER.
VERIFYING PACKAGE CONTENTS
Waveguide
Cover
Sealing
Surface
Oven
Cavity
Sealing
Surface
Figure 5
