A

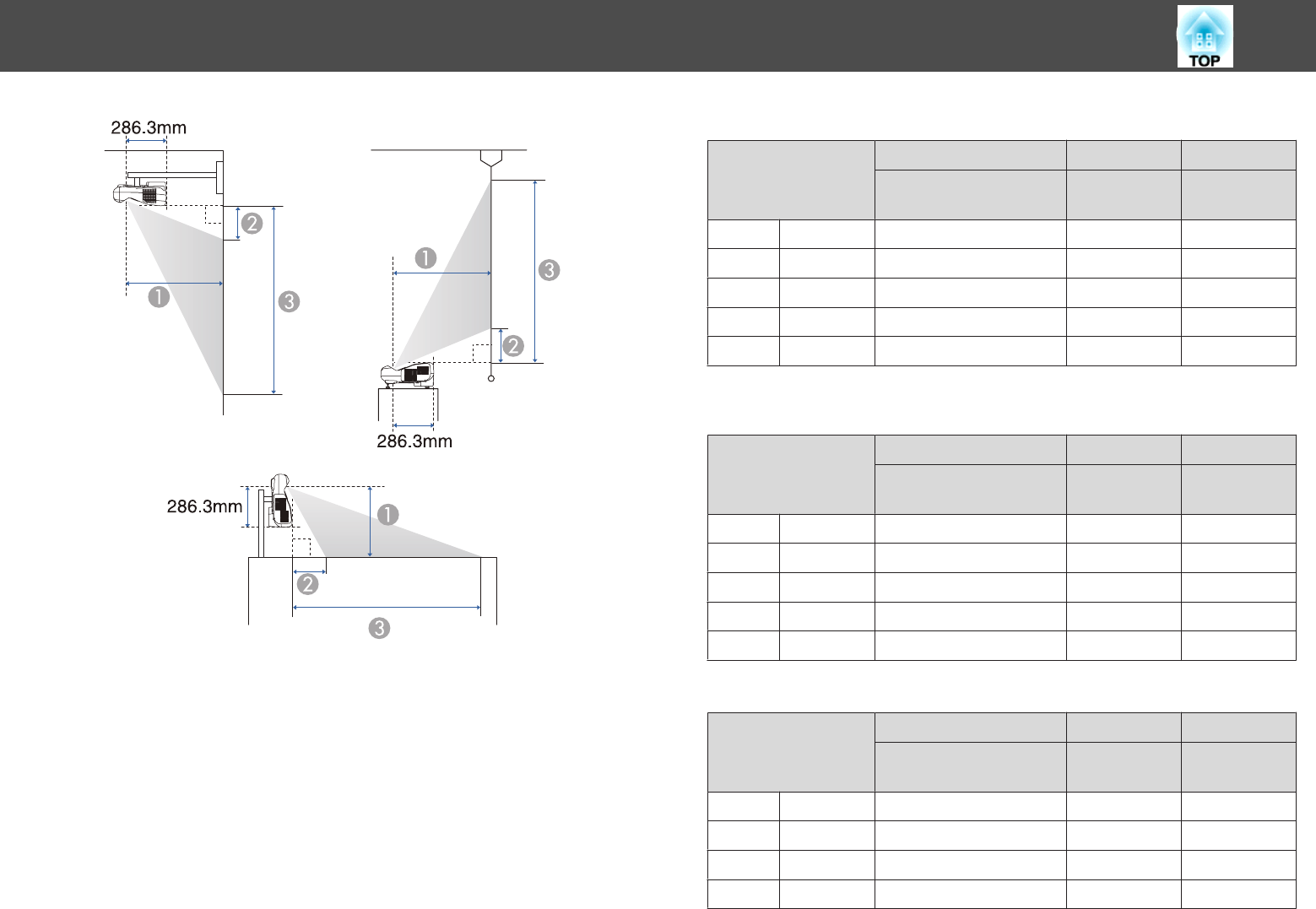

Projection distance
B
The distance between the projector and the top of the screen (when
mounting on a wall or ceiling, or installing vertically)
The distance between the projector and the bottom of the screen (when
placing on a surface such as a desk)
C
The distance between the projector and the bottom of the screen (when
mounting on a wall or ceiling, or installing vertically)
The distance between the projector and the top of the screen (when placing
on a surface such as a desk)
Unit: cm
16:10 Screen Size
ABC
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
60" 129x81 35 - 48 9 90
70" 151x94 41 - 56 12 106
80" 172x108 47 - 60 14 122
90" 194x121 53 - 60 17 138
100" 215x135 60
*
20 154
* Project using Wide (maximum zoom).
Unit: cm
4:3 Screen Size
ABC
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
53" 108x81 35 - 48 9 90
60" 122x91 40 - 55 11 103
70" 142x107 47 - 60 14 121
80" 163x122 54 - 60 17 139
88" 179x134 59 - 60 20 154
Unit: cm
16:9 Screen Size
ABC
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
59" 131x74 35 - 48 13 87
60" 133x75 36 - 49 14 88
70" 155x87 42 - 58 17 104
80" 177x100 49 - 60 21 120
Screen Size and Projection Distance
