• You cannot adjust the image position when Zoom is set to the
maximum Wide position.
• The Image Shift setting is retained even if the projector is turned off.
You need to re-adjust the position if you change the installation
location or angle of the projector.
• You can also use the Configuration menu to adjust the position of
the image.
s Settings - Image Shift p.178
Adjusting the Vertical Position of the Image
(Models Supplied with the Feet Only)
Extend the feet. You can adjust the vertical position of the image by tilting
the projector up to 1.5˚.
a
The larger the angle of tilt, the harder it becomes to focus. Install the
projector so that it only needs to be tilted at a small angle.

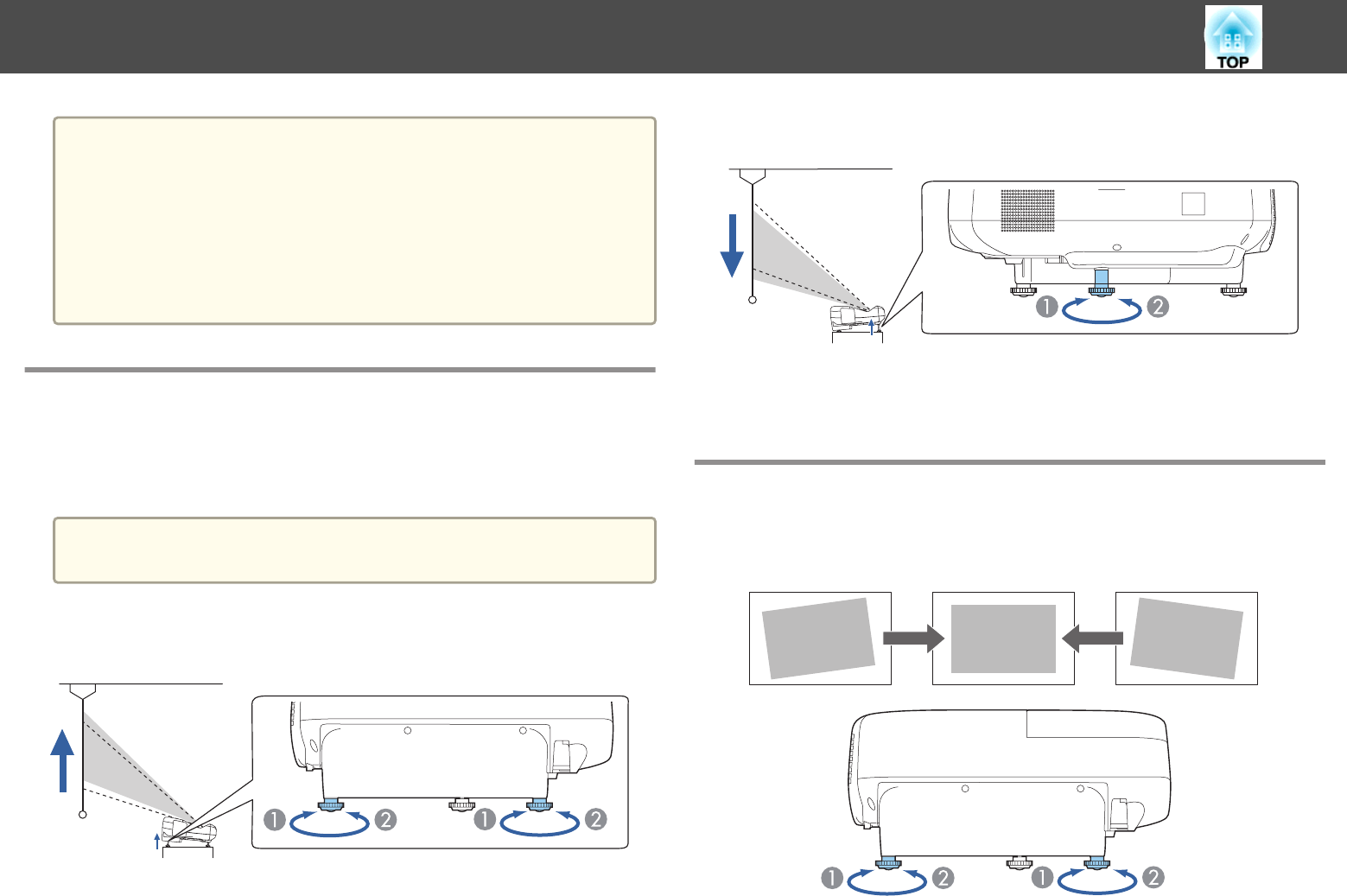

Raising the Height of the Image
A
You can raise the height of the image by extending the rear feet.
B
Retract the rear feet to return the image to its original height.
Lowering the Height of the Image
A
You can lower the height of the image by extending the front foot.
B
Retract the front foot to return the image to its original height.
Adjusting the Horizontal Position of the Image
(Models Supplied with the Feet Only)
Extend and retract the rear feet to adjust the projector's horizontal tilt.
A
Extend the rear foot.
