31. USB Interface
31.1. Specification
The port to the PC is a USB 2.0, which operates with the following characteristics: USB 2.0
with drivers for Microsoft™ Windows 2000™, Windows 2003™, Windows XP™, Windows Vista™
or better.

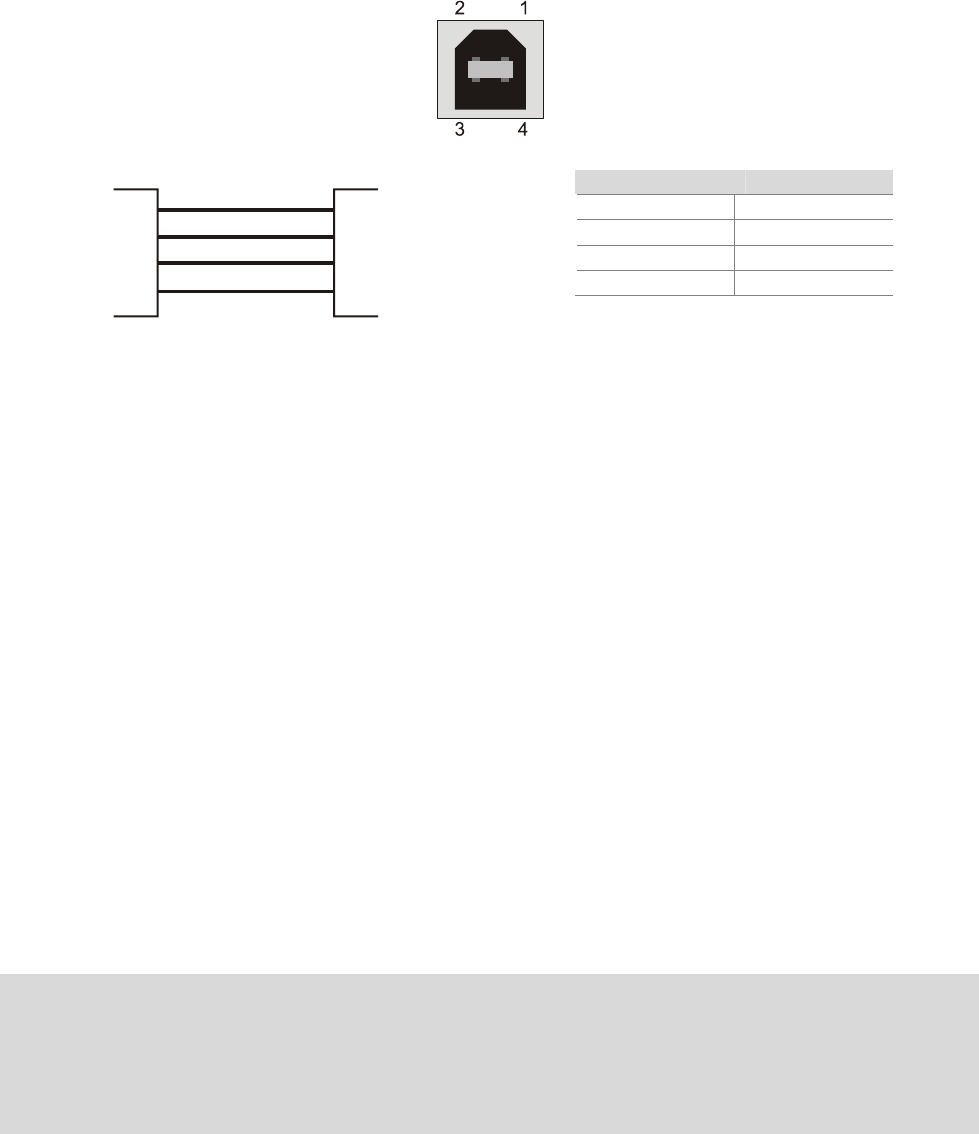

31.2. Cable connection
1
2
3
4
1
2
3
4
Male
Type A
a
e
Type
Pino Sinal
1 VBUS
2 D -
3 D+
4 GND
32. Ethernet Interface
32.1. Specification
The port to the PC is an Ethernet, which operates with the standard characteristics of Ethernet
10/100. To use the printer configure the IP address and net mask that the printer will use. If
no value is configured, it will be used what is in the memory of the printer (configured by the
Printer’s Menu). The standard configuration is 10.10.100.100 and the net mask is 0.0.0.0.
To choose another IP configuration access the printer’s menu turning on the printer with the
key PAPER FEED pressed. When it begins to print, release the button. In the end of the
impression press PAPER FEED once, it will be printed the Configurations of the Printer. Press
the key PAPER FEED again, to enter in the configuration of the printer. Than, press the key
CUT to move forward in the printer’s menu, until the option IP address. Now it is only press
the key PAPER FEED and chooses among one of the pre-programmed configurations in the
printer, as follows:
IP Address: 10.10.100.100 Subnet mask: 0.0.0.0
IP Address: 10.1.1.250 Subnet mask: 255.0.0.0
IP Address: 172.16.1.250 Subnet mask: 255.255.0.0
IP Address: 172.16.1.250 Subnet mask: 255.240.0.0
IP Address: 192.168.1.250 Subnet mask: 255.255.255.0
IP Address: 192.168.1.250 Subnet mask: 255.255.0.0
Choose the configuration and press the button CUT twice to conclude and leave the Printer’s
Menu.
ATTENTION!
The communication port is fixed and it is configured with the number 9100. This value cannot
be modified. To change the IP address and the net mask of the printer use the user's
software. You can download the User's Software on Bematech website:
www.bematech.com
