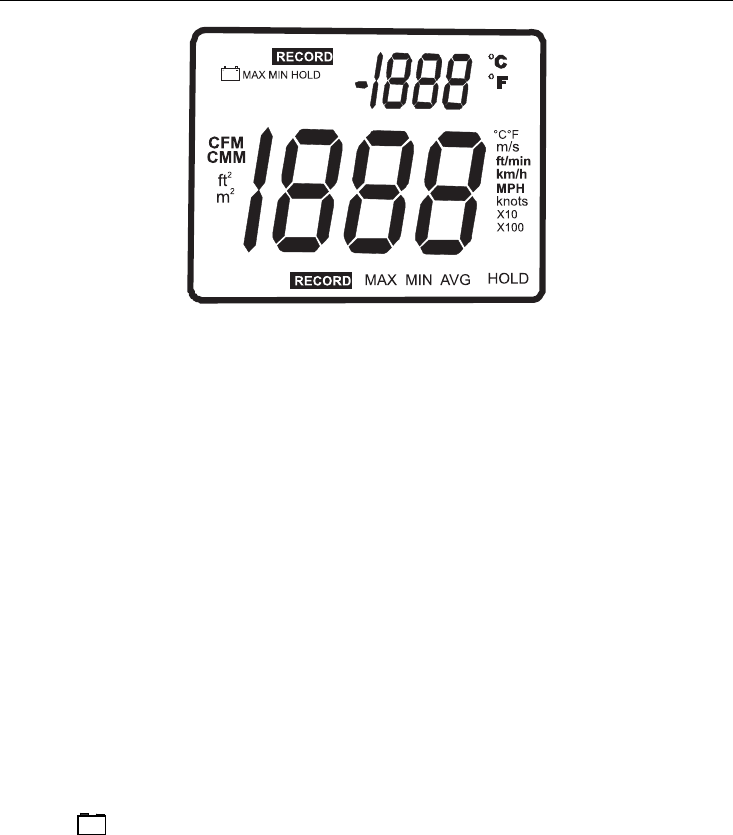

Display



 MAX(topofLCD):MaxHoldfunctionengagedfortheAirTemperaturefunction

 HOLD(topofLCD):DataHoldfunctionengagedfortheAirTemperaturefunction

 VEL:indicatesthatmeterisinairvelocitymode

 FLOW:indicatesthatmeterisinairflowmode



 MAX(bottomofLCD):MaxHoldfortheIRTemperatureandRHfunction

 HOLD(bottomofLCD):DataHoldfortheIRTemperaturefunctionandRHfunction



C/

F:Temperatureunitsofmeasure

 CFM/CMM:airflowunitsofmeasure

 Ft

,m

:unitsforareadimensions

 m/s,ft/min,km/h,MPH,knots:airvelocityunitsofmeasure

 X10,X100:multipliersforairflowreadings

 AVG:airaveragingmode

 RECORD:indicatesthatmin/maxfunctionisrunning(topfortemp,bottomforair)

 LargeLCDdigitsatcenterofdisplay

forRelativeHumidityandIRTemperature

 SmallerLCDdigitsattop,rightofdisplayforProbeTemperature

 :Lowbatteryindicator


