QGE 100 • Introduction 2
POWER
QUANTUM ELITE
DATA
Source PC
Network Switch
PC Running Viewer
Software
QGE 100
Quantum Graphics
Encoder
Quantum Elite
Videowall Processor
STATUS
LAN
QGE 100
QUANTUM GRAPHICS ENCODER

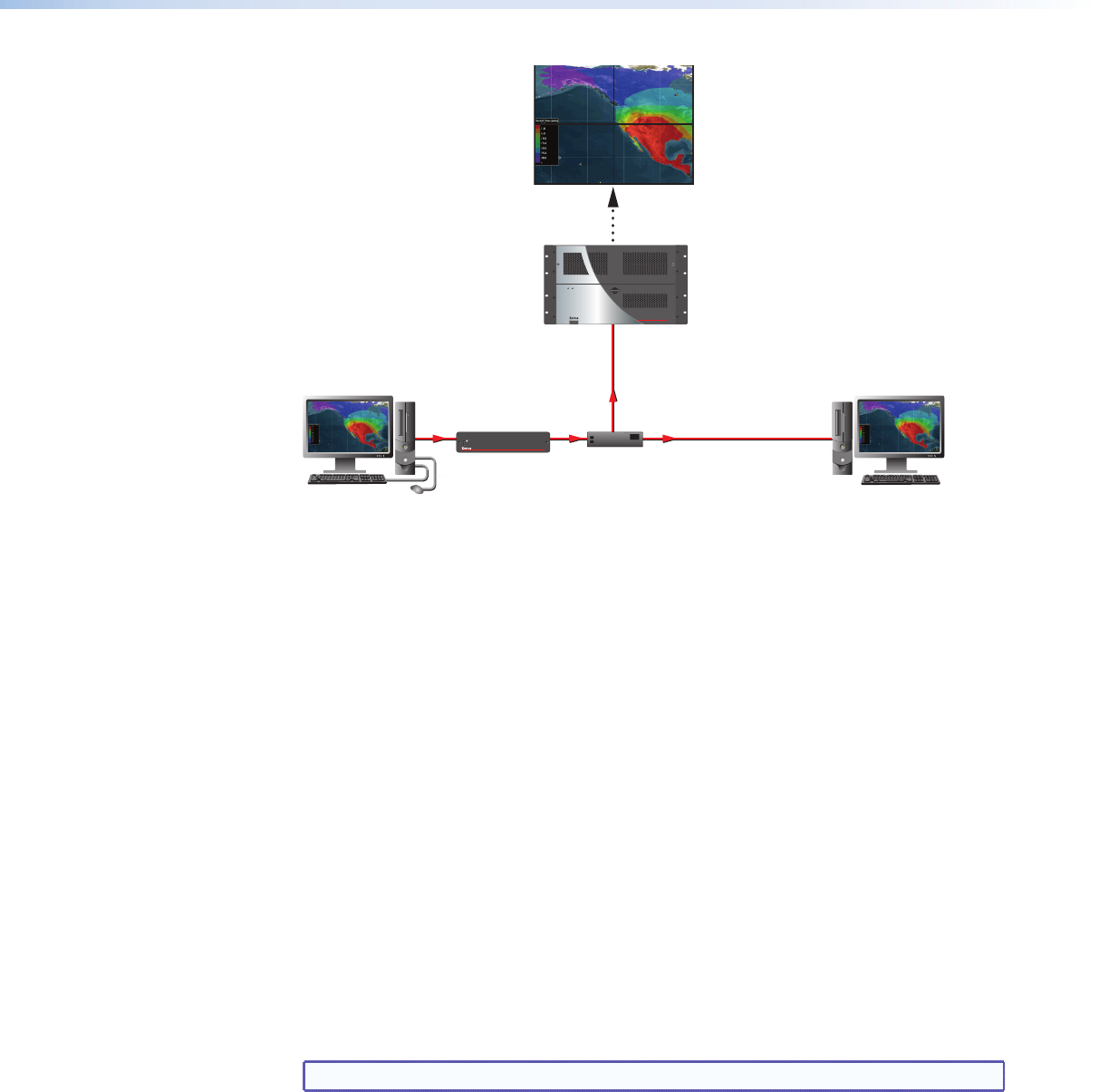

Figure 1. Source Computer, QGE 100, Quantum Processor, and Viewing PC on a
Network
QGE 100 Software
Two software programs are provided with the QGE 100:
• The QGE 100 Viewer software enables you to select a QGE on the network and view
the desktop of a source computer. You are able to specify viewing parameters, such as
full screen or display scaling, as well as enabling mouse and keyboard control of the
source computer by the viewing computer in unicast mode.
• The Administrator software enables you to view and change QGE 100 network
connections, device addresses, and bandwidth parameters. It also provides a viewer
window that lets you select viewing parameters and enable mouse and keyboard
control of the source computer in unicast mode.
Single or Multiple Users
Multicast mode is used when a QGE 100 source will be decoded at one or more
Quantum Elite card frames or by multiple computers running QGE 100 Viewer or
Administrator software.
Unicast mode allows one user (viewing station or computer) to be connected at one
time. This streaming mode allows for remote keyboard and mouse control of the source
computer.
NOTE: Unicast mode cannot be used with a Quantum Elite processor.
