3
z Terminate cables with shielded connectors to the TIA/EIA T568B standard.
z Limit the use of more than two pass-through points, which may include patch points, punch down connectors, couplers, and
power injectors. If these pass-through points are required, use CAT 6 or 6a shielded couplers and punch down connectors.
NOTE: Using more than three patches with the XTP PI 400 yields varying maximum cable lengths. Limit the use of RJ-45
patches in the system.
Number of Patches Maximum Transmission Distance
1 or 2 330 ft. (100 m)
3 280 ft. (85 m)
NOTE: When using CAT 5e or CAT 6 cable in bundles or conduits:
• Do not exceed 40% ll capacity in conduits.
• Do not comb the cables for the rst 20 m, where cables are straightened, aligned, and secured in tight bundles.
• Loosely place cables and limit the use of tie wraps or hook and loop fasteners.
• Separate twisted pair cables from AC power cables.
Applications

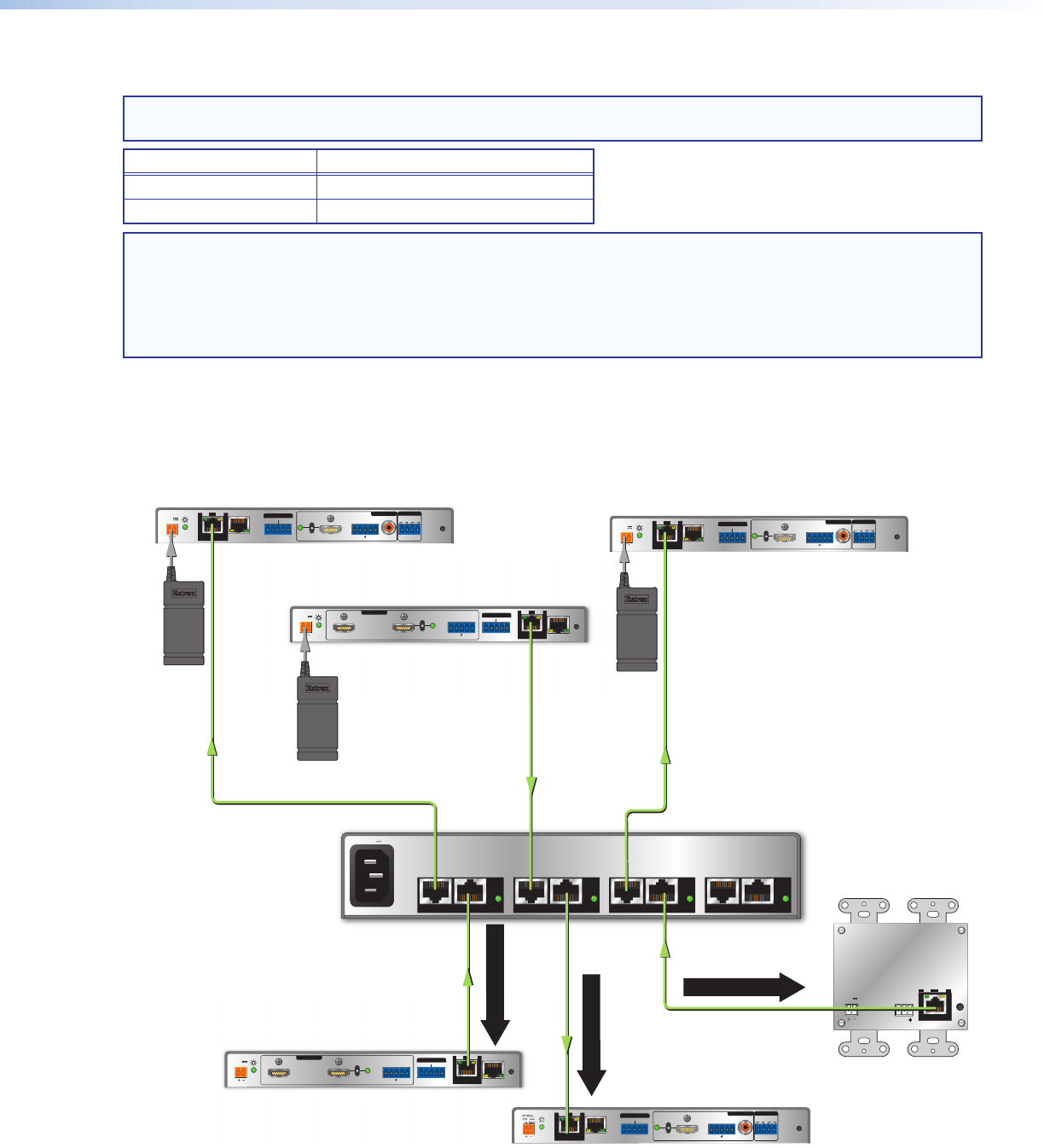

The XTP PI 400 can provide remote power to XTP extenders in a point-to-point installation (see gure 4). It can also provide
power to XTP endpoints with an XTP matrix (see figure 5 on the next page).
100-240V x.xA
50/60 Hz
1
XTP
PWR
XTP PWR
2
XTP
PWR
XTP PWR
3
XTP
PWR
XTP PWR
4
XTP
PWR
XTP PWR
XTP PI 400
POWER
12V
--A MAX
Rx GTx
RS-232 IR
RL
RxTx
-+-+
1
2
AUDIO
ON
AUDIO
RESET
LAN
ACT LINK
OVER XTP
OUTPUTS RELAYS
SIG LINK
XTP IN
HDMI
OFF
S/PDIF
POWER
12V
--A MAX
Rx GTx
RS-232 IR
RL
RxTx
-+-+
1
2
AUDIO
ON
AUDIO
RESET
LAN
ACT LINK
OVER XTP
OUTPUTS RELAYS
SIG LINK
XTP IN
HDMI
OFF
S/PDIF
Rx GTx
RS-232 IR
RL
RxTx
-+-+
1
2
AUDIO
ON
AUDIO
RESET
LAN
ACT LINK
OVER XTP
OUTPUTS RELAYS
SIG LINK
XTP IN
HDMI
OFF
S/PDIF
POWER
12V
HDMI
--A MAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS
OVER XTP
POWER
12V
HDMI
--A MAX
Rx GTx
RS-232 IR
RxTx
−+−+
LR
LOOP-THRU
RESET
AUDIO
OFF
ON
AUDIO
LAN
ACT LINK
SIG LINK
XTP OUT
INPUTS
OVER XTP
Tx Rx
RS-232
12V
1.0A MAX.
POWER
SIG LINK
XTP OUT
RESET
XTP Signal
XTP Signal
XTP Signal
Receiver
XTP T HDMI
Transmitter
XTP T UWP 202
Transmitter
XTP R HDMI
XTP PI 400
XTP Power Injector
1210
top Power
PS 1210
Desktop Power
Supply
PS 1210
Desktop Power
Supply
XTP R HDMI
Receiver
XTP T HDMI
Transmitter
Remote Power
Remote Power
Remote Power
Figure 4. Typical XTP PI 400 Point-to-point Application
