XTP T UWP 202 Wallplate Transmitter • Installation and Operation 8
A

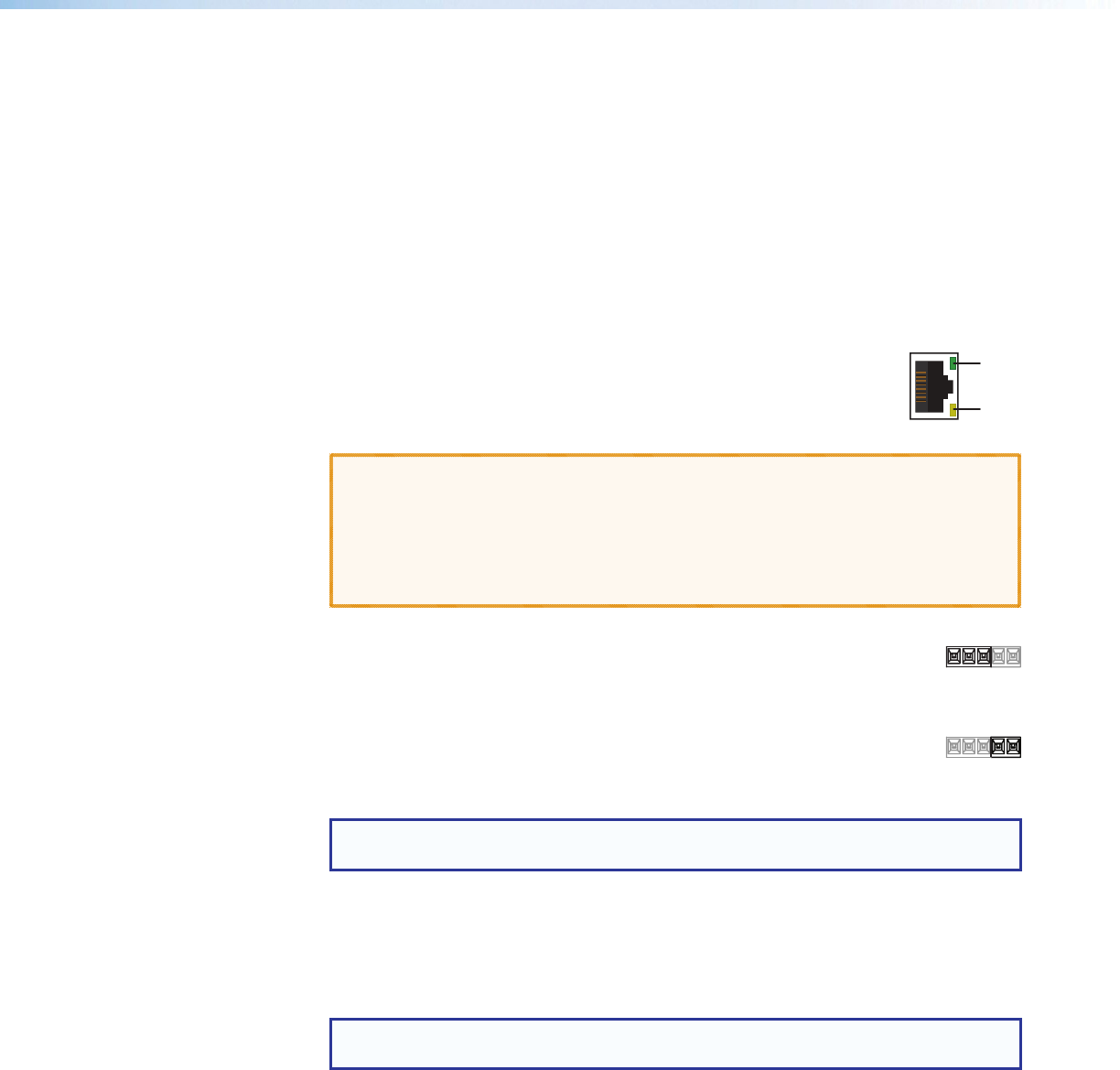

XTP output connector — Connect a twisted pair cable to the RJ-45 connector
labeled XTP Out on the XTP T UWP 202 and the XTP input port on another XTP device
to pass all signals (see TP Cable Termination and Recommendations on page 12).
This cable carries the following signals:
• Digital video
• Digital audio
• Bidirectional RS-232 and IR commands
• Remote power
• Ethernet communication
• System communication
Signal LED indicator — Lights green when the transmitter outputs an
XTP signal to a compatible receiver or matrix switcher.
Link LED indicator — Lights yellow when XTP devices are connected
and communication is established.
ATTENTION:
• Do not connect this connector to a computer data or telecommunications
network.
• XTP remote power is intended for indoor use only. No part of the network that
uses XTP remote power should be routed outdoors (see Remote power on
page 15).
B
RS-232 Over XTP port — To pass bidirectional serial or other control
signals between XTP-compatible devices, connect a control device to the
5-pole direct insertion captive screw connector. The port includes only the 3
poles labeled “RS-232.”
IR Over XTP port — To transmit and receive IR signals (up to 40 kHz),
connect a control device to the 5-pole direct insertion captive screw
connector. This port includes only the 2 poles labeled “IR” and shares the
ground pole with the RS-232 port.
NOTE: RS-232 and IR data can be transmitted simultaneously (see
RS-232 and IR Over XTP Communication on page 13 for wiring details).
C
Remote RS-232 connector — Connect a host device to the 3.5 mm, 3-pole direct
insertion captive screw connector for serial control of the transmitter.
D
Power connector and LED — Connect an external power supply to the 2-pole direct
insertion captive screw connector. Confirm the polarity of the power supply wires. The
Power LED lights to indicate the device is receiving power.
NOTE: The XTP T UWP 202 can also be powered remotely (see Power
Connection on page 14).
Tx Rx G
Tx Rx G
Signa
Link
