If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
2.3L engine (if equipped)

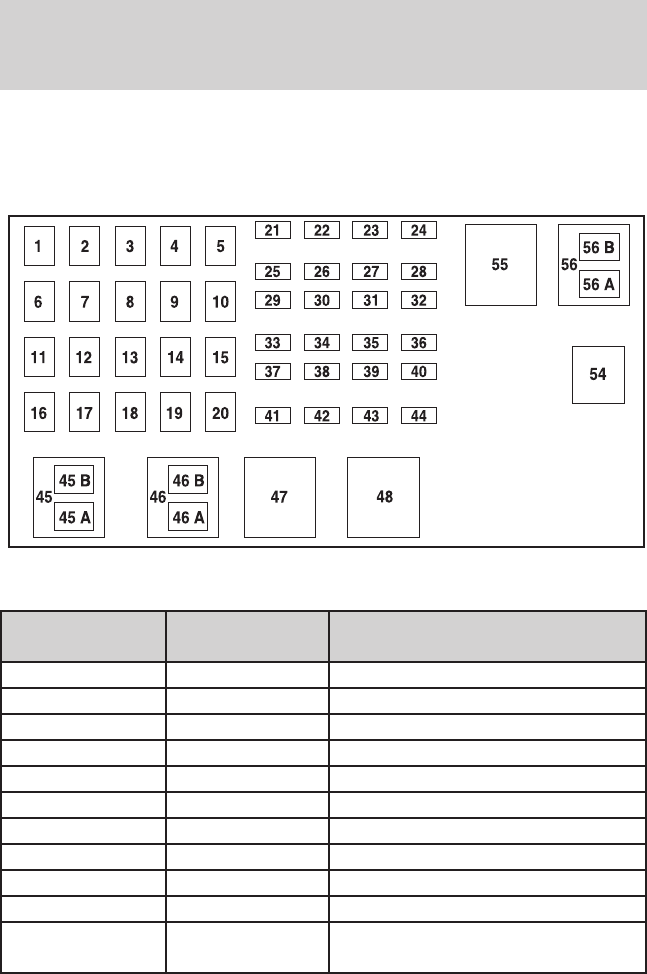

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 40A** Interior fuse panel (SJB)
2 Not used
3 40A** Interior fuse panel (SJB)
4 Not used
5 50A** Interior fuse panel (SJB)
6 Not used
7 40A** Starter solenoid
8 Not used
9 40A** Ignition switch
10 Not used
11 30A** Powertrain Control Module (PCM)
relay
