6Ć33 Removal and ReplacementC4699Ć90000

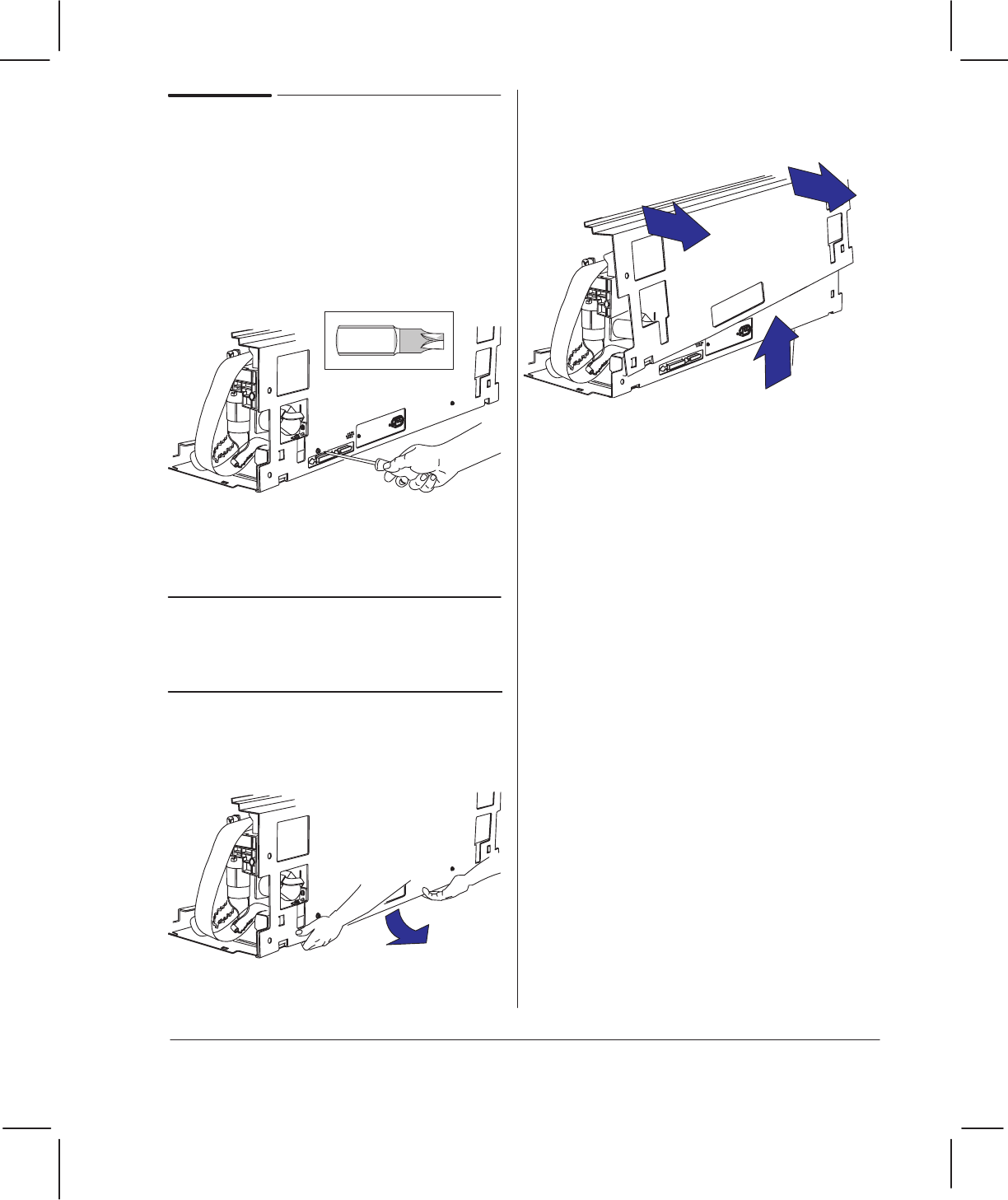

Removing the Back Cover
1 Remove the left and right endĆcovers
' pages 6Ć9 and 6Ć10.
2 Remove the screws that attach the back
cover to the plotter.
D/A1Ćsize plotters have 2 screws.
E/A0Ćsize plotters have 3 screws.
Torx-20
Reassembling: Before replacing the
screws, ensure that the electronics module
is flush against the inside back of the
plotter.
CAUTION
In the following steps, take care not to
damage the parallelĆport clips.
3 Pull the bottom of the cover slightly back
and out from the plotter.
4 Lift the cover up, and remove it from the
plotter.
