Making basic adjustments 25
Making basic adjustments
This section provides instructions for making basic adjustments to the projector.

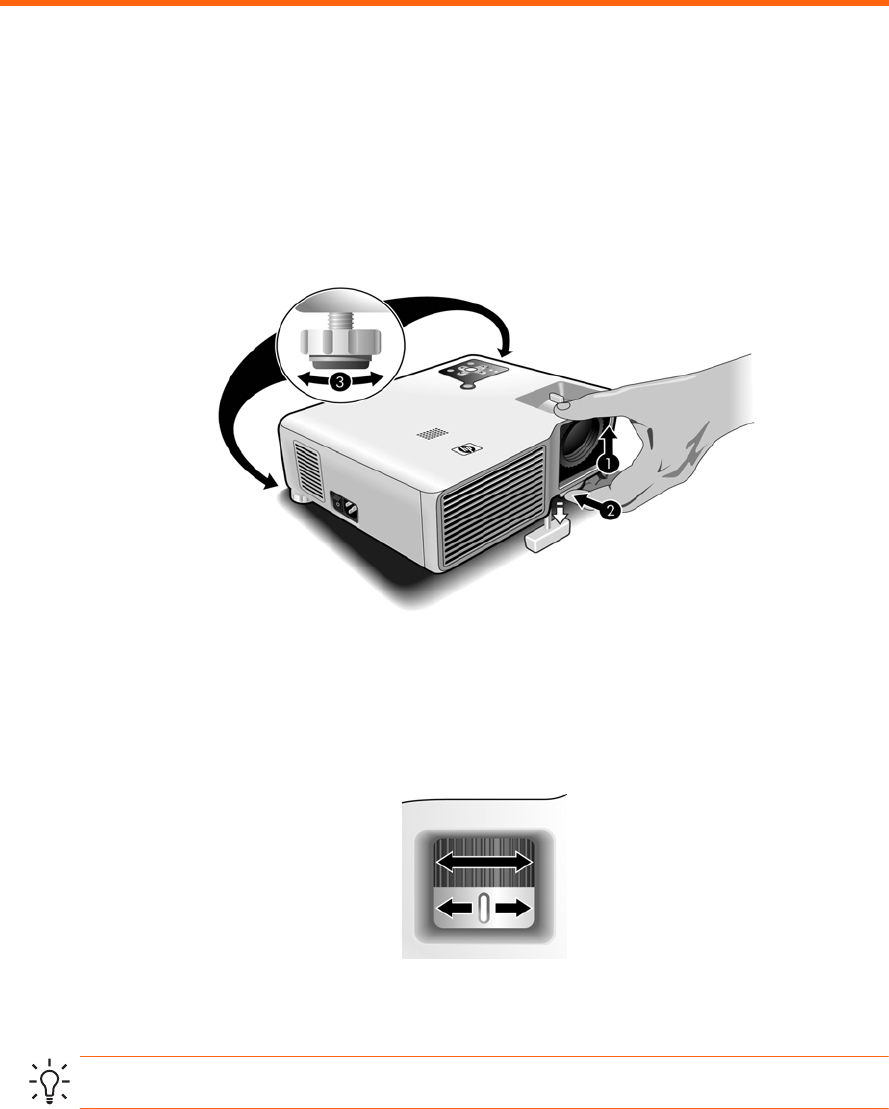

Aiming the projector
• To raise or lower the projected picture on the screen, press the height adjustment button 1
and raise or lower the front of the projector
2. Release the button to lock the adjustment.
• To level the picture on the screen, turn the adjustable feet
3 to lengthen or shorten.
Adjusting the focus and zoom
• Rotate the focus ring until the image becomes clear. The projector can be focused at
distances of 1.2 to 10 m (4 to 33 ft).
• Rotate the zoom ring (with tab) to adjust the picture size (100% to 120%).
If the picture does not fit the screen, you might have to move the projector closer to or farther
away from the screen.
TIP: For more information on adjusting the picture, see “Adjusting the Projector” on page 29.
