CONNECTION (continued)
1.
Connect your Equipment to the A/V Center (continued)

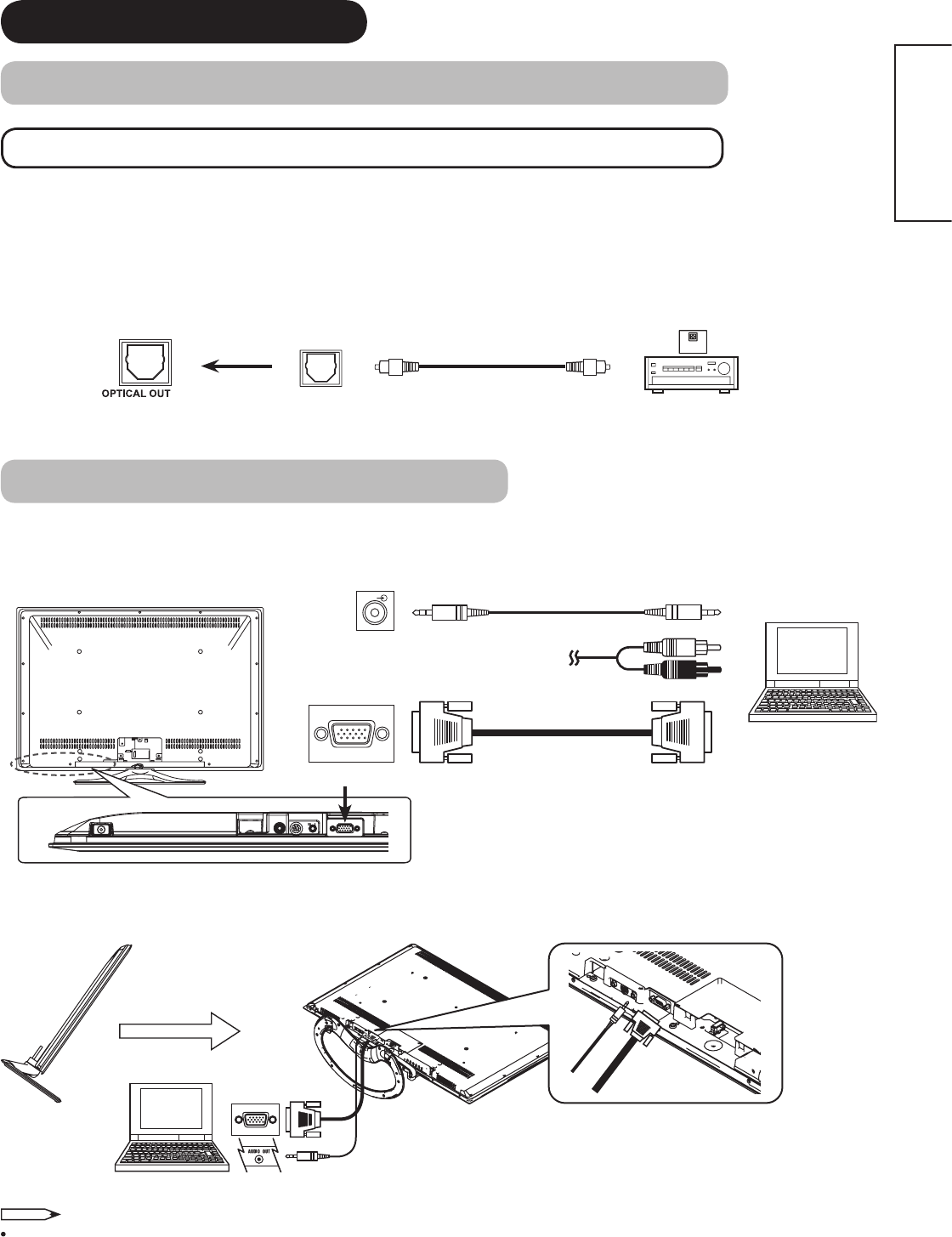

Connecting to Equipment Having a Audio Digital Input Terminal
The A/V Center “OPTICAL OUT” Audio terminal can be connected to devices equipped with Optical Input
capabilities such as Audio Ampliers Systems. The “OPTICAL OUT” from the A/V Center Rear Panel is a xed
output. The Volume of the amplier is controlled by the amplier, not by the A/V Center Unit. The OPTICAL
OUT terminal outputs all audio sources.
2.
Connecting to a PC(on Monitor Side)
The PC connection terminal (D-sub 15 pin) + the PC (RGB) Analog Audio Input terminal are connected to
the PC, allowing an analog RGB signal.
To insert D-sub 15 pin, tilt the monitor forward and bring the terminals into view. Two people are required to hold the
monitor and insert D-sub 15 pin safely. Be careful not to damage the panel.
*
*
NOTE
*D-sub 15 and Audio cables are not included.
OPTICAL
IN
STEREO SYSTEM
AMPLIFIER
[Example]
IN
OUT
(Audio)
Optical
OUT
IN OUT
AUDIO
[Example]
(D-sub 15 Pin)
Audio Cable
D-Sub 15
Tilt Forward
