FD3-150 FD3-200 FD3-300
FOODWASTE DISPOSERS
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
F-8560 – FD3-150 FD3-200 FD3-300 Foodwaste Disposers Page 3 of 4

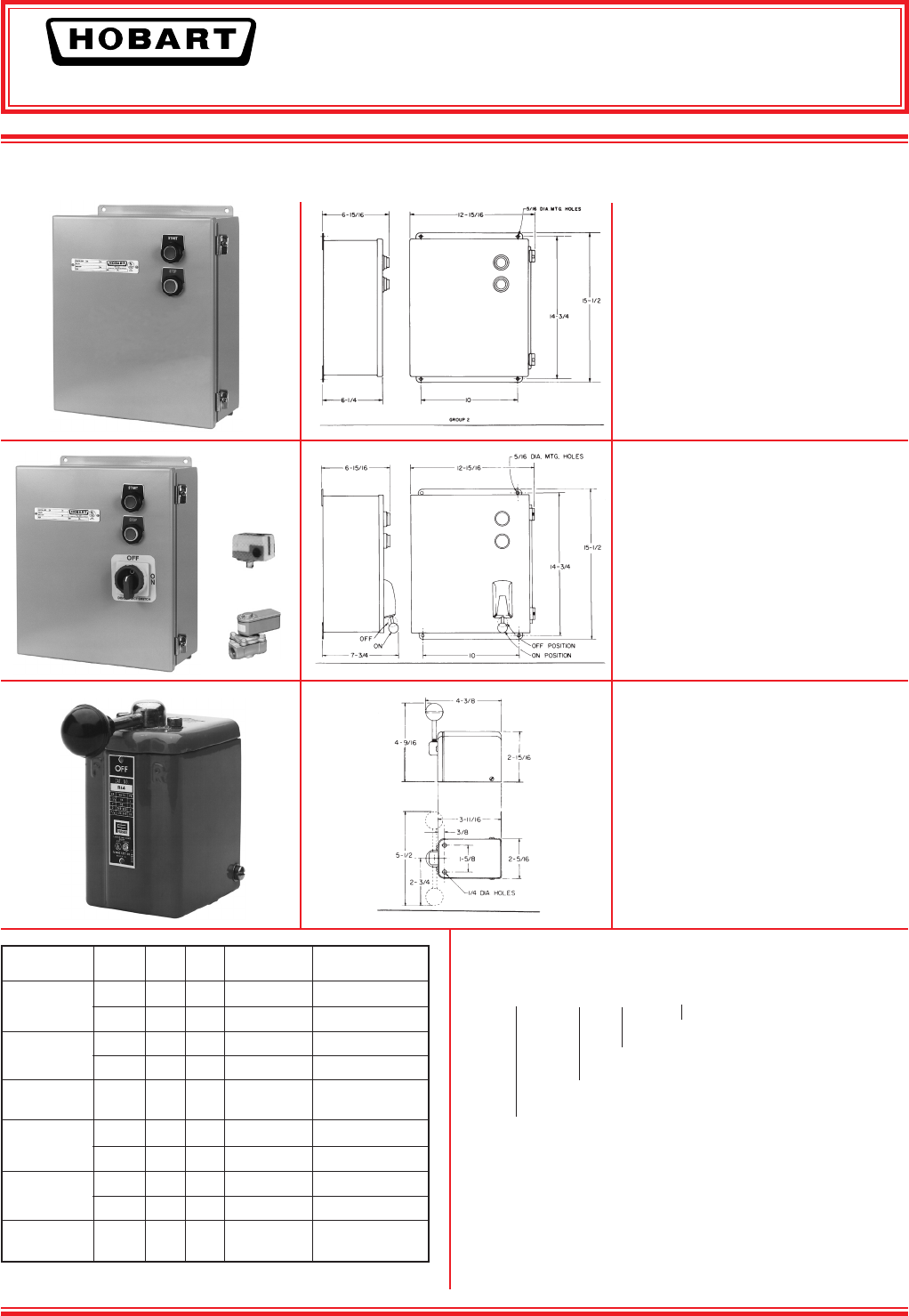

ELECTRICAL CONTROL GROUPS Listed by Underwriters Laboratories Inc., for use with FD3 Disposers
(50 Hz. Electrical Specifications not UL listed)
Group 2 - For all Models
Includes:
Magnetic Contactors
Pushbutton Start and Stop
Automatic Reversing
NEMA 12 Enclosure
Solenoid Valve
Approximate
Shipping Wt. 31 lbs.
Group 3 - For all Models
Includes:
Magnetic Contactors
Pushbutton Start and Stop
Automatic Reversing
Low Water Pressure Cut-off
Time Delay for water after shut-off
Line disconnect
Solenoid Valve
NEMA 12 Enclosure
Approximate
Shipping Wt. 38 lbs.
Group 4 - For Model FD3-150
and FD3-200
Includes:
Manual Reversing Switch
NEMA 1 Enclosure or NEMA 4 Enclosure
Not available above 250 volts
Optional Solenoid Valve
Approximate
Shipping Wt. 11 lbs.
1
1
⁄2 1 60 120/208-240 17.2/8.2-8.6
1
1
⁄2 3 60 208-240/480 4.8-4.8/2.4
2 1 60 120/208-240 20.0/10.0
2 3 60 208-240/480 6.8-6.5/3.3
3 3 60 208-240/480 9.0-8.0/4.0
1
1
⁄2 1 50 110-120/220-240 See customer service
1
1
⁄2 3 50 220-240/380-415 5.7-6.1/2.7-2.7
2 1 50 110-120/220-240 See customer service
2 3 50 220-240/380-415 6.7-7.0/3.4-3.4
3 3 50 220-240/380-415 9.0-8.7/4.8-4.6
The slant (/) indicates the dual voltage operation accomplished by motor lead connection:
follow connecting diagram on motor.
SAMPLE SPECIFICATION
FD3-200 — B — 2 (240/60/3)
Electrical Specifications
Electrical Control Group
Accessory Group
Model Number
Cut hole 19” for 18” cone. Hole to be 16” for 15” cone.
Solenoid must be installed in upright position.
Disposer may be easily rotated for better drain line connection.
Center line at wall outlet of trap should not be higher than center line
of disposer discharge opening
If water pressure is in excess of 60 P.S.I. install a pressure
reducing valve.
Model H.P. Ph. Hz. Volts Rated Amps
FD3-150
FD3-200
FD3-300
FD3-150
FD3-200
FD3-300
