1100 Cables
Port Replicator (1010)
Option Card Cover and Option Card (1020)
UltraBay II (1040)
Device Space Bay Frame (1050)
Upper Cover (1060)

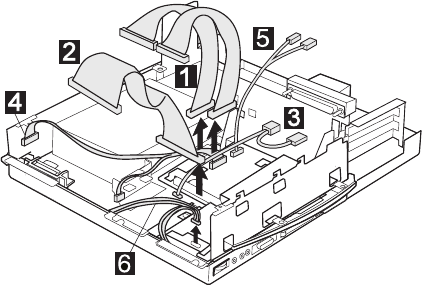

This step is a preparation for removing the main card
assembly. Remove the IDE cables 1, the SCSI cable
2, the audio cable 3, the USB cable 4, the wake-on
signal cable 5, and the speaker cable 6.
SelectaDock III (3547-003) 667
