IMI CORNELIUS INC.
www.cornelius.com
ILLUSTRATED PARTS LIST
Manual Part No. 630460202IPL
07–22–2005
IMI Cornelius Co., 2005
XTREME ICE (1444 and 1844)
11 of 12
Rev A

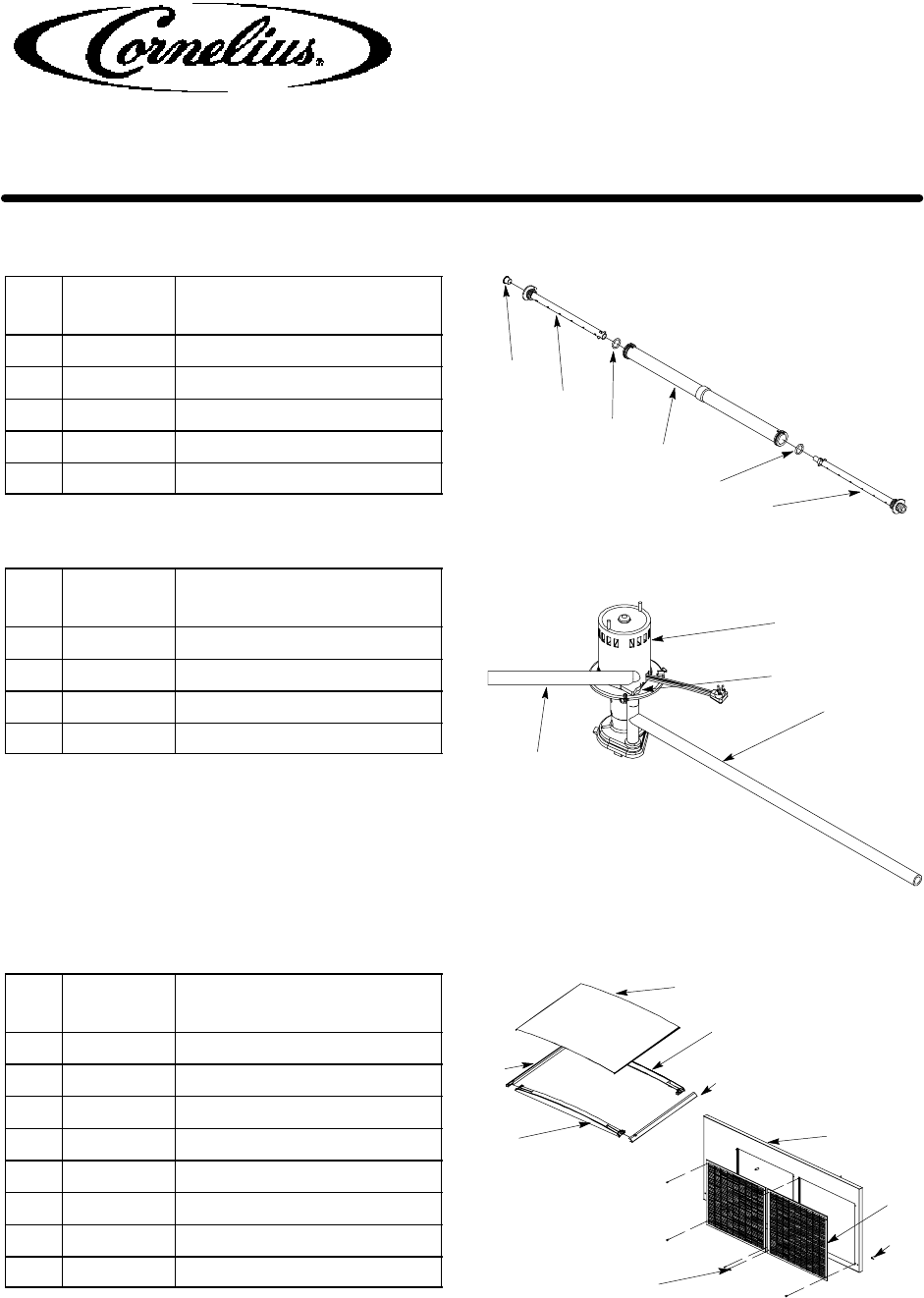

XTREME ICE MAKER (1444 AND 1844 SERIES)
Item
No. Part No. Name
1 630900883 Plug
2 630900780 Distributor, Water, Inner
3 630900809 O-Ring, .075 I.D.
4 630900779 Distributor, Water, Inner, Barb
5 630900777 Distributor Ass’y, Water
1
2
3
4
3
5
FIGURE 10. WATER DISTRIBUTOR ASSEMBLY
Item
No. Part No. Name
1 630900881 Tube, Pump to Dump Valve
2 630900796 Pump, Water, 240V 50/60HZ
3 630900980 Tube, Pump to Distributor
4 163242002 Clamp
1
2
3
4
FIGURE 11. WATER PUMP ASSEMBLY
Item
No. Part No. Name
1 630201301 Cover, Front
2 630901103 Cap, Front Panel
3 630201018 Rail, Front Panel, Left
4 630201020 Rail, Front Panel, Right
5 630201195 Cover, Front
6 166194001 Grill, Air
7 161168006 Screw
8 164854002 Spacer
1
2
3
4
2
5
6
8
7
FIGURE 12. FRONT PANEL ASSEMBLY
