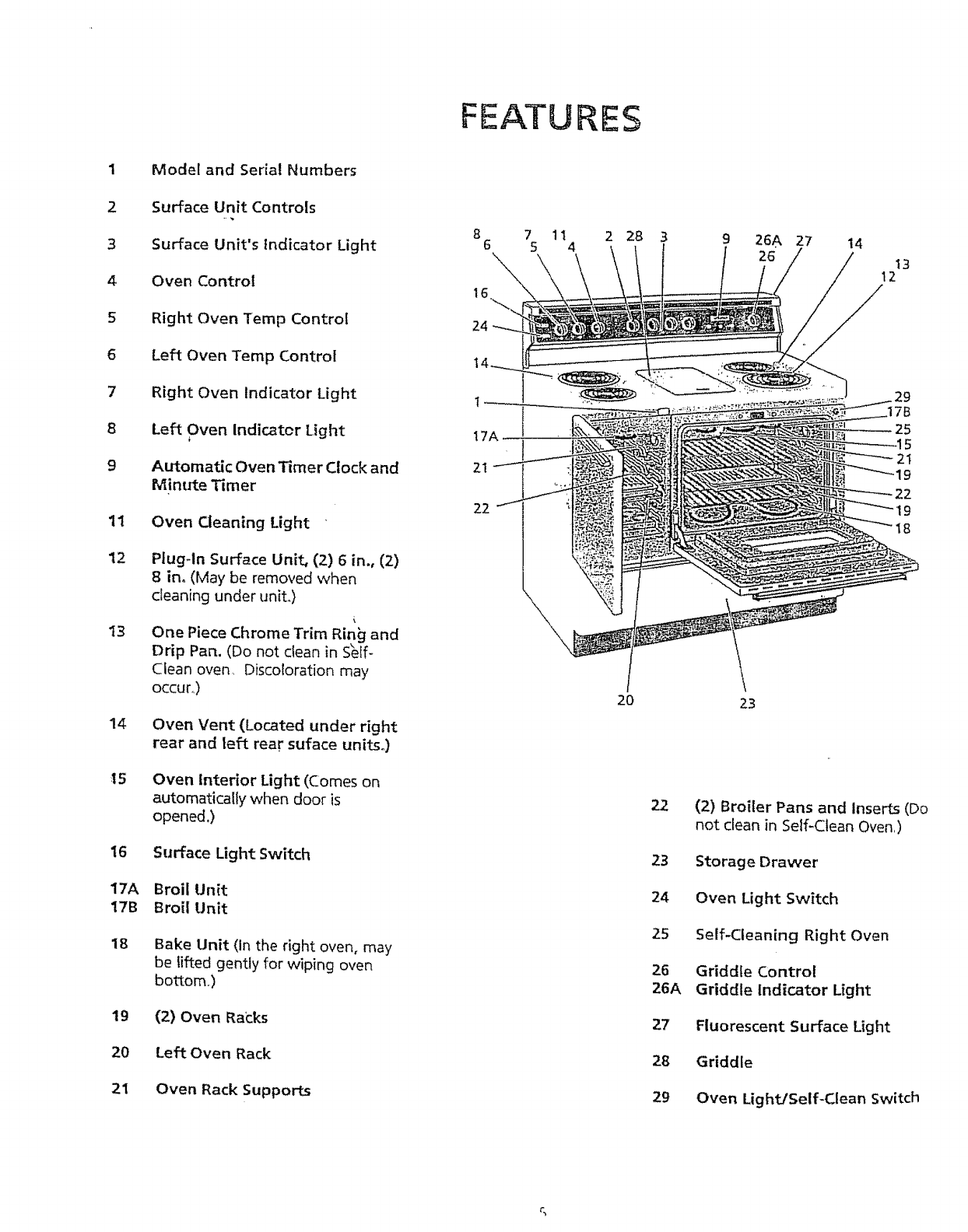

FEATURES
16
17A
17B
18
1 Model and Seria! Numbers
2 Surface Unit Controls
3 Surface Unit's Indicator Light
4 Oven Control
5 Right Oven Temp Control
6 Left Oven Temp Control
7 Right Oven Indicator Light
8 Left Oven Indicator Light
9 Automatic Oven Timer Clock and
Minute Timer
11 Oven Cleaning Light
12 Plug-In Surface Unit, (Z) 6 in., (Z)
8 in, (May be removed when
cleaning under unit.)
I3 One Piece Chrome Trim Ring and
Drip Pan. (Do not clean inS_If-
Clean oven, Discoloration may
Occur,,)
14 Oven Vent (Located under right
rear and left rear suface units.)
15 Oven Interior Light (Comes on
automatically when door is
opened.)
Surface Light Switch
Broil Unit
Broil Unit
Bake Unit (in the right oven, may
be lifted gently for wiping oven
bottom.)
19 (2) Oven Racks
20 Left Oven Rack
21 Oven Rack Supports
8 7 11 2 28
6 5 4
16
24
17A
21
22
\
20
22
23
24
25
26
26A
27
28
29
9
26A 27
26
14
13
12
29
21
18
\
23
(2) Broiler Pans and inserts (Do
not clean in Self-Clean Oven,)
Storage Drawer
Oven Light Switch
Self-Cleaning Right Oven
Griddte Control
Griddle Indicator Light
Fluorescent Surface Light
Griddle
Oven Light/Self-clean Switch
