4-16 Service Manual
5016-001
Grid Block 1 Assembly Removal
1. Remove the left side cover, refer to the Left Side Cover
Removal on page 4-3.
2. Remove the HVPS assembly, refer to the HVPS Board
Assembly Removal on page 4-20.

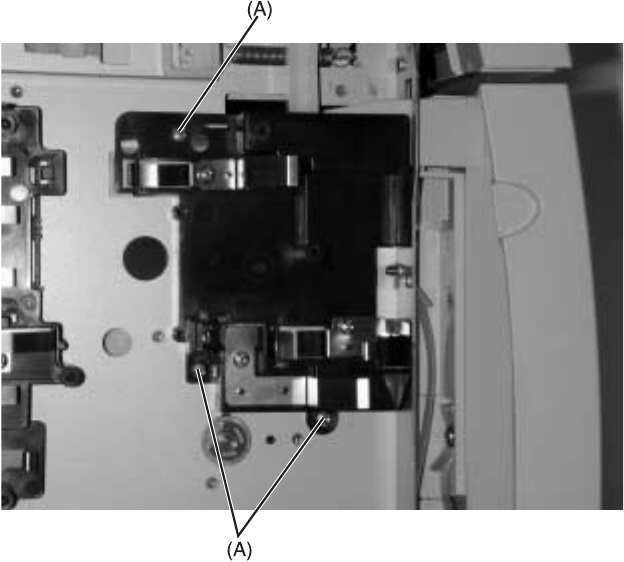

3. Remove the three (3) screws [A] from the block assembly.
4. Remove the block assembly.
5. Disconnect the waste toner sensor board cable.
Note: When replacing the grid 1 block assembly, be sure not to
damage or deform the high voltage contact.
