July 2010 LCD TV 47LE8500
36
Removing Front IR Board
Removing Front IR Board
IR board / Intelligent Sensor
p/n EBR64966401

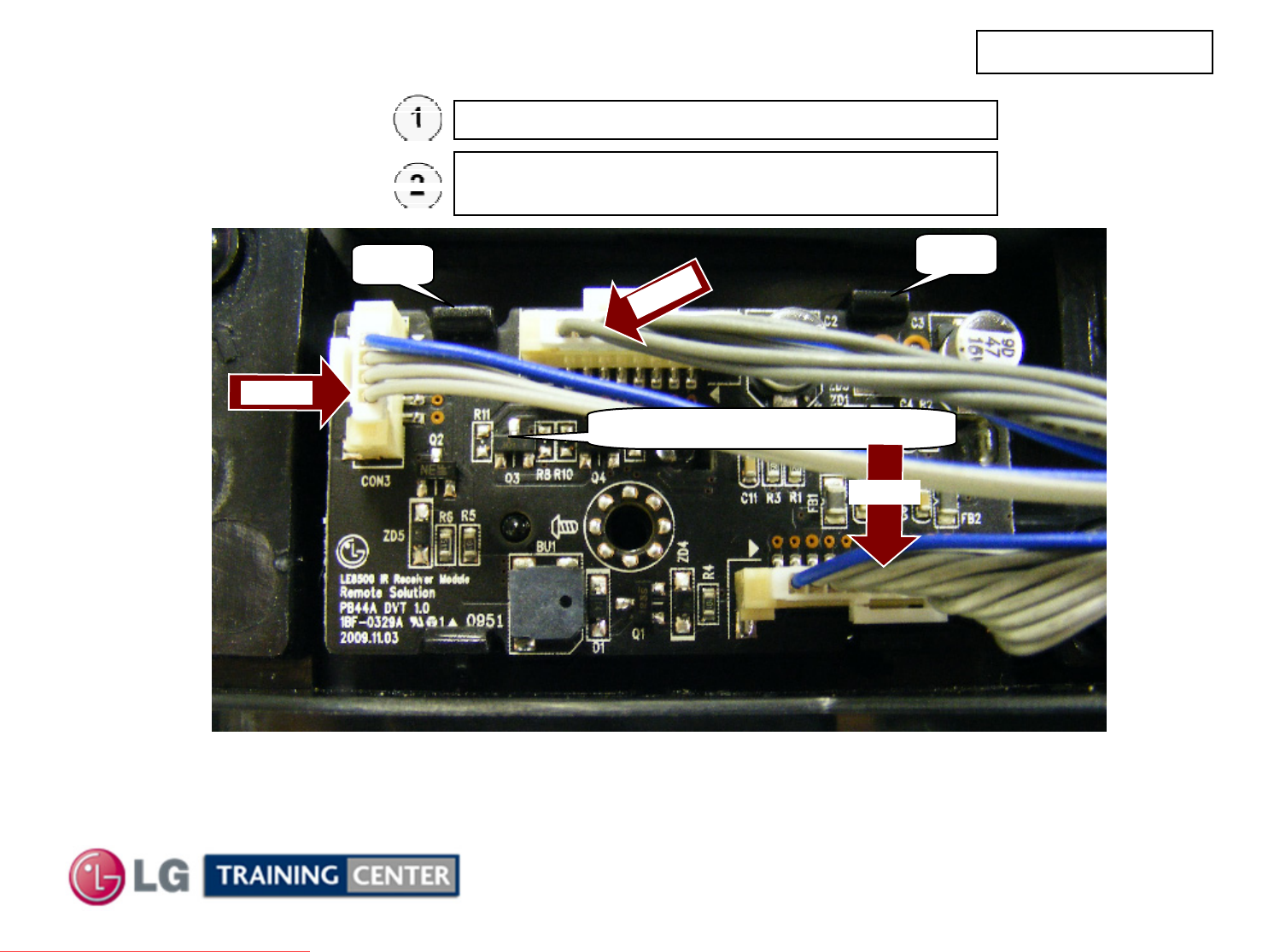

Disconnect CON1, CON2 and CON3 connectors.
C
O
N
2
CON3
Tab
Tab
CON1
Press upward on the two tabs at the top. Tilt the
board downward and lift straight up.
