DXV35 REAR VENT CONVERSION INSTRUCTIONS
NOTE: You must order the Rear Vent Starter Collar Kit #AA-11-00645 from Mendota directly in order to perform this conversion.
The DXV-35, as delivered, comes with the Top Exhaust and Air Intake Collars installed as shown below. The rear Exhaust and Air
Intake ports are plugged. To convert to vent Out-the-rear, please follow these instructions carefully. Pay special attention to the loca-
tions of all Gaskets and Insulation material.
2
9
HA-29-00166
TOP JACKET PLUG
HA-30-00175
5" EXHAUST COLLAR
45-01-00253
8" AIR INTAKE
COLLAR
35-01-00310
INSULATION
HA-29-00164
TOP EXHAUST PLUG
HA-29-00165
TOP AIR PORT PLUG
IMPORTANT: Install parts exactly as shown below. Be certain to reuse and properly place gaskets 65-02-00058 and 65-02-00094
removed in Step 2, below. Failure to install gaskets properly will result in Carbon Monoxide emissions and can result in bodily injury
or even death!

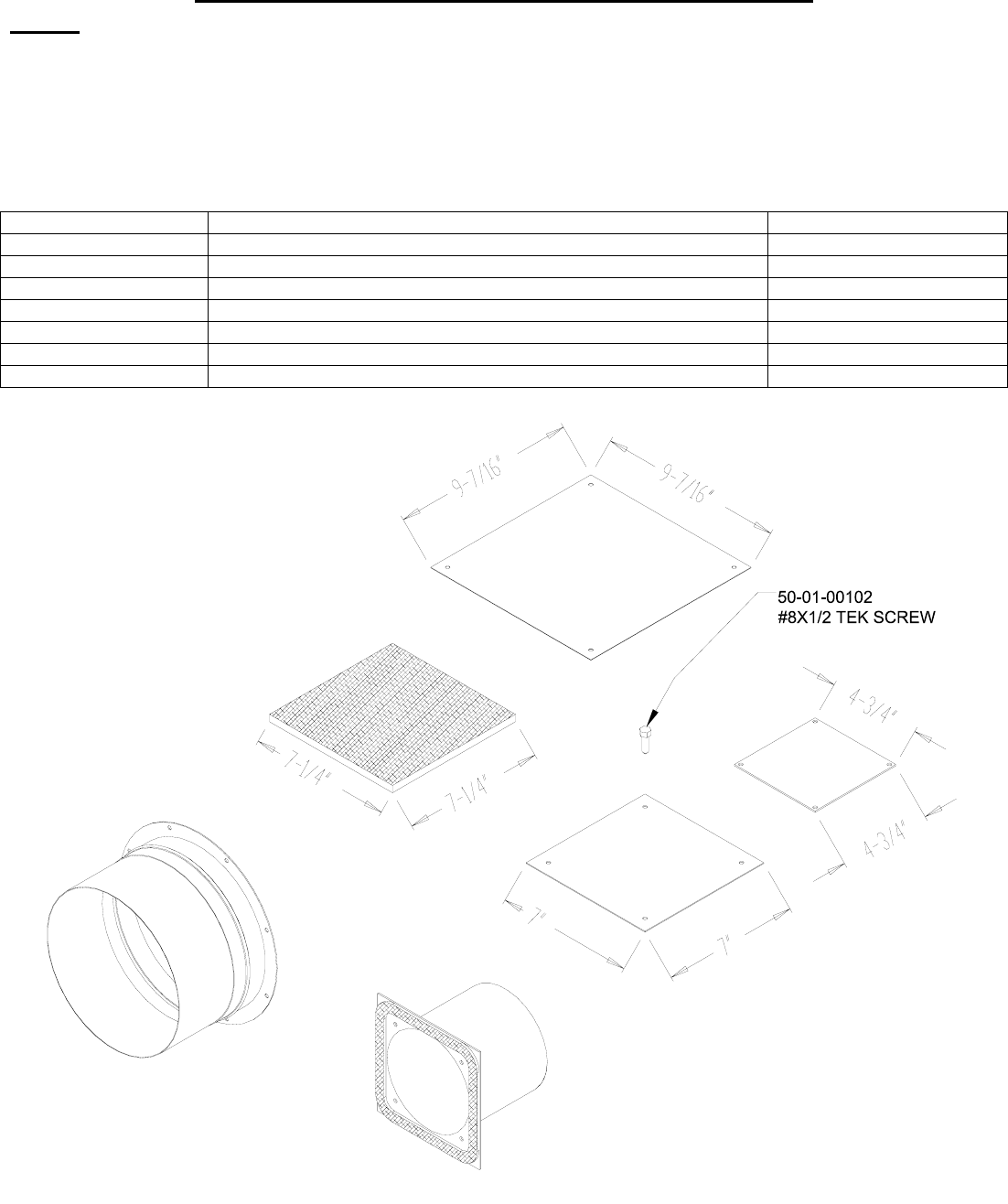

AA-11-00645 KIT PARTS IDENTIFICATION
PART # DESCRIPTION QUANTITY ENCLOSED
HA-29-00164 TOP EXHAUST PLUG PLATE 1
HA-29-00165 TOP AIR PORT PLUG PLATE 1
HA-29-00166 TOP JACKET PLUG PLATE 1
HA-30-00175 5” EXHAUST COLLAR 1
35-01-00310 INSULATION 1
45-01-00253 8” AIR INTAKE COLLAR 1
50-01-00102 #8X1/2” TEK SCREWS 12
