8 73D0024
E
H
J
A
D
L
K
C
F
M
B
I
G
N
PRE-INSTALLATION INFORMATION

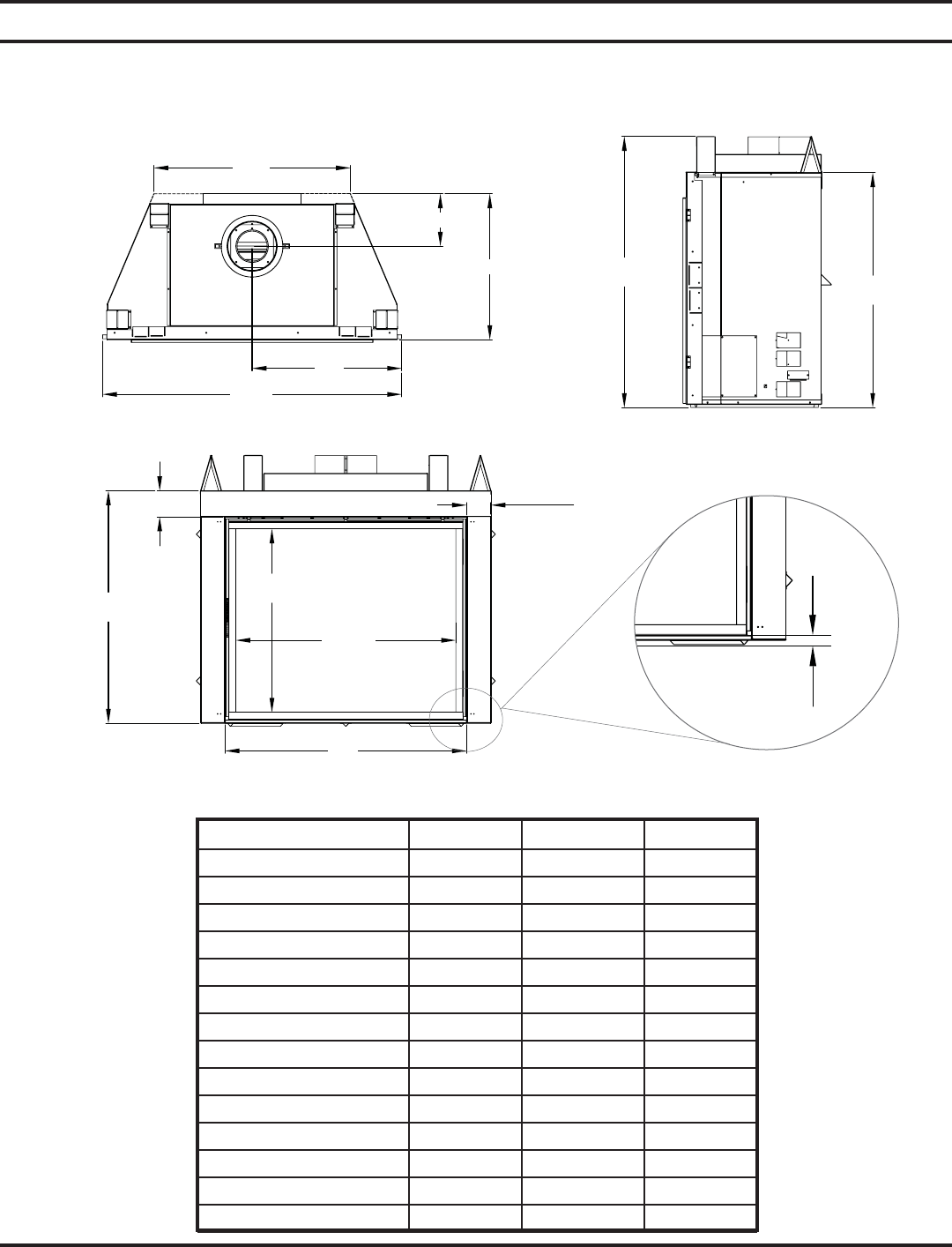

Figure 3 - Fireplace Dimensions
FIREPLACE DIMENSIONS
DESCRIPTION Key Letter KHLDV400 KHLDV500
Overall Front Width A 44 15/16" 48 15/16"
Inside Width B 35 1/2" 39 1/2"
Glass Width C 32" 36"
CTR Pipe D 22 1/2" 24 1/2"
Rear Width E 28 1/8" 32 1/8"
Glass Height F 30" 30"
Chassis Height G 38 7/16" 38 7/16"
Depth H 23 7/8" 23 7/8"
Height to Standoffs I 44 3/8" 44 3/8"
CTR Height J 8 9/16" 8 9/16"
Top Face K 4 1/4" 4 1/4"
Side Face L 4" 4"
Bottom Face M 38 1/16" 38 1/16"
Finish Hearth Rise N 1" 1"
