SX 35 DSC
Basic Operation
Power On/Off
Power to the transceiver is controlled with the VOLume knob. When the
VOL knob is in the full CCW position the unit is turned Off.
To turn the transceiver On:
Rotate the VOL knob CW until it clicks over the detent. The LCD back-
light illuminates and the Power-On screen appears.
INT
SX 35 DSC
CODE 000.00
Power-On Screen
After approximately two seconds, the Normal Communication screen ap-
pears in the display.
To turn the transceiver Off:
Rotate the VOL knob CCW until it clicks over the detent to the OFF
position.
Volume and Squelch
The VOLume and SQuelch controls have concentric knobs. The outer ring
knob controls squelch and the inner knob controls volume. They are inde-
pendent controls but work together to control audio output from the speaker.
The volume control sets the loudness of sound from the speaker and the
squelch control is used to mute background noise when no received signals
are present.

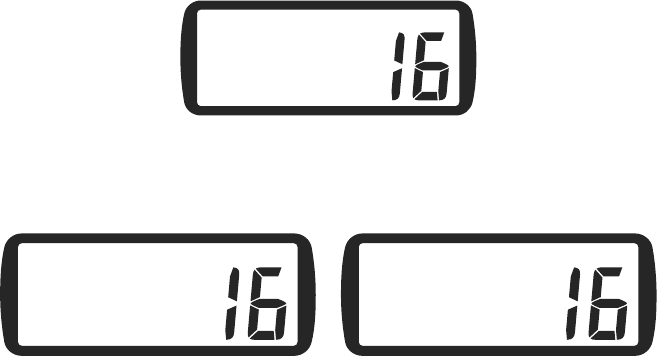

INT
16 PRI. HI
MEM CHANNEL
N 28°04.814
W 83°42.169
Normal Com Screen
with GPS Connected
INT
16 PRI. HI
MEM CHANNEL
––°––.–––
––°––.–––
Normal Com Screen
w/o GPS Connected
