SM/SMBW 2000 Series™ Filter Installation and User’s Guide
Head Loss Comparison Curves
SAVE THESE INSTRUCTIONS
0 20 40 60 80 100 120 140 160
0
2
4
6
8
10
12
14
16
18
20
U.S. Gallons per Min.
Feet of Water
SMBW - 2036
SMBW - 2048
SMBW - 2060
SMBW - 2072
SM - 2036
SM - 2048
SM - 2060
SM - 2072
PRESSURE DROP CURVES
D.E. FILTER
D.E. Filter - 2000 Series
Head Loss Curve

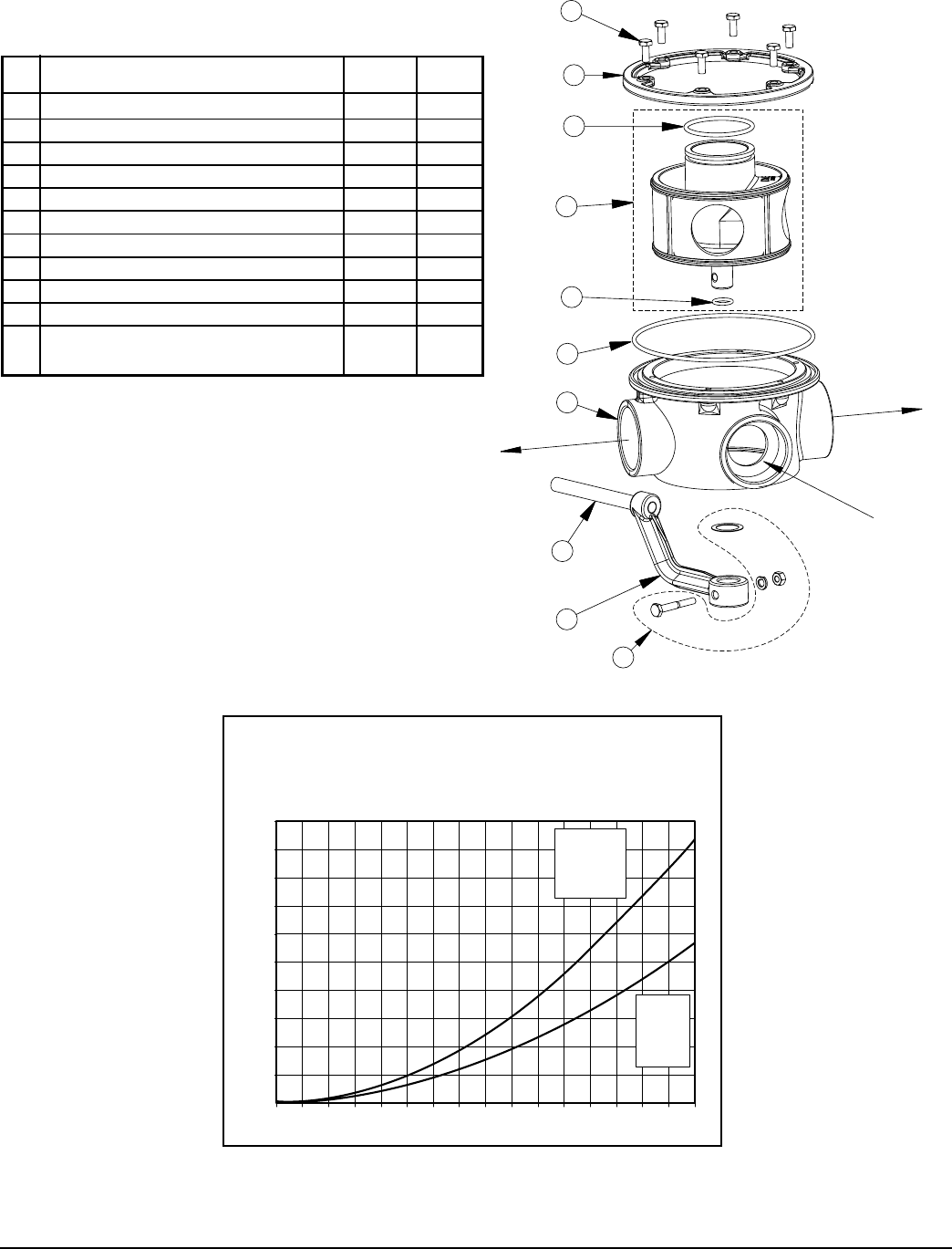

Replacement Parts List
Rotary Valve Model SMBW w/ Noryl Rotor
Item Description P/N Qty.
Valve BW w/Noryl Rotor Complete 073462 1
1 Screw 1/4-20 x 5/8" HH s/s 074927 6
2 Compression Ring 070731 1
3 O-Ring 2-228 Collar & Rotor 071426 1
4 Rotor Valve Noryl w/Tapered Seal 073370 1
5 O-Ring Buna 2-113 Rotor Shaft 071435 1
6 O-Ring 2-259 Valve 3 Port 071427 1
7 Casting, Valve Body, Brass 2" Thread 072112 1
8 Handle SMBW Rotor s/s 190026 1
9 Handle Extension BW Brass 070971 1
10 Rotor Valve Handle Hardware Kit 188602 1
Includes: Bolt, Lock Washer, Nut, Spacer Washer
DRAIN
EFFLUENT
FROM PUMP
DISCHARGE
10
9
8
7
6
5
4
3
2
1
