3. Assign PVID for each port:
Port-1,Port-2 and Port-3 : PVID=2
Port-4,Port-5 and Port-6 : PVID=3
Port-7~Port-24 : PVID=1
4. Enable VLAN Tag for specific ports
Link Type : Port-3 (VLAN-2) and Port-6 (VLAN-3)

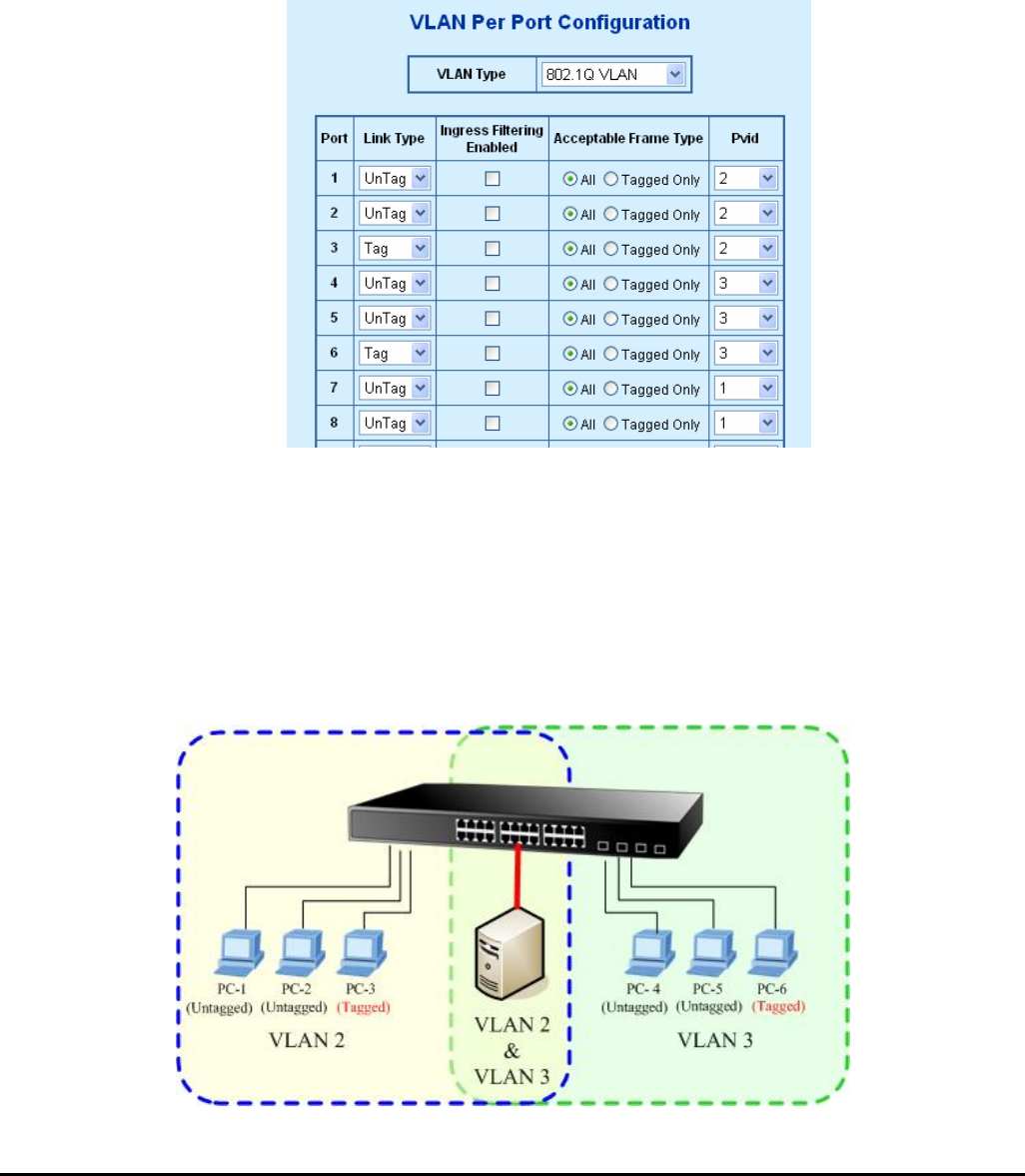

The Per Port VLAN configuration in Figure 4-16 appears.
Figure 4-16 Port 1-Port 6 VLAN Configuration
4.6.3.2 Two VLANs with overlap area
Follow the example of 4.6.3.1. There’re two exist separate VLANs – VLAN 2 and VLAN 3, and the PCs of each VLANs are
not able to access each other of different VLANs. But they all need to access with the same server. The screen in Figure
4-17 appears. This section will show you how to configure the port for the server – that could be accessed by both VLAN
2 and VLAN 3.
Figure 4-17 A Server connect to the VLAN overlap area
