Connections

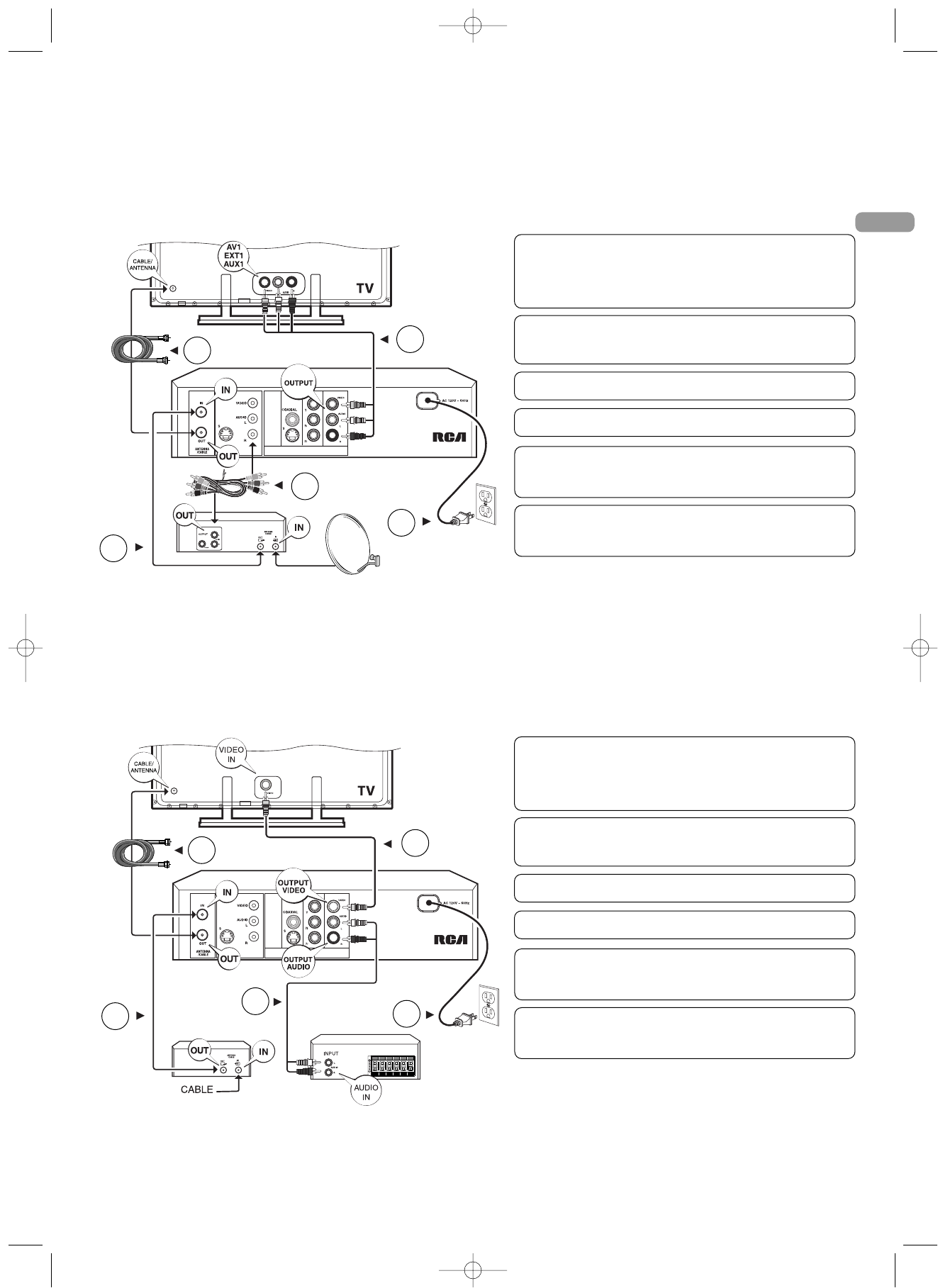

Option C: DVD/VCR + TV + satellite receiver
For your unit to work properly, you must follow the instructions below.
Option D: DVD/VCR + TV + basic cable box + audio receiver
For your unit to work properly, you must follow the instructions below.
Audio Video cables
(not included)
Satellite
receiver
Cable box
Audio receiver
Audio
cables (red
and white)
Note: graphics are for representation only and may differ from your actual units.
RF coaxial cable
Power
cable
Audio
Video
cables
1
Video
cable
1
Antenna
cable
2
Antenna
cable
2
3
RF coaxial cable
3
AC120V
60Hz
5
Power cable
AC120V
60Hz
5
4
4
5 Connect the unit’s AC power cable to a suitable
wall outlet.
6 Your unit is ready for use after the connections.
Please read page 12 to start using the unit.
1 Connect the included Audio/Video cables as shown.
If your TV does not have AV inputs, you will need to buy an RF
modulator (not provided). Please refer to page 8 of the user
manual for more information.
2 Connect your existing antenna cable (from
satellite receiver) to “ANTENNA IN”.
3 Connect the provided RF coaxial cable as shown.
4 Connect the audio cables as shown.
5 Connect the unit’s AC power cable to a suitable
wall outlet.
6 Your unit is ready for use after the connections.
Please read page 12 to start using the unit.
1 Connect the included Video cable as shown.
If your TV does not have AV inputs, you will need to buy an RF
modulator (not provided). Please refer to page 8 of the user
manual for more information.
2 Connect your existing antenna cable (from cable
box) to “ANTENNA IN”.
3 Connect the provided RF coaxial cable as shown.
4 Connect the included audio cables as shown.
