Publication 20D-UM002C-EN-P - November 2003
Communicating with Devices on a DH-485 Link 10-3
Step 2: Configure the DH-485 port of the controller
3. On the Serial Port tab, specify the appropriate communication settings.
The grayed out settings are selections
that do not apply to a DH-485 network.

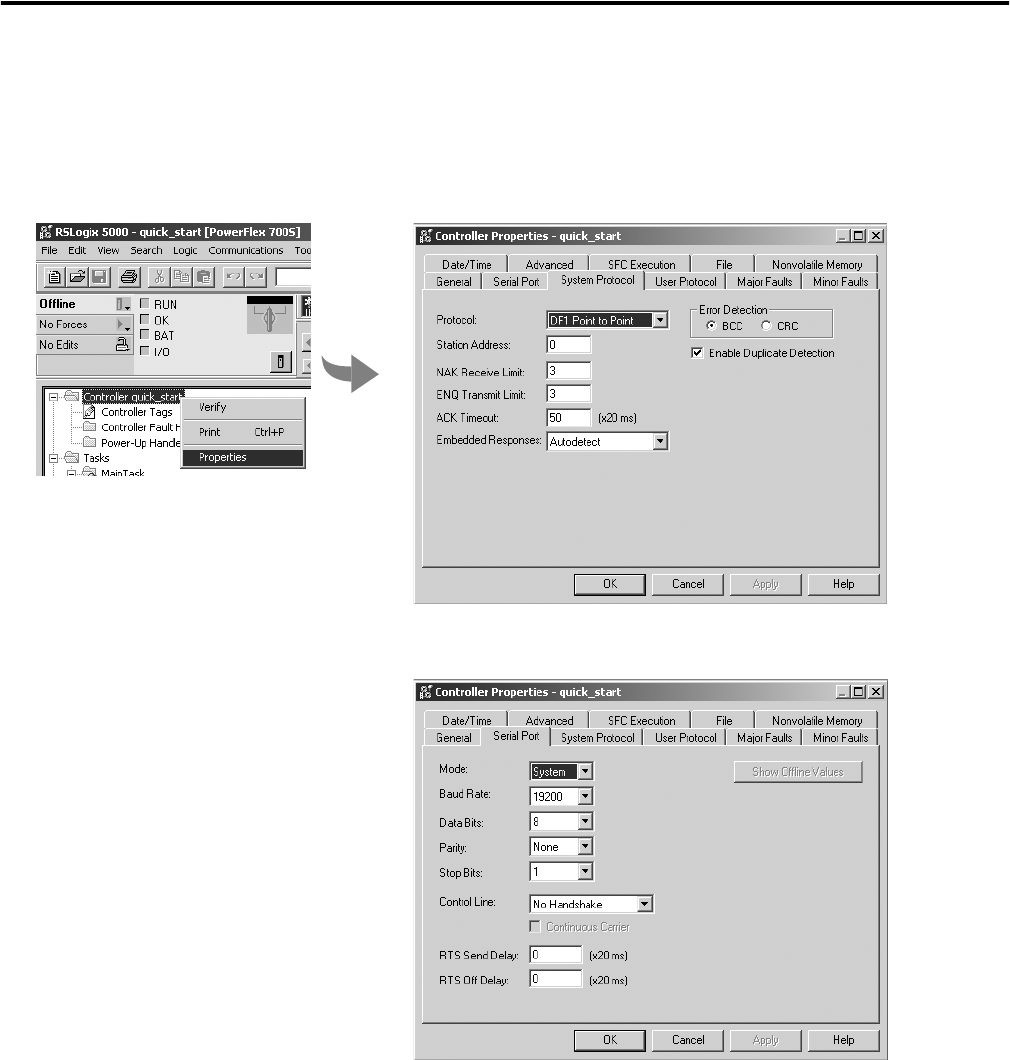

1. In RSLogix 5000 programming software, select the Controller folder. Right-click to select Properties.
