E22

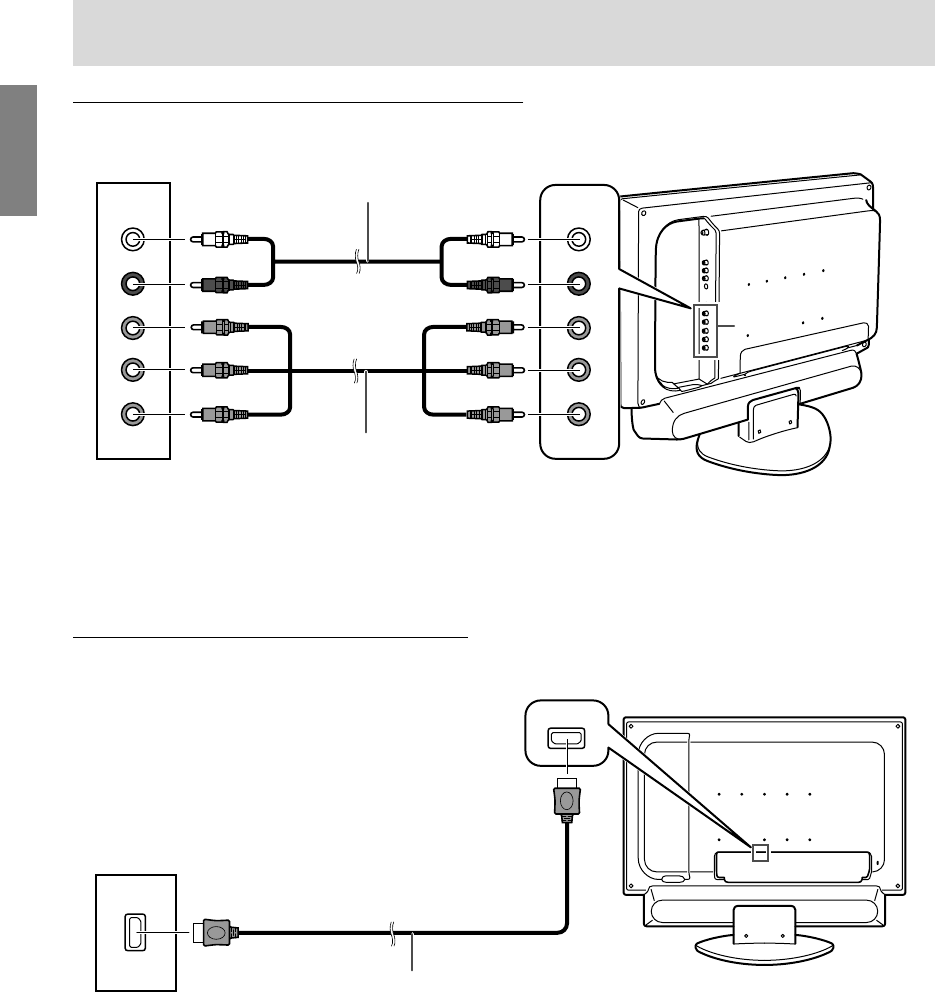

AV equipment with component output terminals
AUDIO-L
AUDIO-R
Y
P
b
Pr
AUDIO-L
AUDIO-R
Y
P
b
Pr
AV-IN 2
Note:
- When using the component input terminals, do not connect the cable to the video input terminal of
AV-IN 2.
AV equipment with HDMI output terminals
HDMI IN
HDMI
Note:
- If necessary, you can make adjustments for HDMI setup using the HDMI SETUP menu (HDMI mode).
(See pages E45 and E49 for information on using the menus.)
Rear of the TV
HDMI cable (commercially available)
Output terminals of
AV equipment
Connecting the TV to AV equipment
(White) (White)
(Red) (Red)
RCA pin cable (commercially available)
Component video cable
(commercially available)
(Green) (Green)
(Red) (Red)
(Blue) (Blue)
Right side of the TV
Output terminals of
AV equipment
