Sony KV-BZ21M81 Group B39 (GB, FR, PR, AR)_2-693-843-13 (1)
6
GB
1
R
Y
C
B
C
R
R
L
Y
R
L
C
B
C
R
R
L
(MONO)
L
R
(MONO)
L

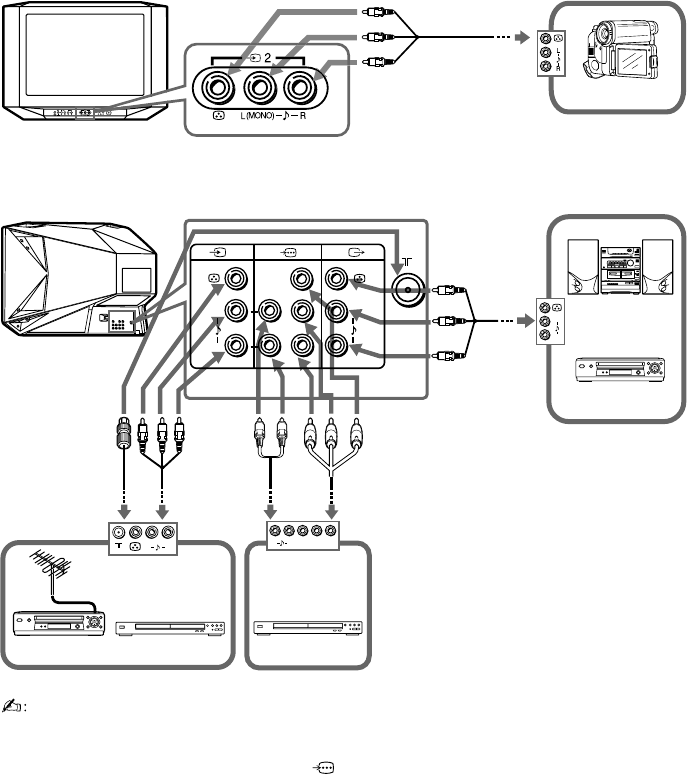

x Connecting optional components
You can connect a wide range of optional components to your TV. Connecting
cables are not supplied.
Connecting to the TV (front)
Connecting to the TV (rear)
Camcorder
Audio/Video
cable
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 13).
• If your DVD player can output interlace and progressive mode signals, select the
interlace output when connecting to (component video input) on your TV. Your TV
can receive either 525i/60Hz or 625i/50Hz interlace signals.
• The component video terminals on your DVD player are sometimes labeled Y/CB/CR,
Y/PB/PR, Y/Cb/Cr or Y/B-Y/R-Y.
• If you select “DVD” on your TV screen, the signal from the T (monitor output) jacks
will not be output properly. This does not indicate a malfunction.
Audio
cable
Audio/
Video
cable
Component
Video cable
Antenna
cable
VCR DVD Player
Audio
System
VCR
DVD Player
Audio/
Video cable
