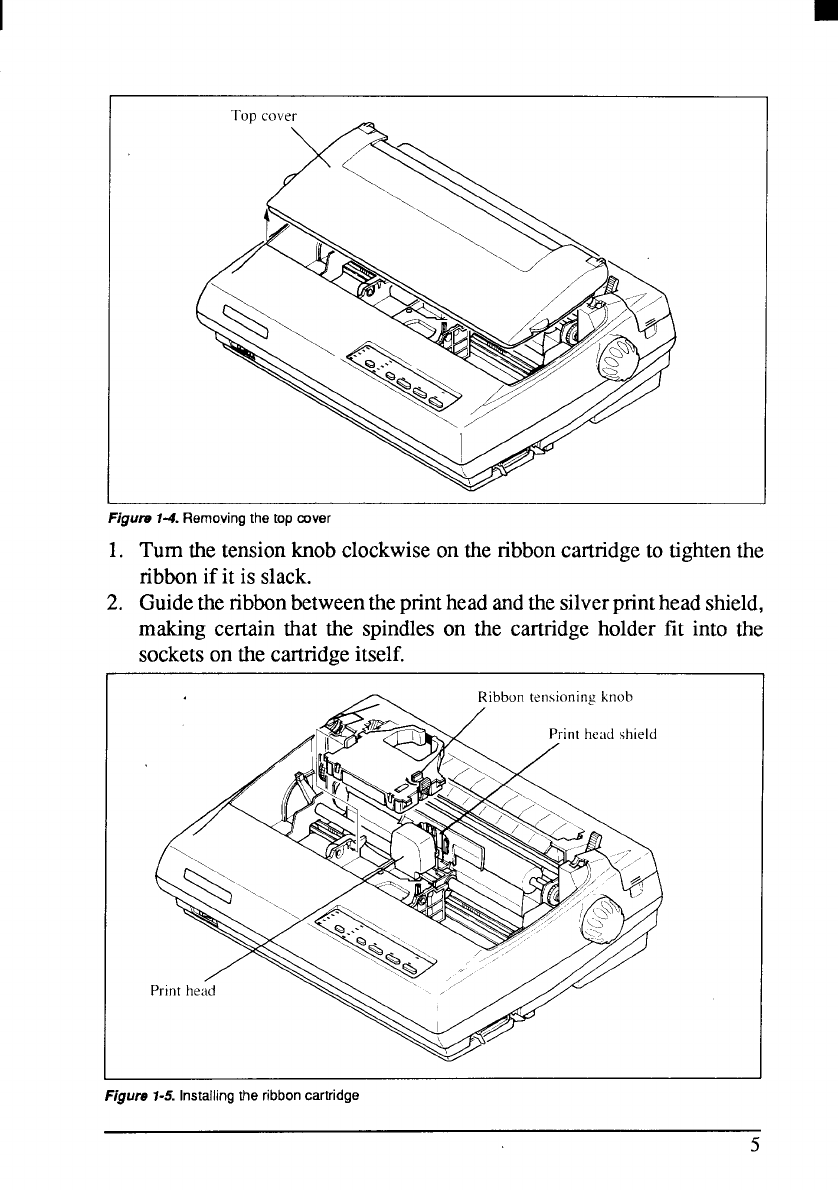

Flgum 74. Removing the top cover
1. Turnthe tensionknobclockwiseon the ribboncartridgeto tightenthe
ribbonif it is slack.
2. Guidethenbbonbetweenthepnnthead andthesilverprintheadshield,
making certain that the spindleson the cartridgeholder fit into the
socketson thecartridgeitself.
Figure 1-5. Installing the ribbon cartridge
5
