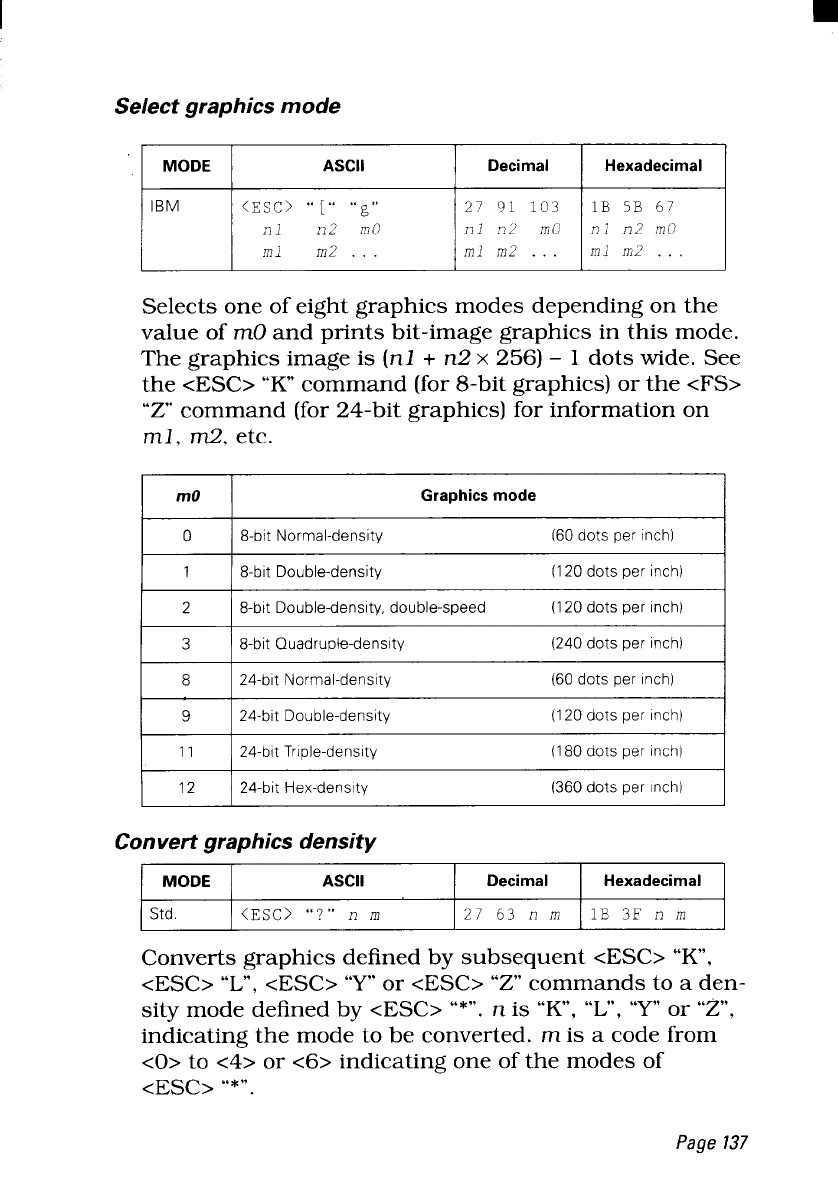

Selectgraphics mode
MODE
ASCII Decimal Hexadecimal
IBM
<~sc> “ [“ “ ~,,
27 91 103
IB 5B 67
,71 II 2
mO
111 ~1~
/m0 ?71
n2 m(?
ml m2 .
ml m2 .
ml m2
Selects one of eight graphics modes depending on the
value of mO and prints bit-image graphics in this mode.
The graphics image is (nl + n2 x 256) – 1 dots wide. See
the <ESC> “K” command (for 8-bit graphics) or the <FS>
“Z” command (for 24-bit graphics) for information on
ml, m2, etc.
mO
Graphicsmode
o
8-bit Normal-density
(60 dots per inch)
11
I
8-bit Double-density
(120 dots per inch)
I
2 8-bit Double-density, double-speed
(120 dots per inch)
3 8-bit Quadrupledensity
(240 dots per inch)
18
I 24-bit Normal-density
(6Odots per inch)
I
9
24-bit Double-density
(120 dots per inch)
11 24-bit Triple-density
(180 dots per inch)
12 24-bit Hex-density
(360 dots per inch)
Convert graphics density
MODE
ASCII Decimal Hexadecimal
Std.
<ESC> “ ?“
n m
27 63 n m
IB 3F n m
Converts graphics defined by subsequent <ESC> “K”,
<ESC> “L”, <ESC> “Y” or <ESC> “Z” commands to a den-
sity mode defined by <ESC> “*”. n is “K”, “L”, “Y” or “2”,
indicating the mode to be converted. m is a code from
<O>to <4> or <6> indicating one of the modes of
<ESC> “*”.
Page137
