TASCAM IF-FW/DM Owner's Manual 9
Setup
DM-3200
The IF-FW/DM’s mixer inputs must be
configured in banks of 8 in the CH1-16 IN
and CH17-24 IN layer select of the mixer’s
Routing screen.
For 24 channel operation:
• Set INPUT CH1-8 to A:SLOT1,1-8
• Set INPUT CH9-16 to B:SLOT1, 9-16
• Set INPUT CH17-24 to A:SLOT1, 17-24
DM-24

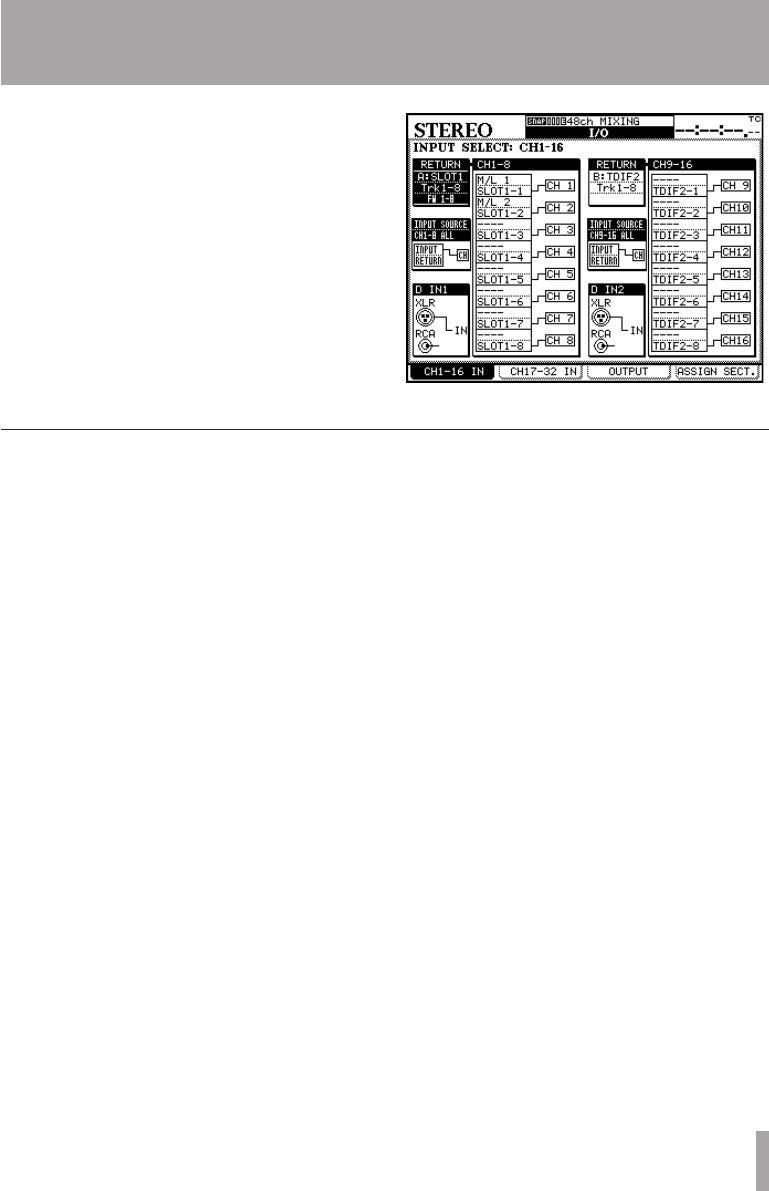

The IF-FW/DM’s mixer inputs must be con-
figured in banks of 8 in the CH1-16 IN and
CH17-24 IN tabs of the mixer’s I/O screen.
For 24 channel operation:
• Set RETURN CH1-8 to A:SLOT1,
Trk1-8, FW 1-8
• Set RETURN CH9-16 to B:SLOT1,
Trk9-16, FW 9-16
• Set RETURN CH17-24 to A:SLOT1,
Trk17-24, FW 17-24
Set the INPUT SOURCE to RETURN
Mixer Inputs
DM-24
By default, the DM-24 duplicates busses 1 -
8 on IF-FW/DM mixer outputs 1 - 8, 9 - 16,
and 17 - 24.
Also available are the Direct Outputs from
channels 1 - 16 on the DM-24. By default,
those appear on IF-FW/DM mixer outputs 1
- 16.
These routing settings can be changed in the
OUTPUT tab of the DM-24’s I/O screen.
