Mounting

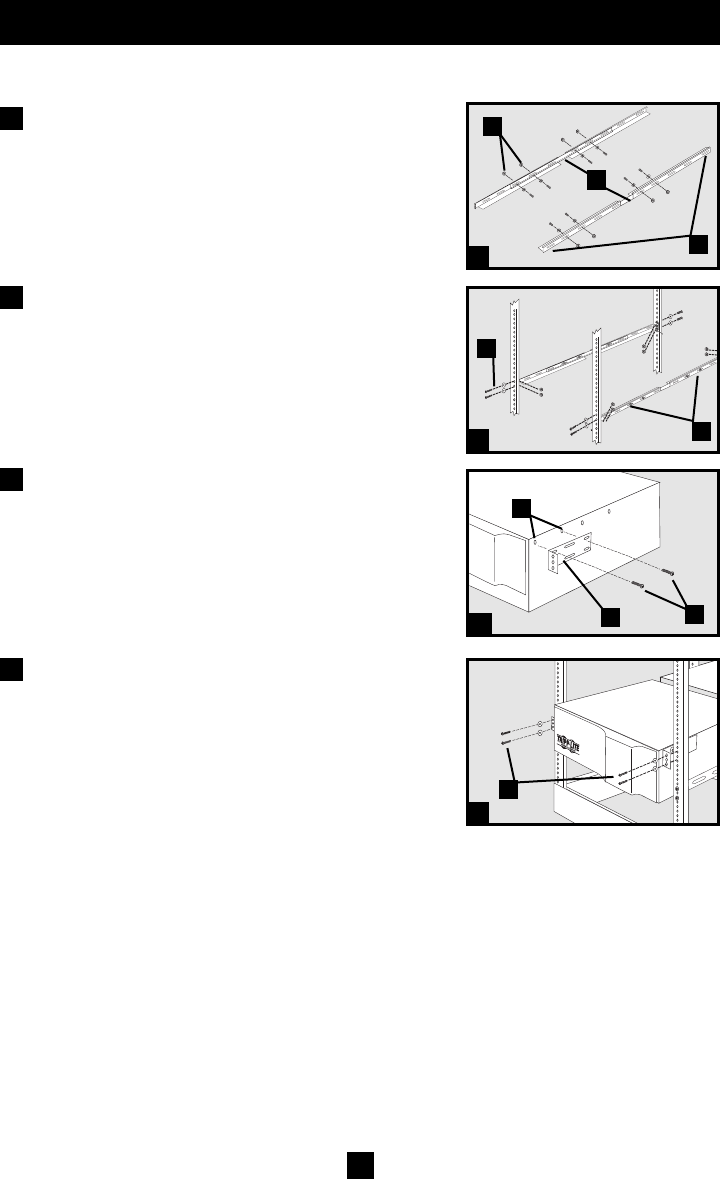

Back-to-Back Installation
Connect the shelved sections from two UPSRMRII
kits (A) to the unshelved sections (B) using the included
screws and nuts (C). Note: Two unshelved sections
will be left over. Leave the screws slightly loose so
that the shelves can be adjusted in the next step.
Adjust each shelf to fit your rack, then mount them in
the lowest available space of your rack with the
screws, nuts and washers provided (D). Note that the
support ledges should face inward. Tighten the screws
that connect the shelf segments (C).
Attach mounting ears (E) to the front mounting holes of
your equipment (F) using the screws provided (G). The
ears should face forward.
Using an assistant if necessary, lift your equipment
and slide it onto the mounting shelves. Attach your
equipment to the rack by passing the screws, nuts and
washers provided (H) through its mounting ears and
into the rack rails.
D
C
F
E
H
G
C
A
B
1
2
3
4
1
2
3
4
