LOCATING STOVE continued…

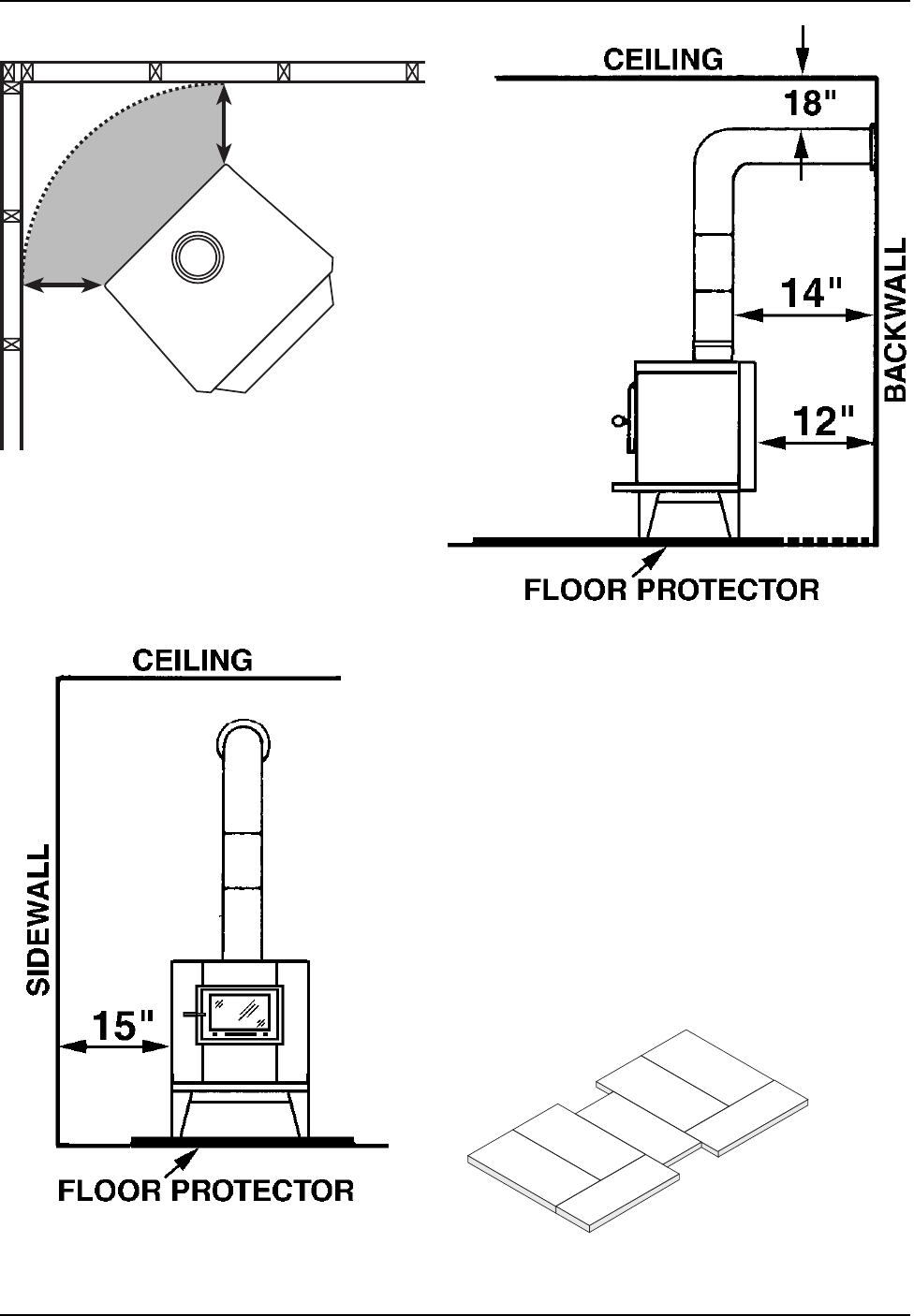

Fig. 3a – Front View
Minimum Clearance Dimensions
from Combustible Surfaces
Fig. 3b – Side View
Minimum Clearance Dimensions
from Combustible Surfaces
Fig. 2 – Top View
Minimum Corner Clearances
from Combustible Surfaces
12"
12"
CORNER CLEARANCES
FIREBRICK ASSEMBLY
Firebrick extends the life of your stove and
radiates heat more evenly. Check to see that all
firebricks are in their correct positions and have
not become misaligned during shipping or assem-
bly. If removed for ease of locating stove, firebrick
must be replaced before firing. See diagrams, fig.
4a – 4c, for proper positioning.
CAUTION: NEVER OPERATE STOVE WITH
MISSING OR CRACKED FIRE BRICKS!
Fig.4a– Step 1, Bottom Firebrick Installation
A A
C
B
A
A
B
Four (4) A-Size
Two (2) B-Size
One (1) C-Size
