FORM 201.24-EG1
31
YORK INTERNATIONAL
Sound Data
Sound Pressure Levels (SPL), dB re 20 microPa in
accordance with ARI Standard 575-94
Note: All ‘A’ weighted sound pressure data ± 3 dBA
MODEL
63 125 250 500 1000 2000 4000 8000
Weighted
dBA
YCWS0100SC 76 72 71.5 76 75 73 64 62 79
YCWS0120SC 76 72 72 77 76 73 64 62 80
YCWS0140SC 76 72 72.5 78 77 74 65 62 81
YCWS0180SC 76 73 73 79 78.5 75 65 62 82
YCWS0200SC 76 73 73.5 80 79.5 76 66 62 83
YCWS0220SC 76 74 74 81 80.5 77 66.5 62 84
YCWS0240SC 76 74 75 82 81.5 78 67 62 85
Octave Band Hz
Isolator Details (Cont.)
TYPE & SIZE
MAX LOAD DEFL.
kg lbs. mm in
AWMR-2-530 1043 2300 51 2
AWMR-2-552 1724 3800 51 2
SEISMIC ISOLATORS
ABCDEFGHI JKLMN/X
AWMR-2
381mm 152mm 76mm
16
19mm 191mm 95mm 13mm 241mm 17mm 368mm 184mm 432mm
19mm
50-5XX 11NC 16mm
AWMR DIMENSIONS
A B C D E F G H I J K L M N/X
AWMR-2
15” 6” 3”
16
1” 7.5” 3-3/4” 1/2” 9” 5/8” 14.5” 7-1/4” 17.25”
3/8”
50-5XX 11NC 5/8”

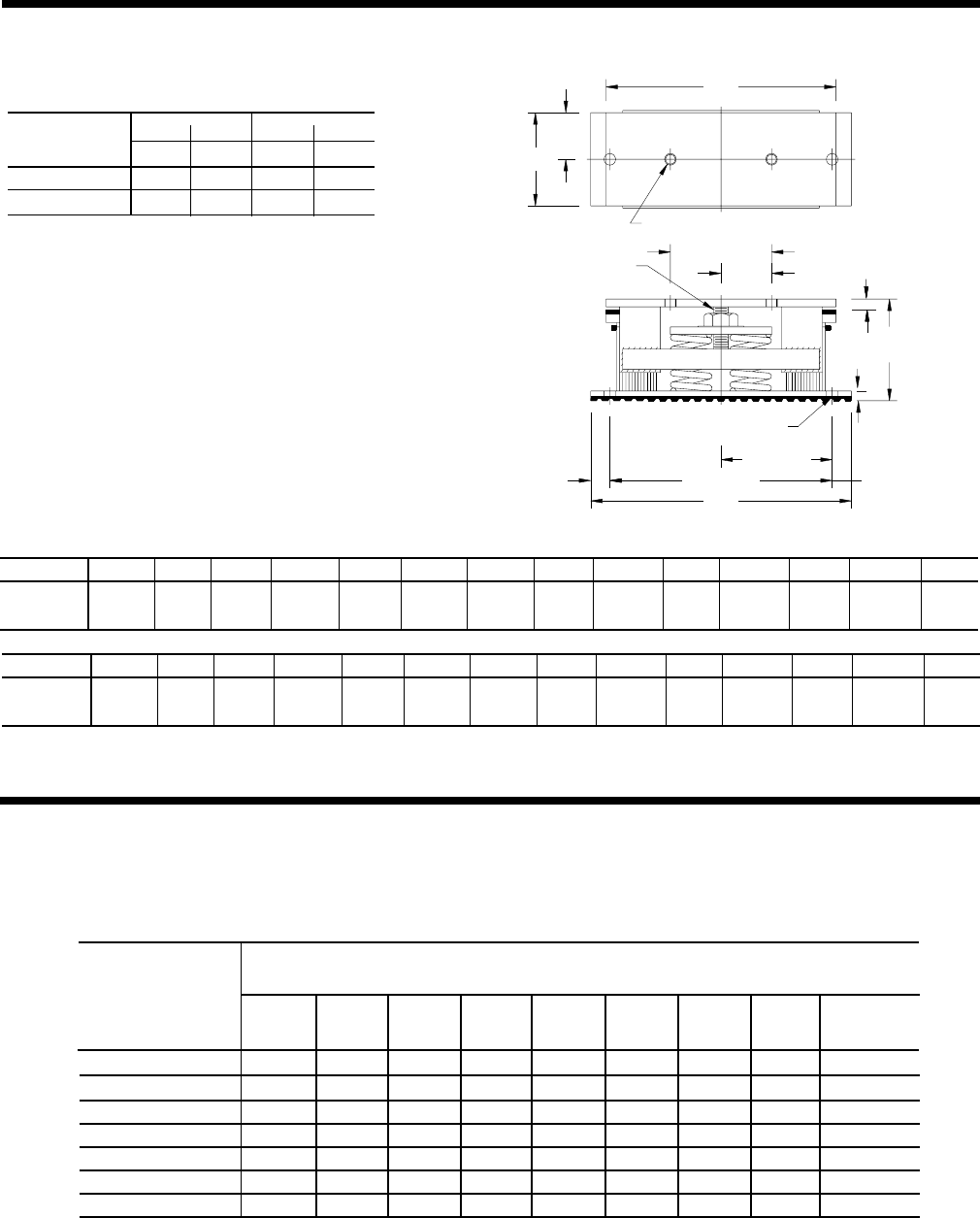

SEISMIC ISOLATOR DETAILS
E
H
J
N-X MNTG. HOLES
D
ADJ. BOL
T
A
I
C-C FDTN.
BOL
TS
C
B
F
G
M
K
L
