Manual 2100-422
Page 8
Power Wires:
Black (HOT)
White (NEUTRAL)
Green (GROUND)
Control panel
(junction box
in FH units)
Left side
oil line
entrance
Left side oil
line entrance
for opt. air boot
Left side
low voltage
(thermostat)
entrance
Left side
high voltage
(unit power)
entrance
Right side
low voltage
(thermostat)
entrance
Shut off switch
(if not fused,
power line must
include fuse or
circuit breaker)
To power
source
To thermostat
and optional
A/C unit
Air Boot
knockout
(optional)
Inspection
door
TYPICAL UNIT
SETUP
(FLF UNIT SHOWN)
Right side
oil line
entrance
Right side
high voltage
(unit power)
entrance
Oil line
(see burner
pump inst. for
hookup info.)
MIS-1836
ALL WIRING MUST
CONFORM TO THE
NATIONAL ELECTRIC
CODE AND ALL LOCAL
CODES.
WARNING
!

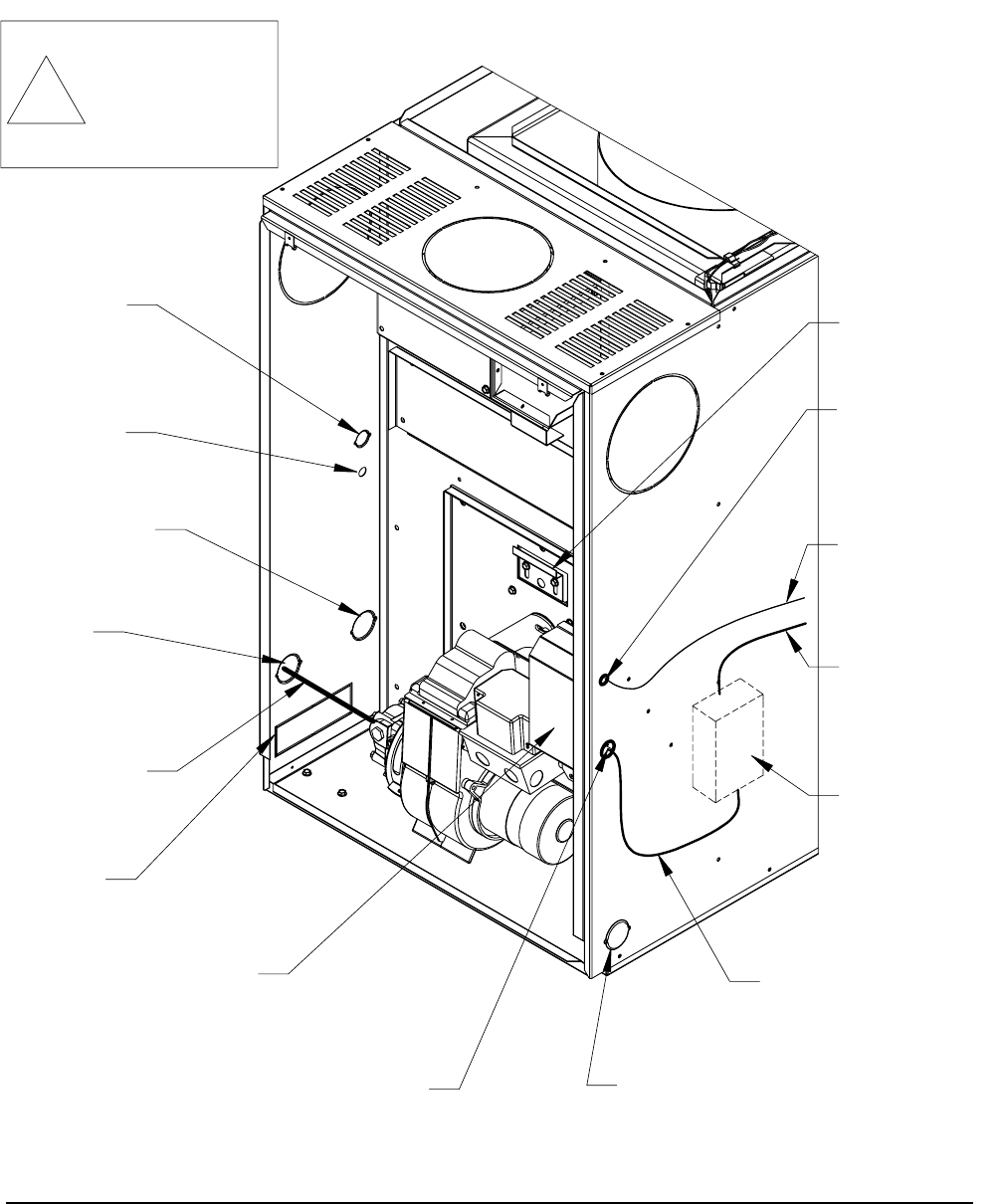

FIGURE 4
TYPICAL UNIT SETUP
FLF UNIT SHOWN
