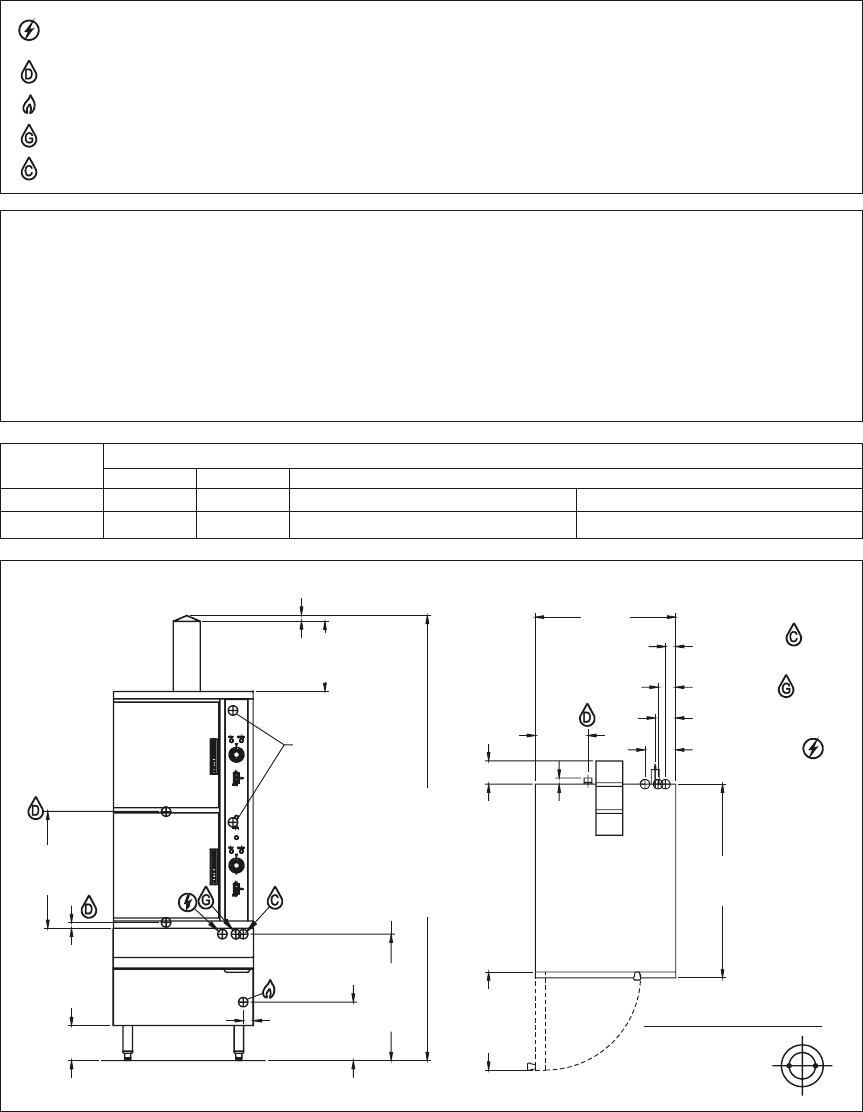

SERVICE CONNECTIONS – SC-7G and SC-10G
1 [25]
12 [305]
6 [152]
1 [25]
20 [508]
10 [254]
21.63 [549]
76.25 [1937] SC-7G
76.13 [1934] SC-10G
23.75 [603]
12 [305]
SC-7G
SC-10G
SAFETY RELIEF
VALVE
1.75 [44]
SC-7G
SC-10G
4 [102]
9 [229]
33 [838]
24 [610]
3.50 [89]
5.25 [133] SC-10G
1.75 [44] SC-10G
3 [76] SC-10G
6.25 [159] SC-7G
4 [102] SC-7G
2.75 [70] SC-7G
16.75 [425]
1.13 [29]
REAR FLANGED FOOT DETAIL
7/16" [11mm] HOLES
ON 2.5 [63] B.C.
2 EQUALLY SPACED
Ø
DIMENSIONS ARE IN INCHES [MM]
Unless otherwise specified, Field Wire Electrical Connection to be 120 Volts, 60 Hertz single phase withgrounding wire. Furnished with 6 foot cord
with 3 prong plug. Maximum amps 4.0.
DRAIN: 1"IPS piped to open floor drain. No Solid Connection. 24" length before open air gap opening. (No bends or elbows)
GAS CONNECTION: 3/4"IPS supply line required.
GENERATOR WATER: 3/8" O.D. tubing at 25-50 PSI(170-345 kPa)
CONDENSING WATER: 3/8" O.D. tubing at 25-50 PSI(170-345 kPa)
Water quality is the major factor affecting the performance of your appliance. If you are unsure of water quality, consult a
local water treatment specialist and have the water analyzed. Your water supply must be within these general guidelines:
Water which fails to meet these standards should be treated by installation of water conditioner.
FAILURE OR MALFUNCTION OF THIS APPLIANCE DUE TO POOR WATER QUALITY IS NOT COVERED UNDER WARRANTY.
Total dissolved solids
Total alkalinity
Silica
Chlorine
pH Factor 7.0-8.5
WATER QUALITY STATEMENT
Less than 60 PPM
Less than 20 PPM
Less than 13 PPM
Less than 1.5 PPM
90,000
SC-10G
26.4
Natural - min. 6"(152mm) Propane - min. 11"(279mm)
GAS SUPPLY
SUPPLY PIPE PRESSURE (W.C.)BTU/HR.
90,000
MODEL
SC-7G
kW/HR.
26.4
Natural - min. 6"(152mm) Propane - min. 11"(279mm)
