Page 7
INITIAL SET-UP
CAUTION – The brewer must be disconnected from the power
source throughout the initial setup, except when specified
in the instructions.
1. Insert an empty funnel into the funnel rails of one of the
brew stations.
2. Place an empty server under the funnel.
3. Connect the brewer to the power source. Make sure the
corresponding ON/OFF switch is ON (LED will be lit).
4. Water will flow into the tank and stop when the tank is filled
to its capacity. Display will show PLEASE WAIT...TANK
FILLING until tank is filled with water.
5. Wait approximately twenty-five minutes for the water in the
tank to heat to the proper temperature. Display will show
READY TO BREW...WATER TEMP: 205° when tank is at
operating temperature. Some water may drip from the fun-
nels during this time; this is due to expansion and should
not occur thereafter.

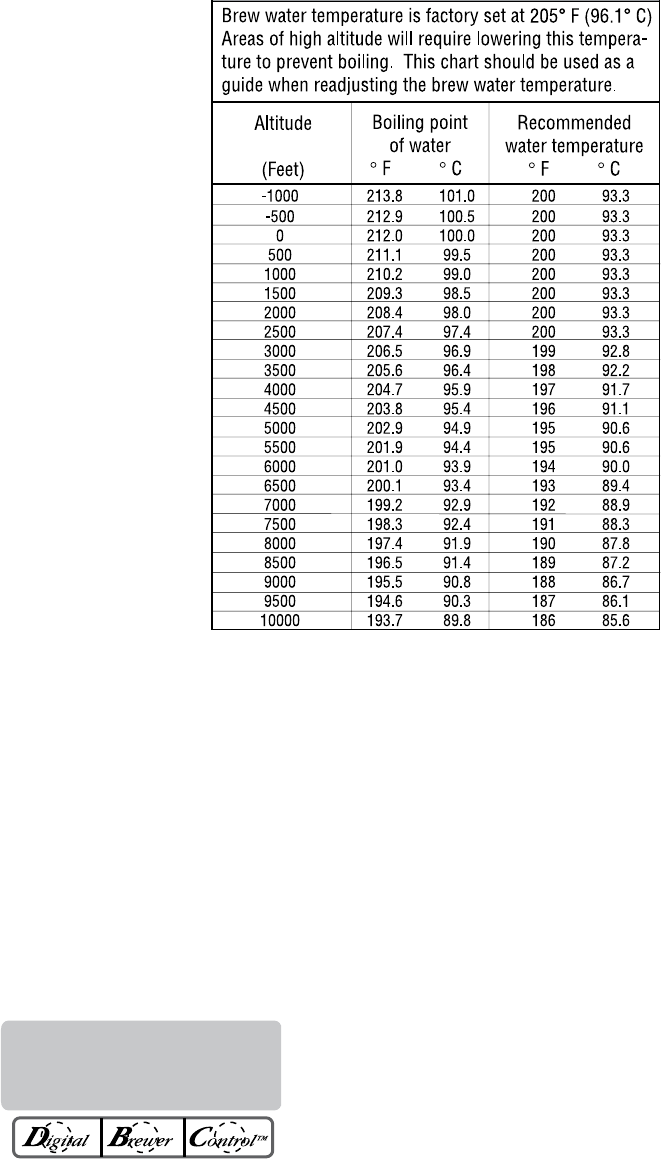

NOTE: Brew water temperature is factory set at 205° F (96.1°
C). Refer to TEMPERATURE SELECTION below should the
water temperature need to be increased or decreased. When
brew water temperature is changed, ready temperature will
need to be increased or decreased also.
6. Place a small vessel beneath the faucet and open the faucet
handle. Release it when you hear the tank refilling.
7. Water volumes and flow settings have been preset at the factory. Refer to adjustments for the Set Brew
Volumes or Calibrate Flow section of the Programming Manual on the Bunn-O-Matic website, at www.bunn.
com should the volume need to be increased or decreased.
8. The brewer is now ready for use in accordance with the instructions for Coffee Brewing.
440119 010412
TEMPERATURE SELECTION
SET TEMP - Range: 185˚F (85˚C) to 205˚F (96˚C)
This function allows the operator to set the brew water temperature in the tank. It also sets the hot water
faucet dispense temperature.
Procedure for setting the Set Temp:
1. Press and hold the right hidden switch until the display reads SET LANGUAGE. Press and release the right
hidden switch until the display reads SET TEMP: XXX°.
2. Using (-) and (+), adjust the brew and faucet temperature.
3. When finished, press DONE to save the new setting and to advance to the next function screen, READY
TEMP: XXX°. Press and release the ON/OFF switch (either on DUAL brewers) to exit programming and return
to the MAIN SCREEN.
SET TEMP: XXX°
(-) DONE (+)
