Description of the appliance
• The cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
• The hood is supplied as an extractor unit and
can also be used with a recirculation mode by
fitting a charcoal filter.
• You will need an original charcoal filter for this
function (Available from your local Service
Force Centre).
Attention! Certain models are already equipped
with charcoal filters. The charcoal filters are
attached to one side of the polystyrene protection
panels in the packaging and should be fitted into
place prior to using the cooker hood in the
recirculation version.
Extraction mode
• In this mode fumes are extracted to the outside
via a hose connected to the coupling ring A.

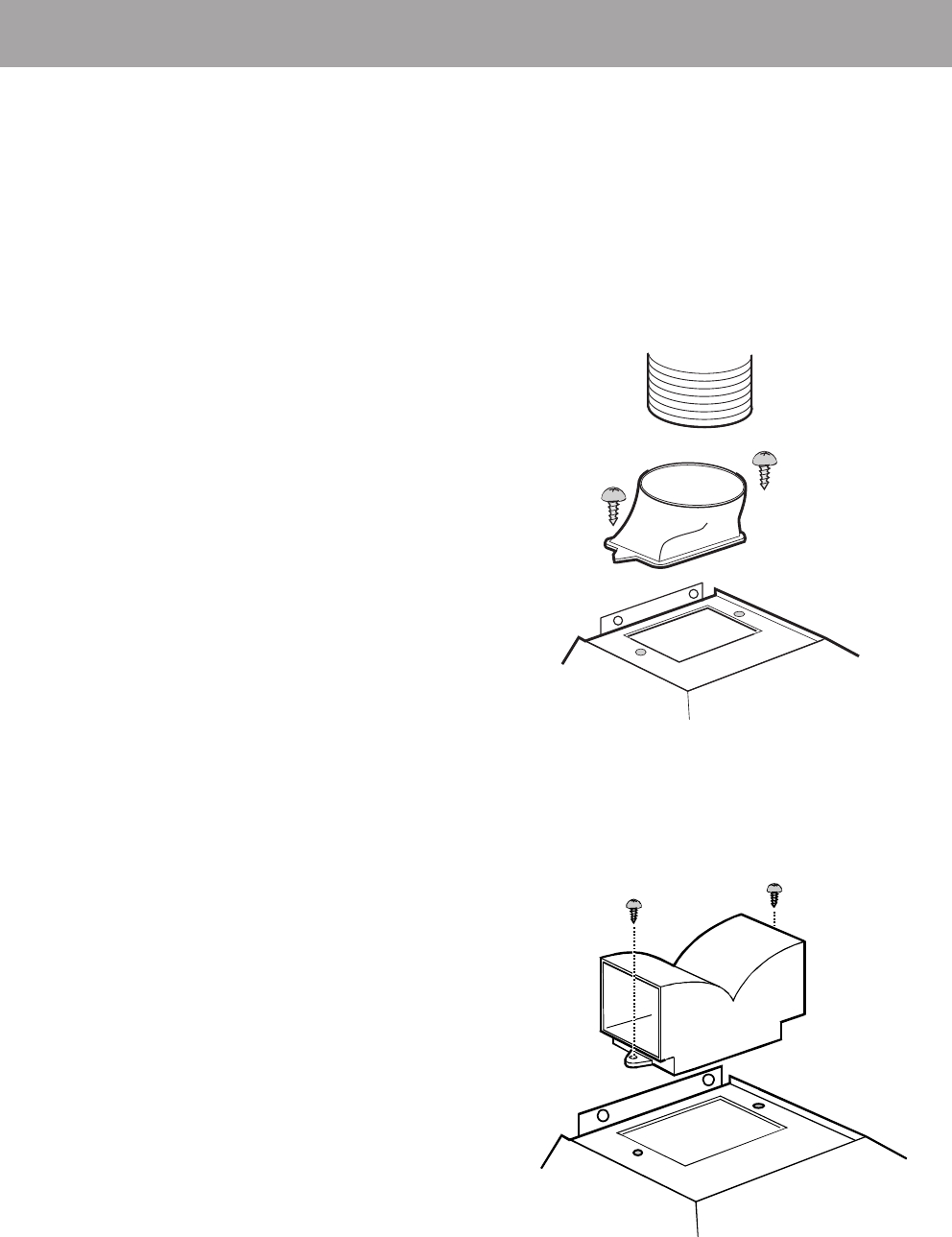

Fig. 1.
• In order to obtain the best performance the hose
should have a diameter equal to the outlet hole.
Fig. 1
Recirculation mode
• The air is filtered through a charcoal filter and
returned to the kitchen.
• You will need an original charcoal filter for the
recirculation mode. (See Special Accessories).
• Fix the deflector using 2 screws Ø 3,5x6.5 mm.
Fig. 2.
Fig. 2
A
