Electrolux EFC 9440 Ventilation Hood User Manual



h
i
g
g
h
g
g
Charcoal filter
The charcoal filter should only be used if you
want to use the hood in the recirculation
function.
To do this you will need an original charcoal
filter (available from your local Service Force
Centre).
Cleaning/replacing the charcoal filter
Unlike other charcoal filters, the LONGLIFE
charcoal filter can be cleaned and reactivated.
At normal use the filter should be cleaned every
second month (when using the hood 2,5 hours
per day, in avarage). The best way to clean the
filter is in the dishwasher. Use normal detergent
and choose the highest temperature (65º C).
Wash the filter separately so that no food parts
gets stuck on the filter and later causes bad
odours. To reactivate the charcoal, the filter
should be dried in an oven for 10 minutes with a
temperature of maximum 100º C.
After approximately three years of use, the
carbon filter should be replaced with a new, as
the odour reduction capacity will be reduced.

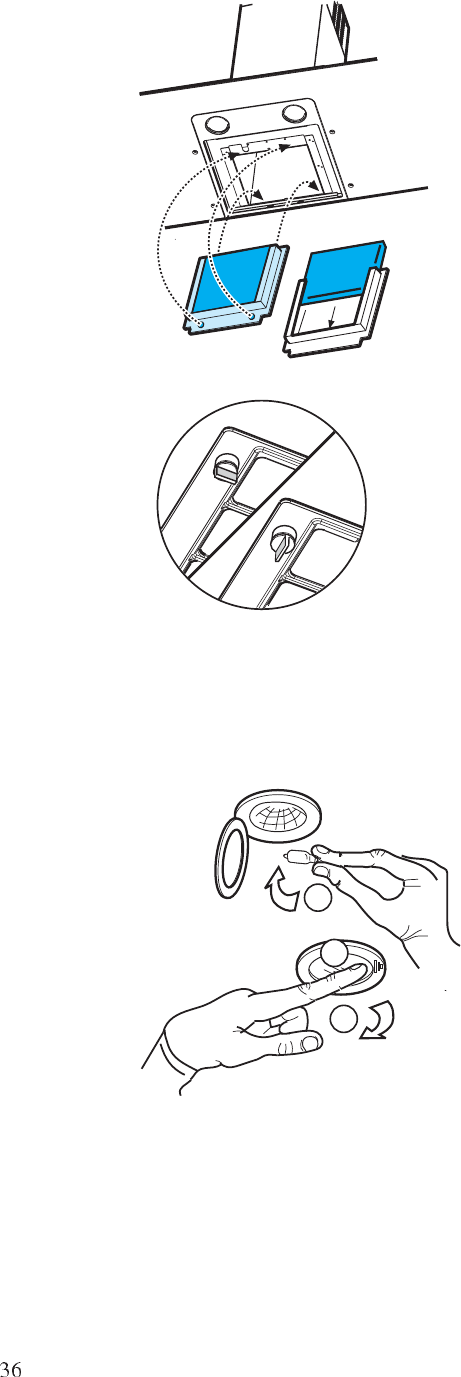

Fitting
Remove the frame i which supports the filter h
by turning 90° the two knobs g.
Insert the charcoal filter inside the frame and
put all parts back in their place. Fig. 4.
To remove proceed in the reverse order.
Always specify the hood model code number
and serial number when ordering replacement
filters. This information is shown on the
registration plate located on the inside of the
unit.
The charcoal filter can be ordered from your
local Service Force Centre.
Changing the light bulb - Fig. 5
Disconnect the cooker hood from the main
supply.
Press (1) the lamp cover (2) and open it.
Replace the old bulb with a new one of the
same type (3).
Close the lamp cover (4).
If the light does not come on, make sure the
bulb has been inserted correctly before
contacting your local Service Force Centre.
Fig. 4
Fig. 5
3
1
2
