18

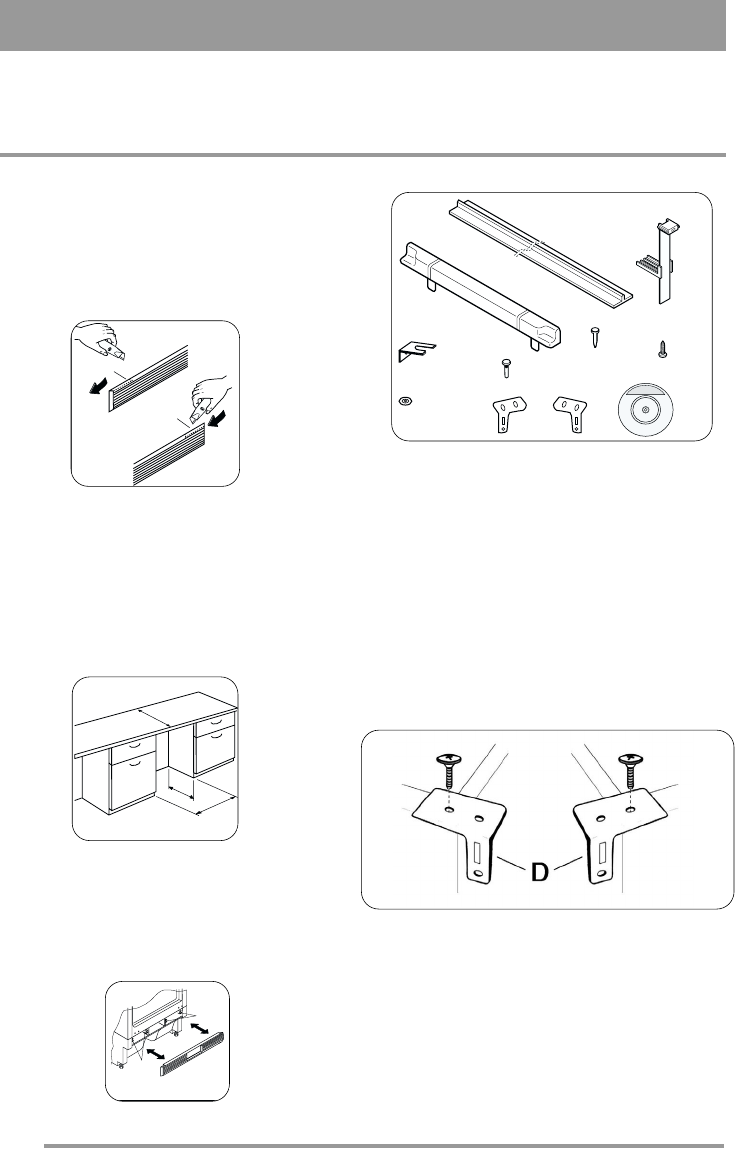

Building-in instructions
Before carrying out any work, remove the plug
from the power socket.
Grid preparation
Left door opening:
Remove the left side (A) of the grid cutting it
from the rear (see figure).
DO002/2
A
B
Building in the appliance under a
worktop
The dimensions of the recessed installation
area must correspond with those indicated in
the figure.
DO013
600
550
min.
600
Right door opening:
Remove the right side (B) of the grid cutting it
from the rear (see figure).
To position the grid on the appliance proceed as
follows:
Apply the grid to the base of the appliance by
pushing on to the clasps (a) until they click.
DO001
a
a
Installation kit
1. Two cabinet securing brackets are supplied
with the installation pack. They need to be
assembled onto the cabinet prior to cabinet
being pushed into the Kitchen aperture.
- To fit these brackets remove the two screws
at the top left and right hand front corners of
the cabinet.
- Position the two brackets as shown in the
figure and replace the two securing screws.
1xA
2xD
1xB
2xC
2xL
2xE
18xI
2xF
2xG
1xK
Left hand bracket
Right hand bracket
