21
8 mm
G
K
I
F
7. Refit the covering strip (A).
14
A
90°
115°
L
L

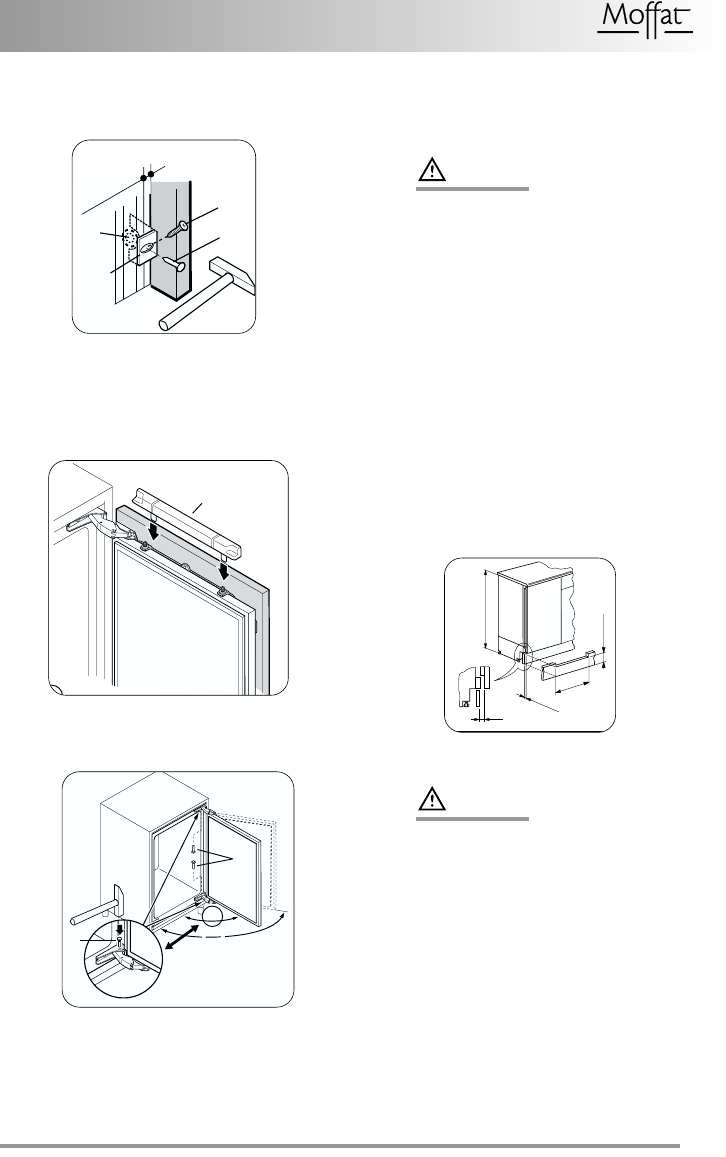

Fitting the plinth
Important
For the efficient operation of the
appliance, it is important that the
original ventilation grid is used.
• For an opening height dimension A=820 mm
and a plinth height dimension a=100 mm,
the plinth may be fitted without adjustments.
The same applies to an opening height
dimension B=870 mm and a plinth height
dimension b=150 mm.
• For plinth heights greater than a=100 mm,
b=150 mm, a cut should be made in the
plinth, 580 mm wide, in the centre of the
appliance position, leaving a remaining
height of a=100 mm, b=150 mm.
• Attach plinth to the kitchen units.
Important
The plinth must be positioned at a
minimun distance of 25 mm from the
door.
DO008
580
a = 100
b = 150
25 - 80
A = 820
B = 870
25
