Inca Pro 30 can be used with
custom hoods 30” wide and up.
Choose either a custom liner or
our ProLiner designed for 36"
wide installations. Liners create a
perfectly-sealed, non-combustible
finish for the underside of your
custom/wood hood.
The ProLiners are made up of two
sections: a larger, rear section
(pre-cut out for insertion of the
Inca Pro 30) and a front section for
a total adjustable depth between
21" and 25".
Consider the shape, size, and
weight of the Inca Pro 30 and Liner
to determine the configuration
of the custom/wood hood. See
RANGEHOOD DIMENSIONS AND
LINER DIMENSIONS on Page 4.

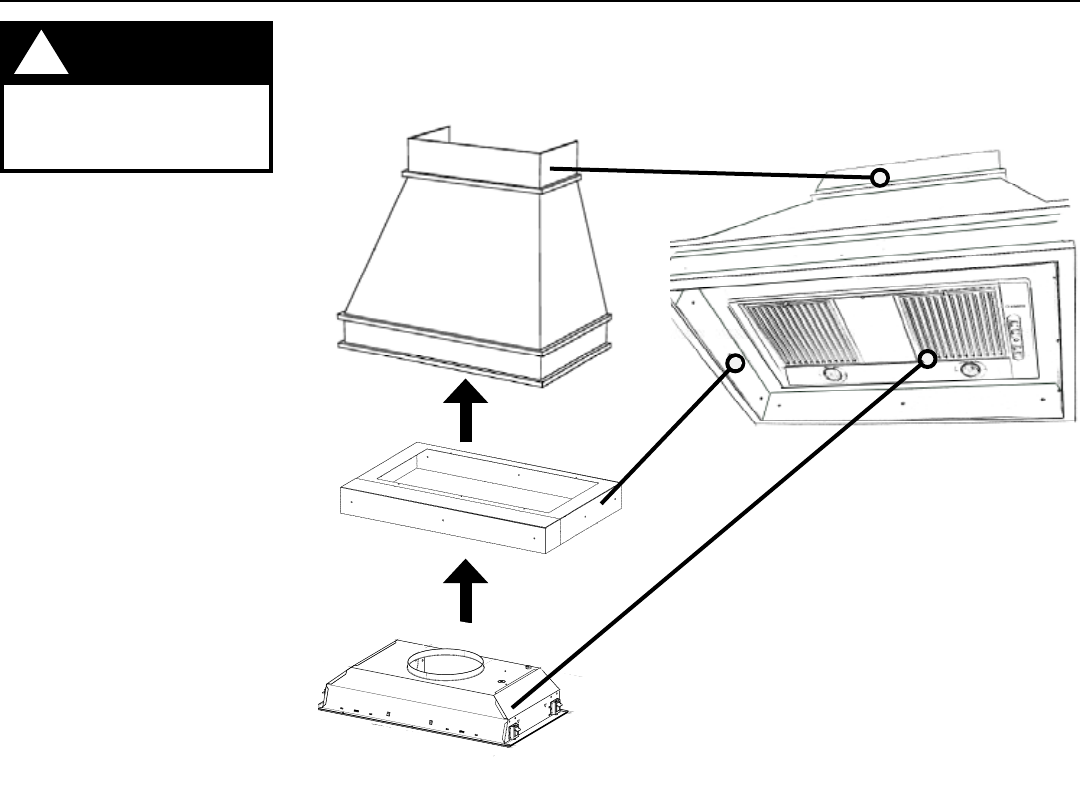

FOR INSTALLATIONS WITH LINERS
CUSTOM/WOOD
HOOD
PRO LINER
WARNING
!
When building a custom hood,
always follow all applicable
codes and standards.
TOOLS NEEDED FOR INSTALLATION
• Saber Saw or Jig Saw
• Drill
• 1 1/4" Wood Drill Bit
• Pliers
• Phillips Screwdriver
• Wire Stripper or Utility Knife
• Metal Snips
• Measuring Tape or Ruler
• Level
• Pencil
• Caulking Gun
• Duct Tape
PARTS SUPPLIED FOR INSTALLATION
• 1 Literature Package
PARTS NEEDED FOR INSTALLATION
• 2 Conduit Connectors
• Power Supply Cable
• Screws to Reinforce Atttachment
• Scews for Field Wiring Box
• All Metal Ductwork
RECOMMENDED ACCESSORIES AVAILABLE
• Remote Blower
900 CFM Blower - part # 630001732
1200 CFM Blower - part # 610000007
• Liners
Create a perfectly-sealed, non-combustible perimeter around the
Inca Pro 30. Depth adjustable from 21” - 25”.
ProLiner 36 Stainless - part # 620000301
• Remote Wall Control
Provides easy access at your nger tips to the rangehood light
and speed controls by allowing you to install the control panel
at another location of your choice - part # 620000542
1. The custom/wood hood must have a sturdy base (3/4" plywood recommended) to accomodate the cut-out for the Inca Pro 30. The
base must be recessed to accomodate the height of the Liner (see LINER DIMENSIONS on Page 4). The Liner attaches to the bottom
of the base using screws appropriate for the size and material of your custom/wood hood. The Inca Pro 30 inserts into the cut-out in
the Liner and base.
2. Position the rear section of the Liner so that it abuts the back edge of your custom/wood hood. Using a pen, trace the outline of the
pre-cut out. Remove the Liner and proceed to MAKE YOUR CUT-OUTS on Page 6. Install both sections of the Liner and proceed to
INSTALL THE RANGEHOOD on Page 7.
INCA PRO 30
