Version 10/05 - Page 7
INSTALL THE RANGEHOOD
1. Remove the rangehood from the carton and place on a flat sur-
face. Cover the surface to prevent accidental damage. Remove all
parts including the backdraft damper and literature package before
discarding the carton.

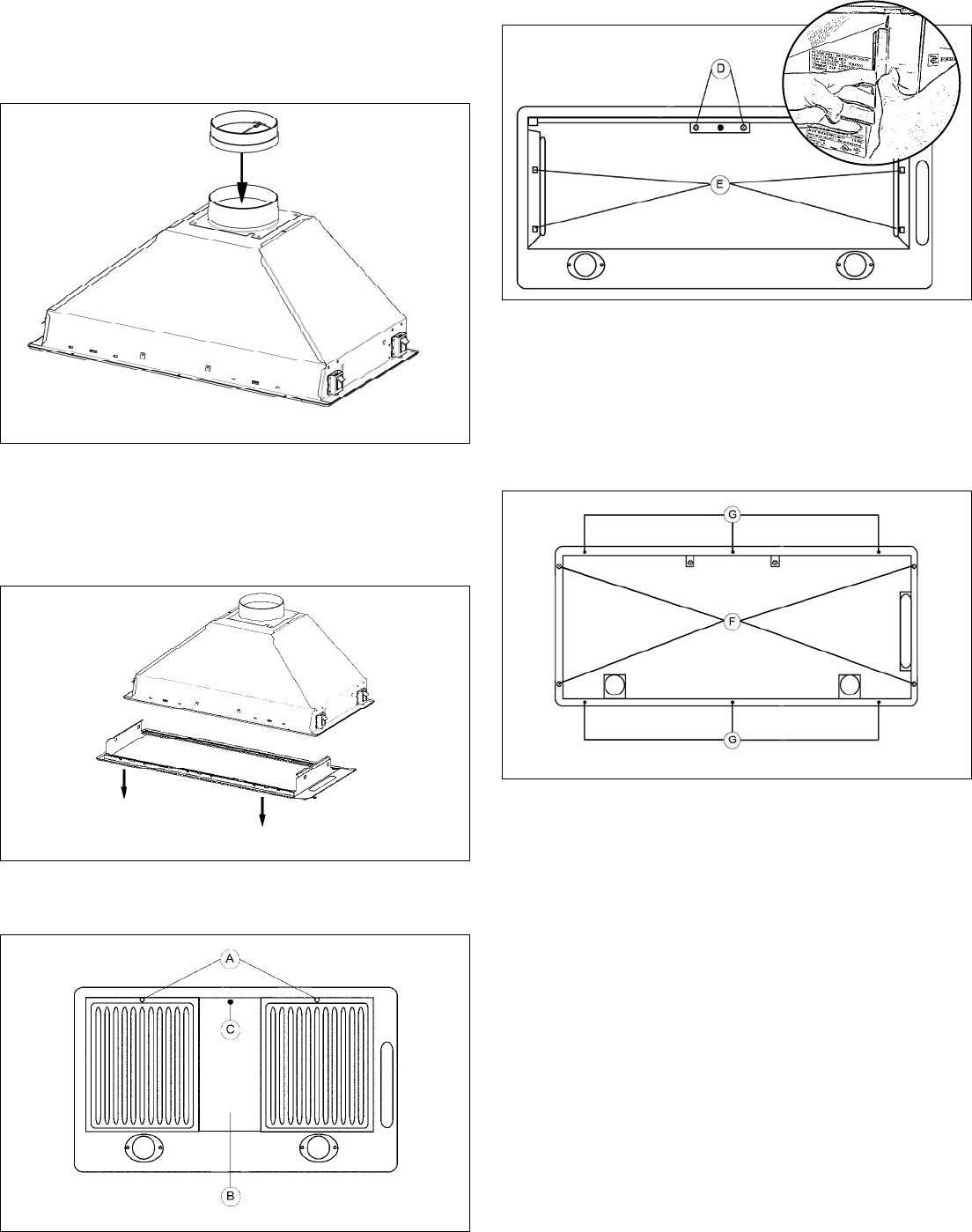

2. Place the round damper into the exhaust opening of the range-
hood and press down as indicated in FIGURE 5. Use duct tape to
secure if necessary.
5. Remove the two philips screws (D in FIGURE 8). Remove the entire
bottom of the rangehood by pushing your thumb into the side holes
(E in FIGURE 8) and pulling the sides free from the rangehood.
FIGURE 6
FIGURE 7
6. Fix the rangehood to the cabinet or custom hood using the four
spring loaded brackets, two on each side of the rangehood. Using
a philips screwdriver or drill, tighten the adjustment screws (F in
FIGURE 9) until the brackets adhere tightly to the surface.
7. IMPORTANT: There are 6 holes (G in FIGURE 9) for screws
(not provided) to reinforce the rangehood to your cabinet or custom
hood. Use screws appropriate for the size and type of materials of
your cabinet or custom hood.
FIGURE 8
4. Remove the grease filter divider (B in FIGURE 7) by first removing
the plastic screw cover (C in FIGURE 7), then removing the phillips
screw under the screw cover.
8. Replace the bottom of the rangehood and reinsert the grease filter
divider and grease filters.
9. Remove the cover from the field wiring compartment with a phillips
screwdriver. Feed the Power Supply Cable through the electrical
knockout. Connect the Power Supply Cable to the rangehood cable.
Attach the White lead of the power supply to the White lead of the
rangehood with a twist-on type wire connector. Attach the Black lead
of the power supply to the Black lead of the rangehood with a twist-on
type wire connector. Attach the Power Supply Cable grounding lead to
the green screw provided. Using the 4 holes provided screw the field
wiring compartment to the wall or cabinet as dictated by your Power
Supply Cable location (screws not provided). Replace the cover.
10. Connect the ductwork to the damper and seal all connections
with duct tape.
11. Turn the power supply on. Turn on the blower and light. If the
rangehood does not operate, check that the circuit breaker is not
tripped or the house fuse blown. If the unit still does not operate,
disconnect the power supply and check that the wiring connections
have been made properly.
FIGURE 9
3. The entire bottom of the rangehood must be removed for installation
as indicated in FIGURE 6. Remove the grease filters USING TWO
HANDS (one to hold the filter so that it doesn't fall on cooktop and
one to turn the knob (A in FIGURE 7) by pulling the knob out and
turning to the left.
FIGURE 5
